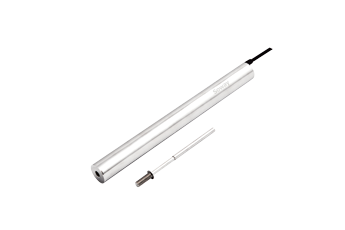

SDVG20 Series DC LVDT Displacement Sensor
The SDVG20 series DC LVDT displacement sensor is widely used in aerospace, machinery, construction, textile, iron and steel, hydropower, and other industries for precise displacement measurement. It features a stainless steel housing, high linearity, and compatibility with PLC systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Supply | 9–28VDCVDC |
| Output Signal Current | 4–20mA |
| Repeatability | ≤0.01%FS |
| Resolution | 16bitbit |
| Operating Temperature | -25°C–85°C |
| Temperature Coefficient | ≤0.01%/°C |
| Sensitivity Coefficient | 0.025%/°C |
Applications
Key Features
Datasheet
