HOCM Series Automotive Oil Paddle Sensor
The oil paddle sensor utilizes the principle of paddle flow measurement to monitor the dynamic state of oil. It can detect changes in oil flow rate and temperature, providing accurate data for automotive oil monitoring and control systems. It supports RS485/RS232 interfaces and Modbus protocol for easy integration with automotive terminals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Supply | 3.8-5.5VDCVDC |
| Pulse Output Signal | Integrated circuit |
| Load Current | 20.0mA(max) |
| Temperature Signal | T=(Vout-0.5)/0.01 |

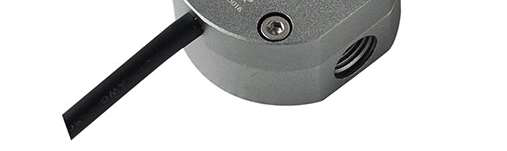

| Model HOCM01 材质[$$]Material | Aluminum alloy |
| Minimum Starting Flow | 0.03L/min |
| Flow Range | 15-600L/h |
| Weight Ratio | 1:40 |
| Flow Resolution | 2.94ml |
| Measurement Accuracy | ±1% |
| Maximum Pressure | 1MPa |
| Installation Position | Vertical recommended |
| Viscosity Range | Minimum 1cSt, Maximum 3000cSt |
| Explosion-proof Mark | ExiaIICT6 Ga |

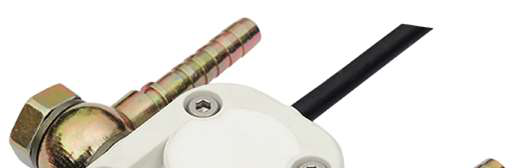

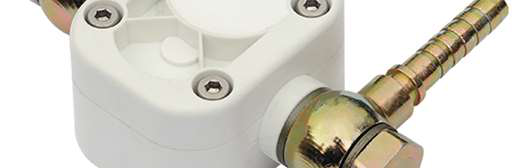

| Model HOCM02 材质[$$]Material | Plastic |
