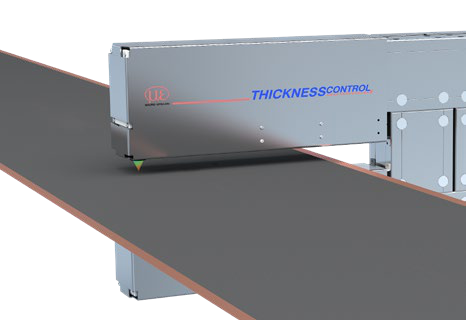

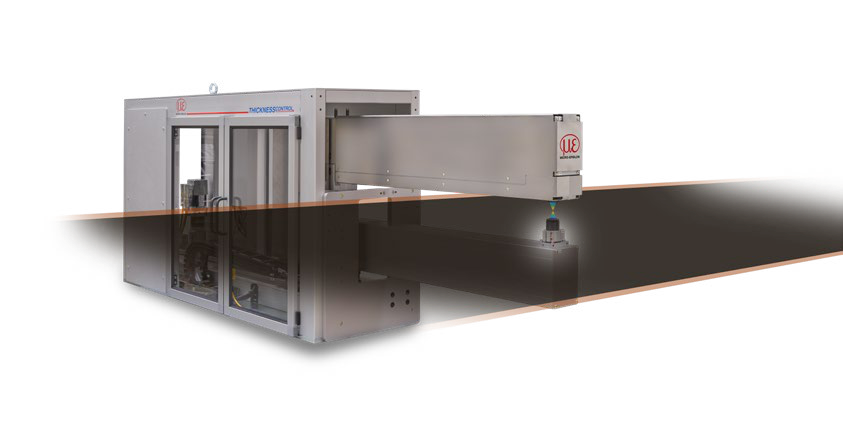

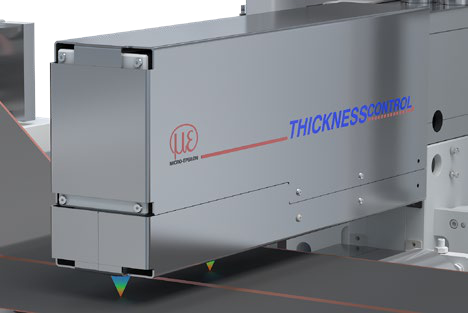

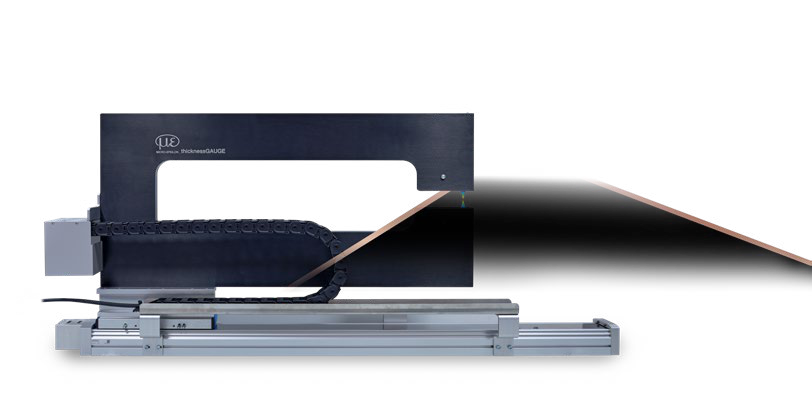

thicknessCONTROL BTG 8702 2C.C
High-precision inline thickness measurement system for coated anode and cathode films in lithium-ion battery production.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Width | 1000mm |
| Operating Range | 43mm |
| Measuring Range | 3.6mm |
| System Accuracy | ±0.3μm |
| Resolution | 15nm |
| Calibration | Automatic |
| Supply Voltage | 24V (230V) |
| Humidity | 5%RH...95%RH (non-condensing) |
| Protection Class | IP54 |
| Temperature range | Storage: -20°C...65°C; Operation: 5°C...35°C |

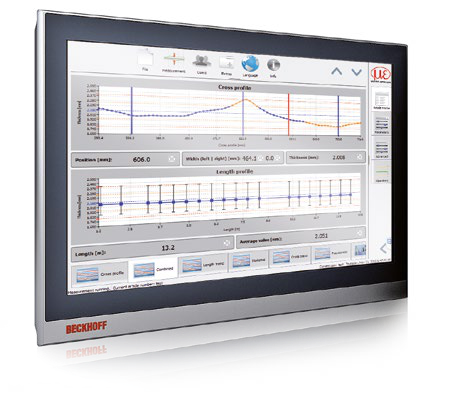

| Control and Display Elements | Rittal control cabinet incl. panel PC with thicknessCONTROL software |
| Special Features | Protective housing |
Applications
Key Features
Datasheet
