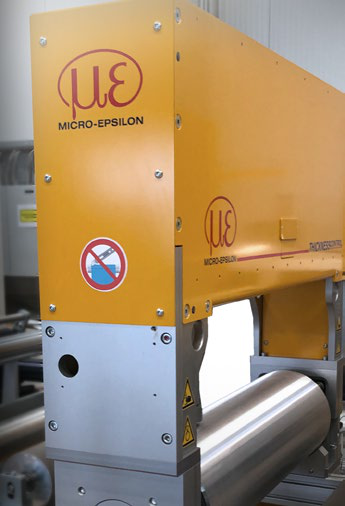

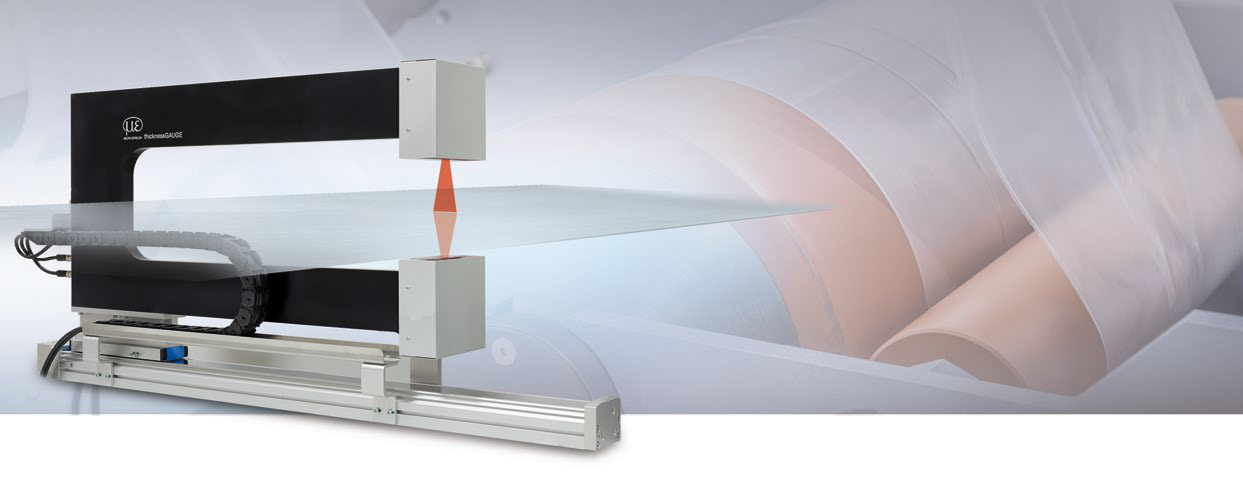

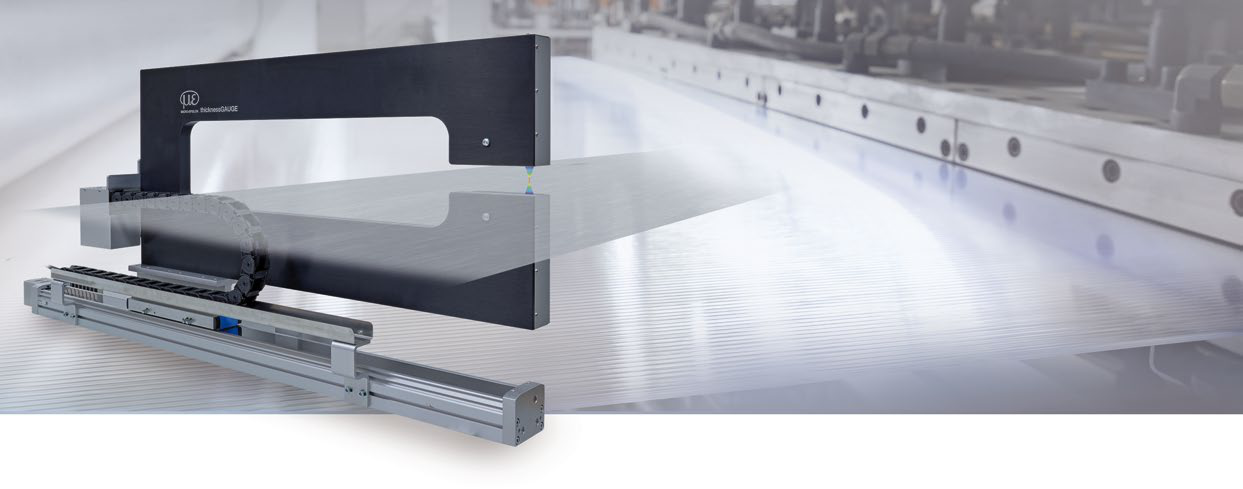

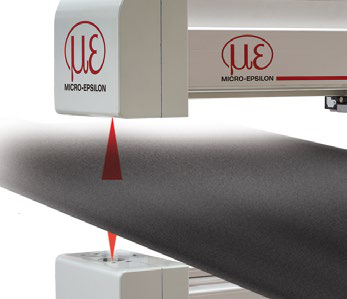

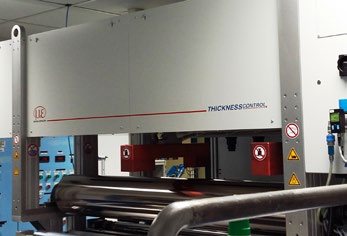

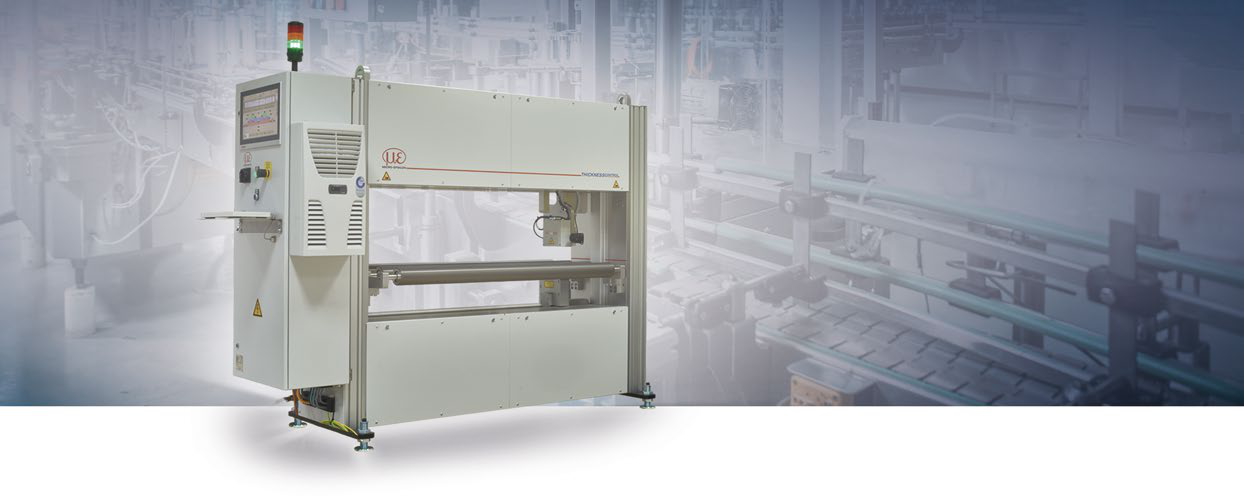

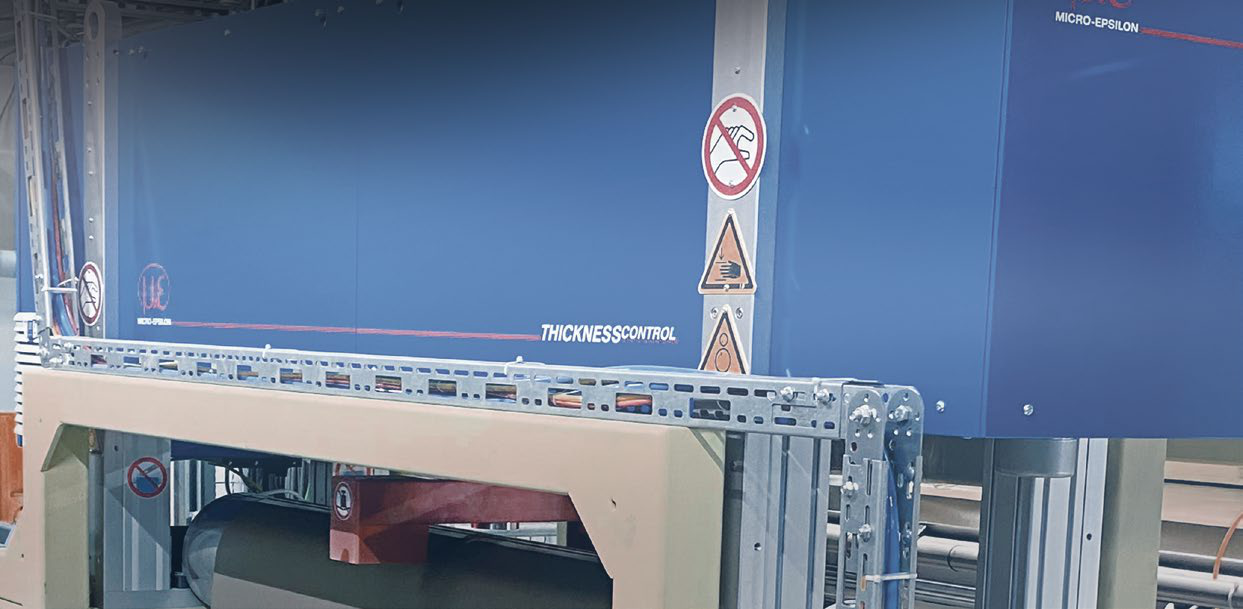

thicknessCONTROL STG 8102

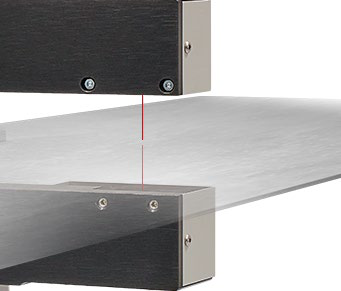

The thicknessCONTROL STG 8102 series is a modularly designed system for non-contact thickness measurement, offering flexibility, robustness, and high performance. It is ideal for measuring non-conductive materials with high precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Range (Thickness) | 3mm/10mm/30mm |
| Measuring Width | 250mm/500mm/1000mm |
| Resolution | 0.07μm/0.12μm/0.36μm |
| Accuracy | ±0.4μm/±0.7μm/±2.5μm |
| Repeatability | ±0.3μm/±0.5μm/±2μm |
| Material Temperature | up to 70°C |
Applications
Key Features
Datasheet
Supplier Information
