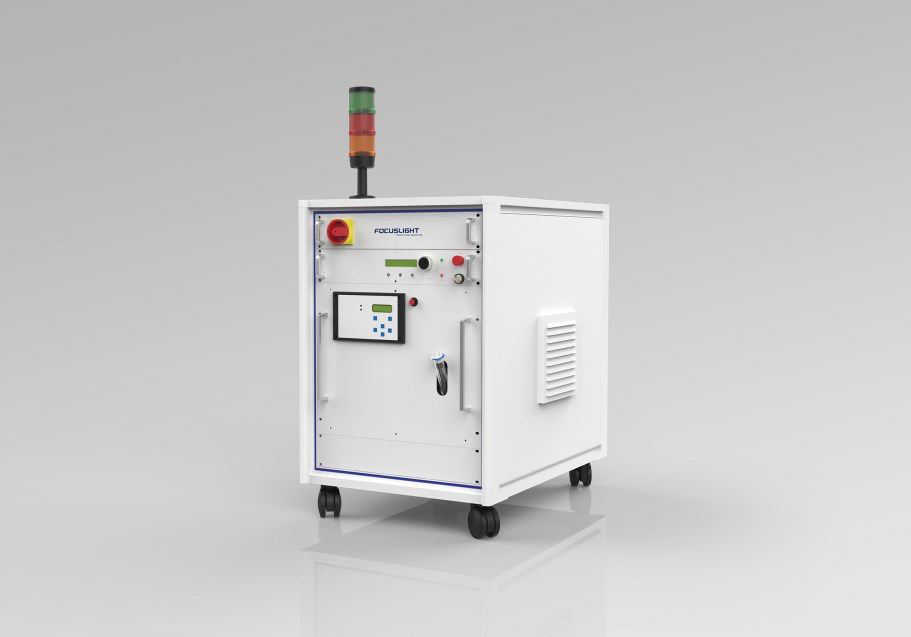

Industrial Laser System for Material Processing - Activation Series
The Activation Series is a turnkey industrial laser system designed for material processing applications. It integrates seamlessly into production machines, offering reliable control, protection functions, and closed-loop process control.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Rack Type | 19" |

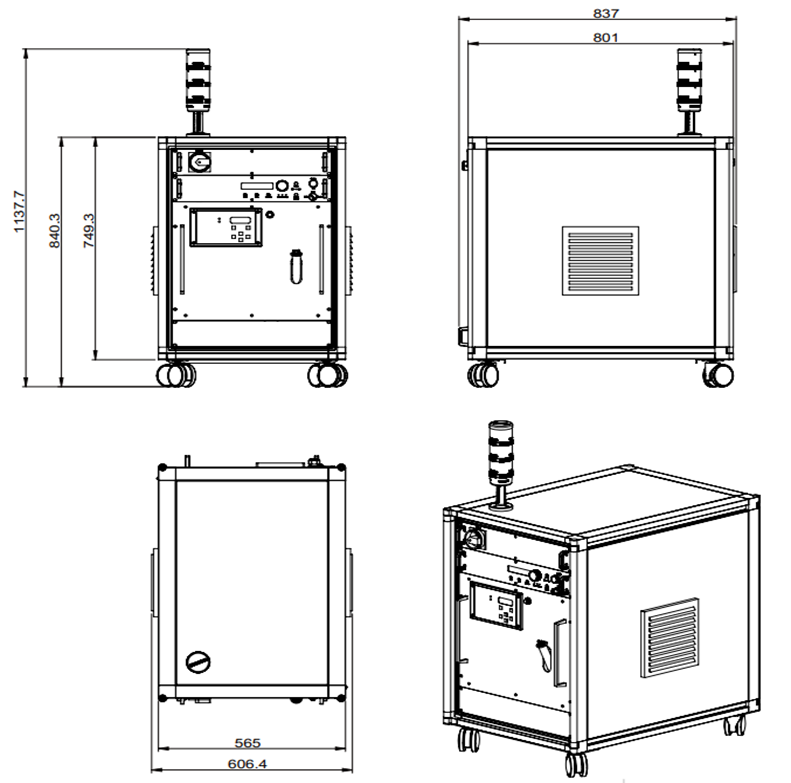

| Dimensions (height×width×depth) | 1140×610×840mm |
| Max. Weight | 120kg |
| CW-nominal Output Power | 400W |
| Wavelength | 808nm, 980nm |
| Fiber Diameter | 400μm |
| Numerical aperture | 0.22 |
| Fiber Plug Type | LD80 |
| Fiber Length | 10m, 5m |
| Operating Voltage | 390±10V |
| Max. Operation Current | 16A |
| Supply Frequency | 50-60Hz |
| Number of Leads | 3P+N+PE |
| Power Plug Type | CEE |
| Operating Temperature | 15-35°C |
| Storage Temperature | 15-60°C |
| Chiller Type | Water |
| Cooling Capacity | 2100W |
| Laser Circuit Water Pressure | 3.5bar |
| Laser Circuit Water Flow | 4L/min |
| Laser Circuit Water Type | Distilled Water |
| Pilot Beam | ● |
| Key Main Switch | ● |
| Pyrometer Control | ○ |
| Power-meter Control | ○ |
| Internal Pulse Modus | ● |
| Laser Process Head | ● |
