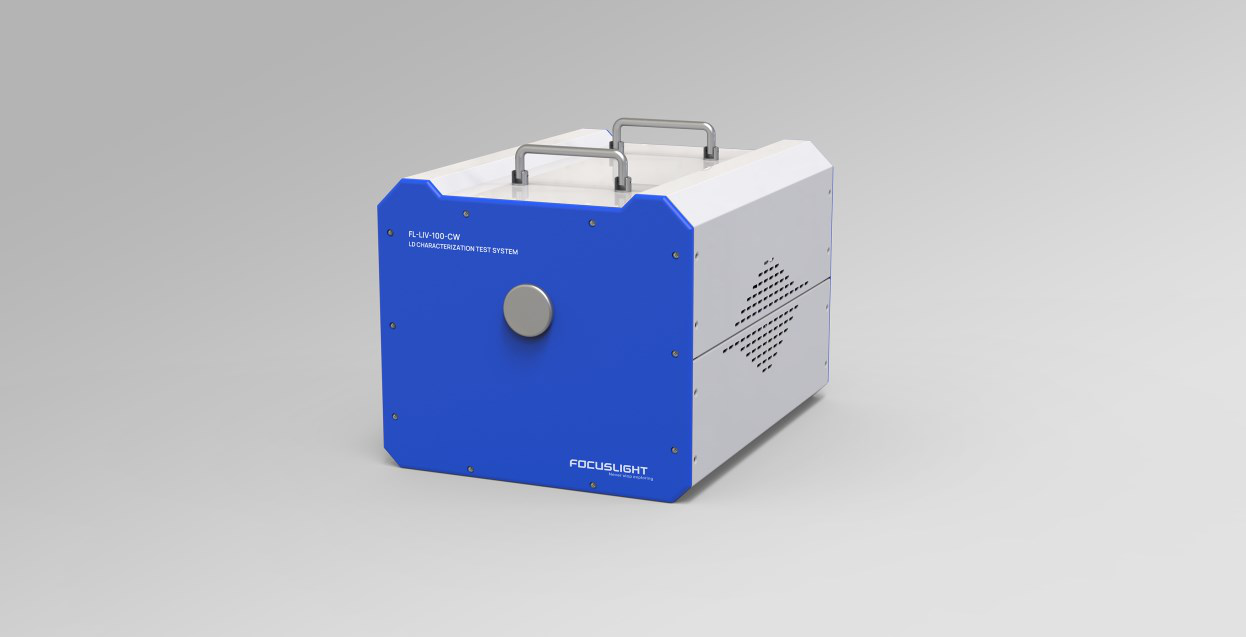

FocusTest™ Series LIV & Spectrum Test System
FocusTest™ Series LIV & Spectrum Test System is designed for precise testing of diode lasers, offering high repeatability, stability, and spectral resolution with flexible customization options.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Code | FL-LIV-100-CW |

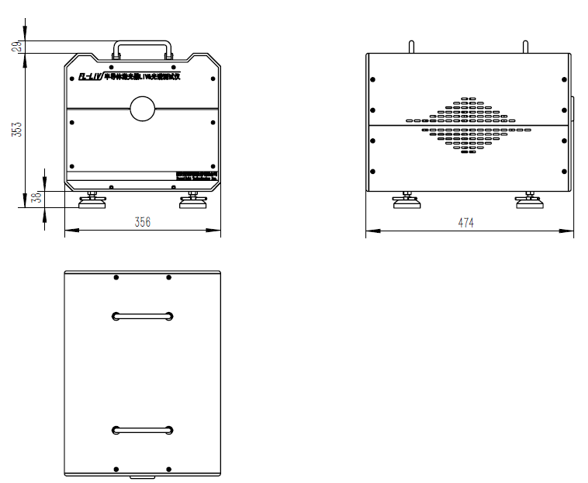

| Dimensions (Width×Depth×Height) | 360×470×400mm |
| Weight | <40kg |
| Testing Items-LIV | Output power, operating voltage, operating current, threshold current, electro-optical efficiency, slope efficiency, series resistance |
| Testing Items-Spectrum | Peak wavelength, central wavelength, FWHM, spectral width 90% energy |
| Power Range | ≤100W |
| Power Accuracy (FS) | ±3% |
| Wavelength Range | 600-1000nm |
| Wavelength Resolution | 0.12nm |
| Testing Power Source (CW) | ≤150A |
| Temperature Control Range (Optional) | 15~80°C |
| Temperature Control Accuracy | ±0.2°C |
| Chiller Range (Optional) | 15~30°C |
| Cooling Water Pressure | 3.5bar |
| Chiller Accuracy | ±1°C |
| Computer | IPC |
| System Software | Control power source, automatic testing; Automatically generate profile and report |
| Communication Interface | USB2.0 RS232 |
| Power Supply | AC220V/50Hz |
