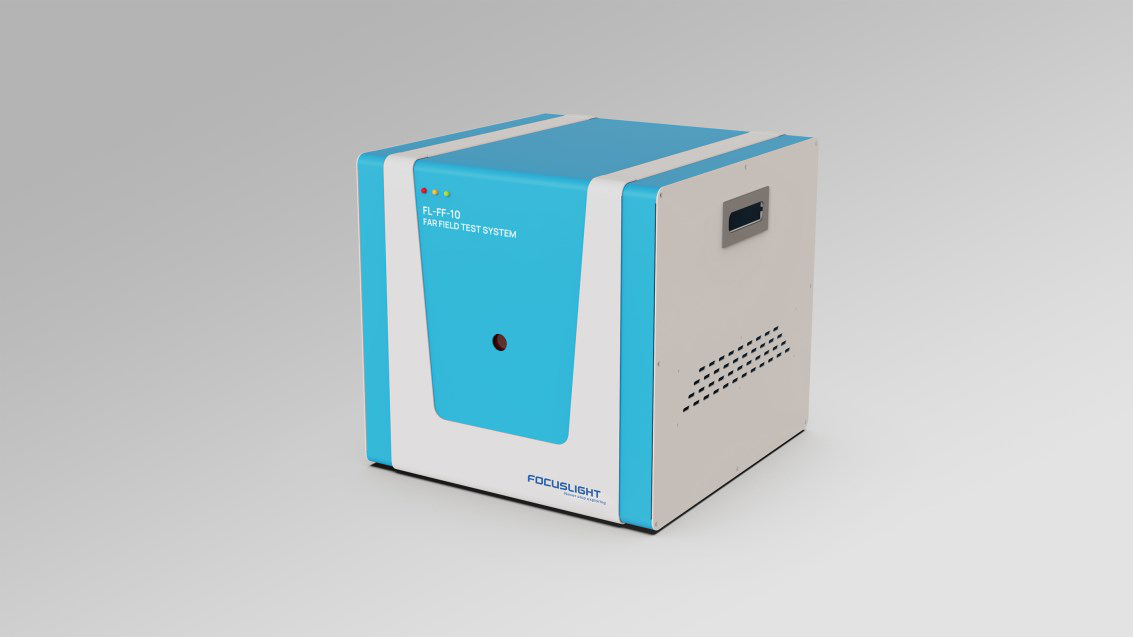

FocusTest™ Series Far Field Test System
FocusTest™ Series Far Field Test System is designed for reliable and precise far-field testing of laser diodes, offering compact size, flexible customization, and user-friendly operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

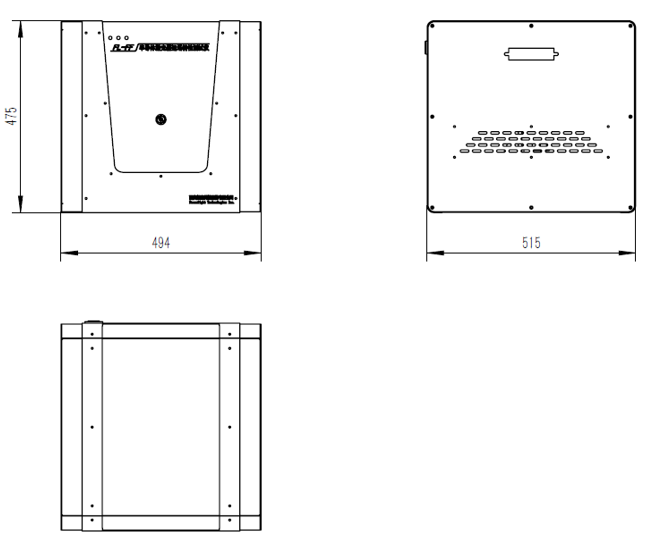

| Dimensions (Width×Depth×Height) | 494×515×480mm |
| Weight | <25kg |
| Far Field Testing Range | ≤120° |
| Far Field Testing Accuracy | ±0.2° |
| Power | ≤100W |
| Wavelength Range | 600~1000nm |
| Testing Power Source (CW) | ≤150A |
| Temperature Control Range (Optional) | 15~80°C |
| Temperature Control Accuracy (Optional) | ±0.2°C |
| Chiller Temperature Range (Optional) | 15~30°C |
| Cooling Water Pressure (Optional) | 3.5bar |
| Chiller Temperature Accuracy (Optional) | ±1°C |
| Computer | IPC |
| System Software Functions | Automatically generate profiles and 3D intensity distribution reports |
| Computer Interface | USB2.0 RS232 |
| Power Supply | AC220V/50Hz |
