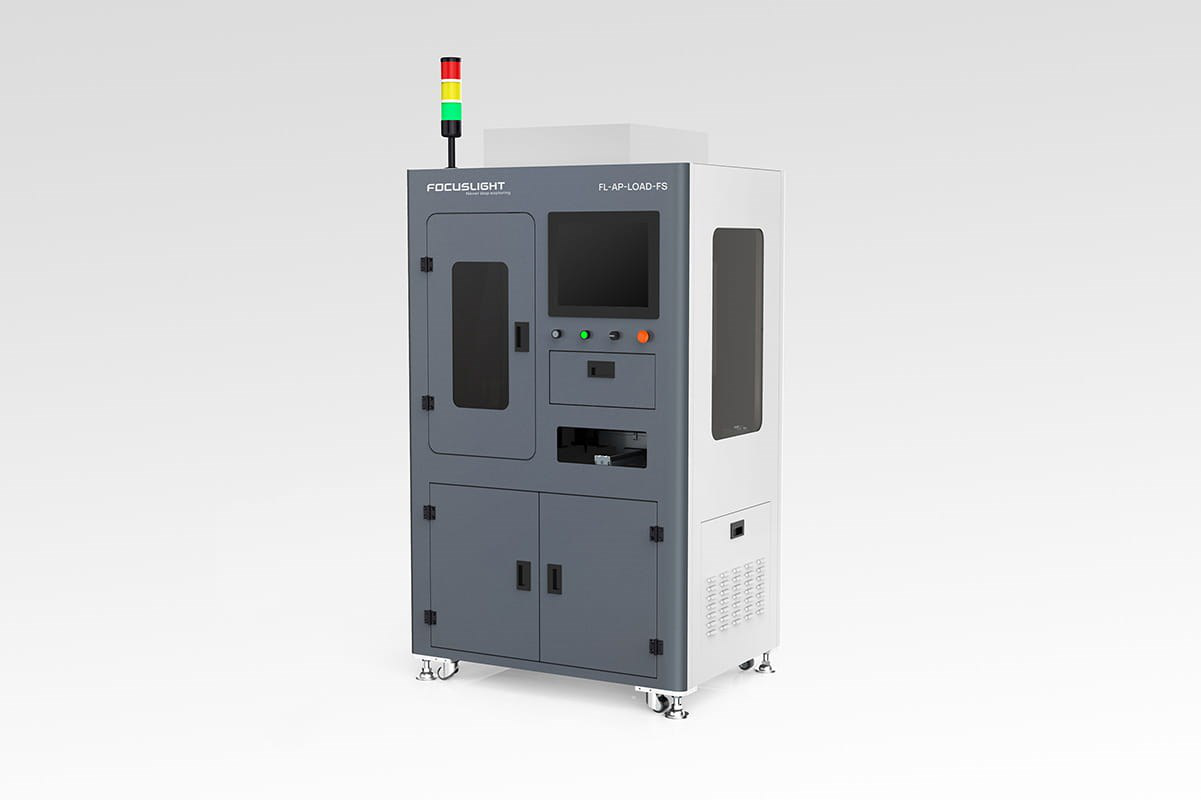

FAC Auto Pickup and Loading Equipment
The FAC Auto Pickup and Loading Equipment is designed for automated handling of FACs, ensuring precise pickup, transfer, and identification of jig numbers and characters. It incorporates advanced protection functions for reliable operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Code | FL-AP-LOAD-FAC |

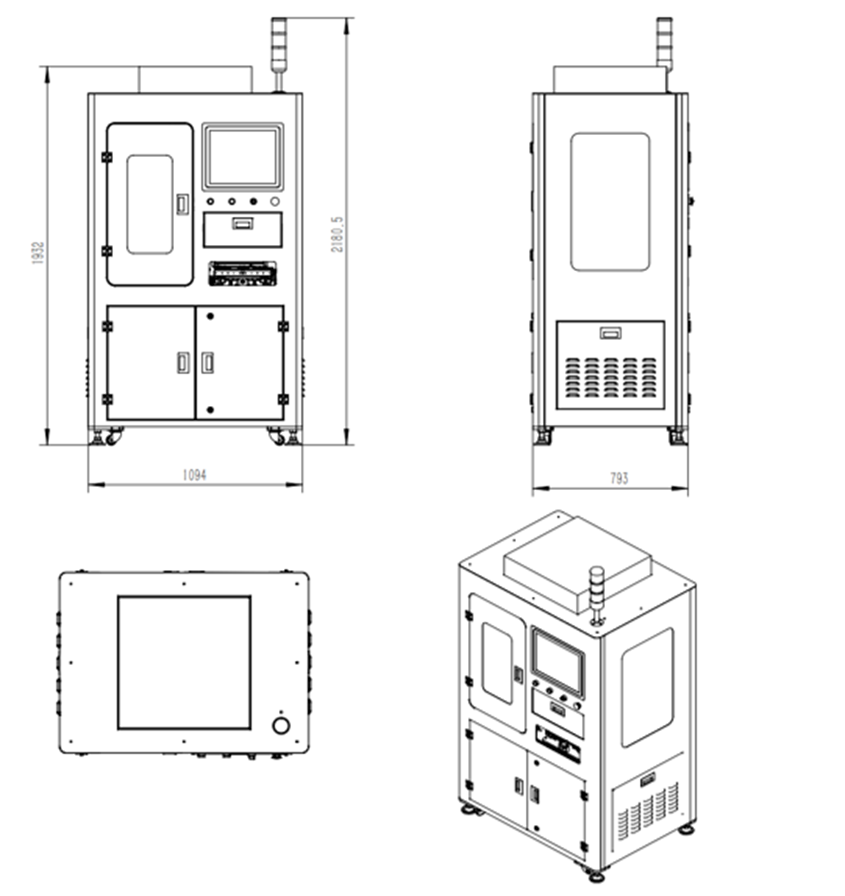

| Dimensions (Width×Depth×Height) | 1100×800×2200mm |
| Weight | <800kg |
| Cycle Time | TT=3.5s/pcs |
| Jig Quantity | 4pcs/tray |
| Loading Percent of Pass | ≥99% |
| Down Rate | ≤1% |
| Change Line Time | ≤15min |
| Visual Resolution | 0.053mm (Pickup)/0.02mm (Positioning) |
| Speed of Movement | 1000mm/s |
| Positioning Accuracy | ±0.025mm |
| System Software | Identifies jig numbers and characters |
| System Software | saves to database |
| System Software | generates tracking reports |
| Computer Interface | GPIB USB2.0 RS232 |
| Power Supply | AC220V/50Hz |
| Alarming Protection | Sound and light alarm |
| Alarming Protection | security management |
| Alarming Protection | leakage protection |
| Alarming Protection | maintenance reminder |
| Alarming Protection | emergency stop |
