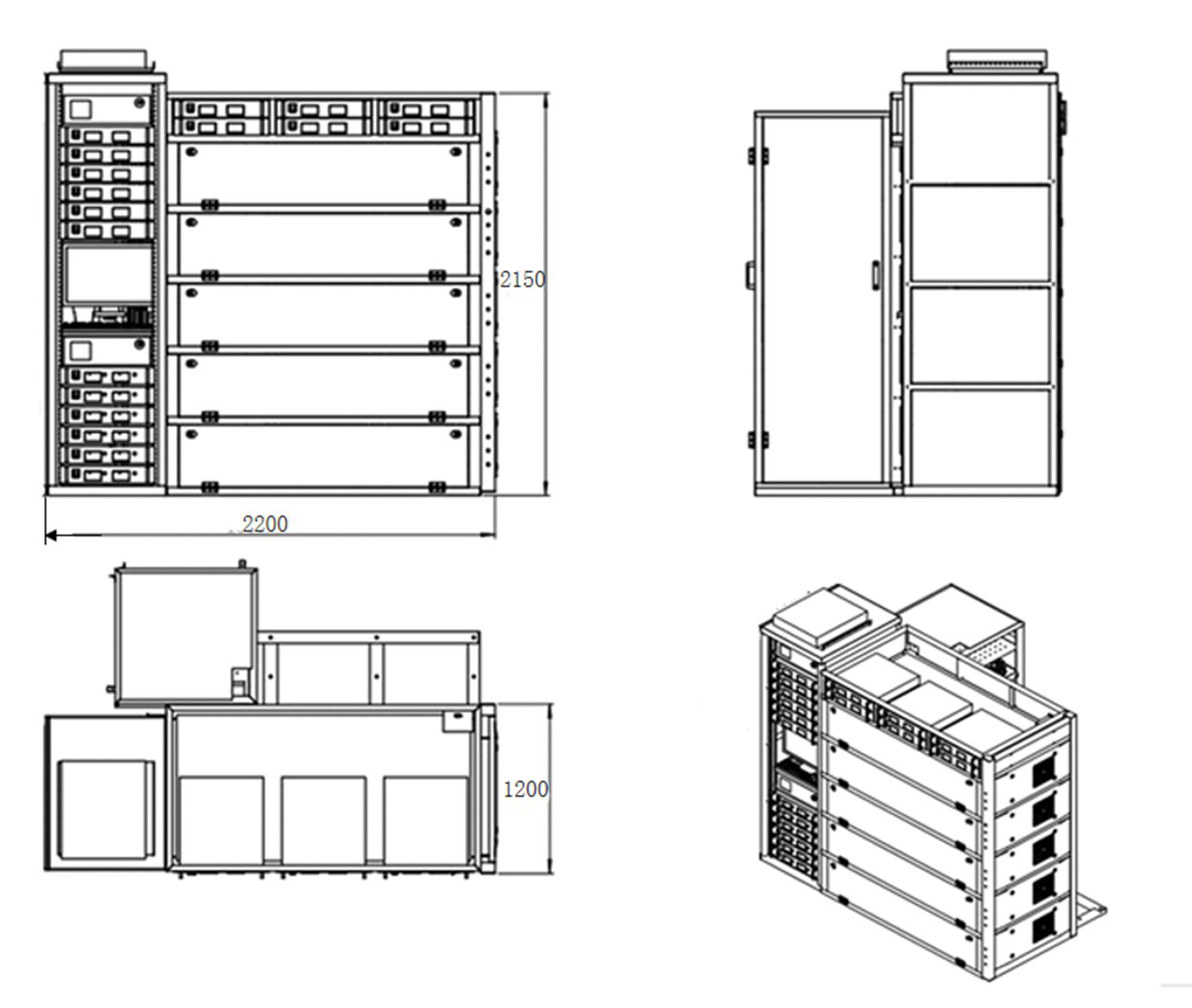

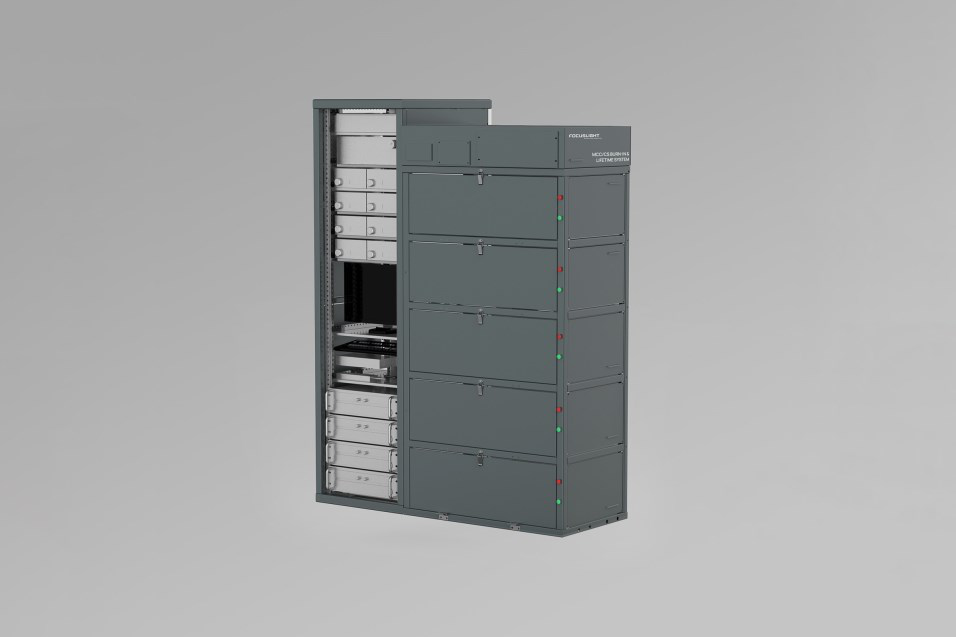

FocusBI Series Fiber Coupled Package Burn-in and Lifetime System

The CKY-TGQ3 three-phase thyristor power regulator is a phase-shift triggered power controller.

Current accuracy: ≥4/10000, ripple ≤6 mV High voltage source output voltage: 0~-1400 V High voltage source voltage accuracy: ≥5/10000 per hour

This power supply is a dedicated power supply matched for the optical film measurement system. It integrates an optical power supply, a multiplier tube high-voltage source, and a modulation motor power supply into one unit, providing stable power to the light source bulb and photomultiplier tube to ensure the measurement accuracy of the optical film thickness measurement controller. The bulb matched with this power supply is 12V, 100W (12V, 50W, 75W optional), and according to user requirements it can be configured with two outputs to respectively correspond to the upper and lower optical paths and the PbS power supply. This power supply features high precision, reliable performance, and simple operation.

Composed of electrical control cabinets, PLCs, industrial computers, frequency converters, power regulators, strong-current control components, etc. The main electrical components all use internationally first-class brand products, all of which have passed CE certification or ISO9001 certification. Such as: Japan's Omron, Germany's Schneider, Weipu, etc. Complete control system equipment is the complete set of equipment necessary for the control system to achieve effective control. It includes various instruments and devices in the detection and conversion units, regulation units, and execution units that constitute the control system, as well as industrial control computer systems, etc. For example, electrical control components in the control system (such as detection elements, potentiometers, differential transformers, control synchronizers, resolvers, speed detection elements, etc.), regulators, amplifiers, operating elements (such as solenoid valves and motorized valves, servo motors, relays, etc.). Only when all various equipment costs are matched can a complete control system be formed and control objectives achieved. Due to the particularity of the controlled object, the specific complete set of equipment necessary for the control system differs. There are complete sets of equipment for large-scale linked machine control systems, and complete sets of equipment for a certain product production line control system. Complete sets of equipment for downhole operation control systems, etc.

PLC Splitter is based on the planar waveguide technology. Yilut provide available customized design for the different assembly request. The splitters are certified by Telcordia and Verizon requirement.
