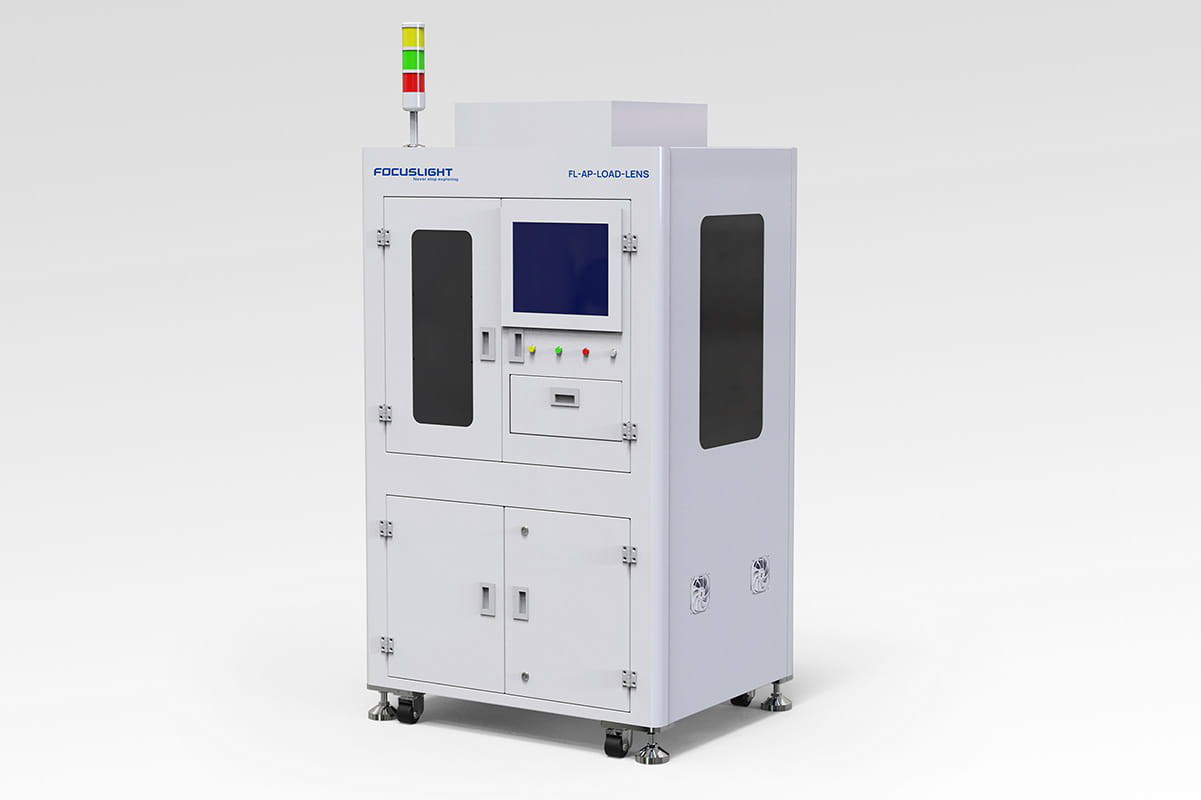

FocusAP Automation Series - Lens Auto Packaging Equipment
The FocusAP Automation Series Lens Auto Packaging Equipment is designed for automatic pickup and placement of lenses into specified positions, ensuring precision and efficiency in packaging processes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

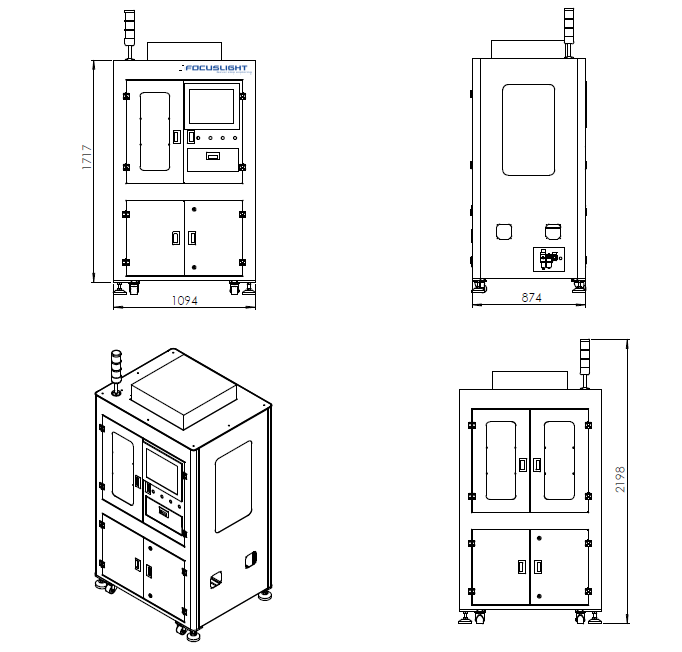

| Dimensions (Width x Depth x Height) | 1100x900x1720mm |
| Weight | <600kg |
| Cycle Time | TT=3.5s/pcs |
| Quantity of feeding | 800pcs |
| Quantity of packing boxes in blanking area | 12pcs |
| Down Rate | ≤1% |
| Edge Breakage Rate | <0.5% |
| Change Line Time | ≤15min |
| Visual Resolution | 0.053mm (Pickup) |
| Speed of Movement | 1100mm/s |
| Positioning Accuracy | ±0.02mm |
| System Software | Automatically identifies the box location and the grid in the box |
| System Software | places the lens in the specified position |
| Computer Interface | GPIB USB2.0 RS232 |
| Power Supply | AC220V/50Hz |
| Alarming Protection | Sound and light alarm |
| Alarming Protection | emergency stop |
| Alarming Protection | security management |
| Alarming Protection | leakage protection |
| Alarming Protection | static elimination |
| Alarming Protection | maintenance reminder |
| Alarming Protection | and more |
