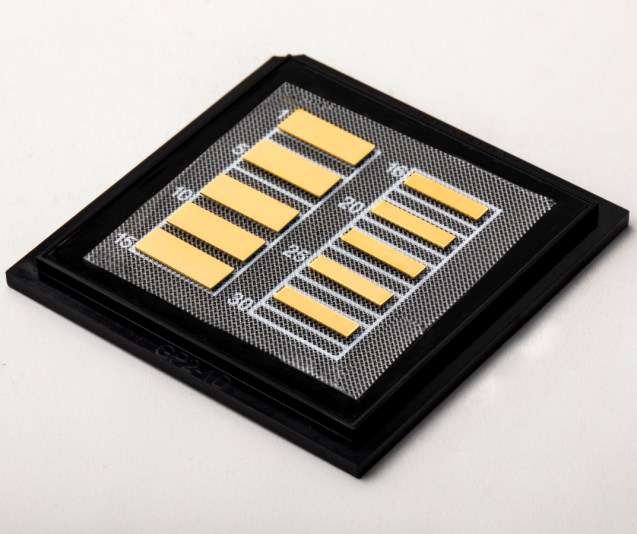

FL-AMM Series
FL-AMM series is a high-performance advanced material designed for industrial, IT, and scientific research applications. It features AuSn pre-deposited coating, low thermal resistance, and high reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Length(mm) FL-AMM-11541003 | 11.5mm |
| Width(mm) FL-AMM-11541003 | 4.10mm |
| Thickness(mm) FL-AMM-11541003 | 0.30mm |
| Ni Thickness(μm) FL-AMM-11541003 | ≥1.0μm |
| Au Thickness(μm) FL-AMM-11541003 | ≥0.25μm |
| AuSn Thickness(μm) FL-AMM-11541003 | 6.0±1.0μm |
| AuSn Coating Surface FL-AMM-11541003 | Single sided |

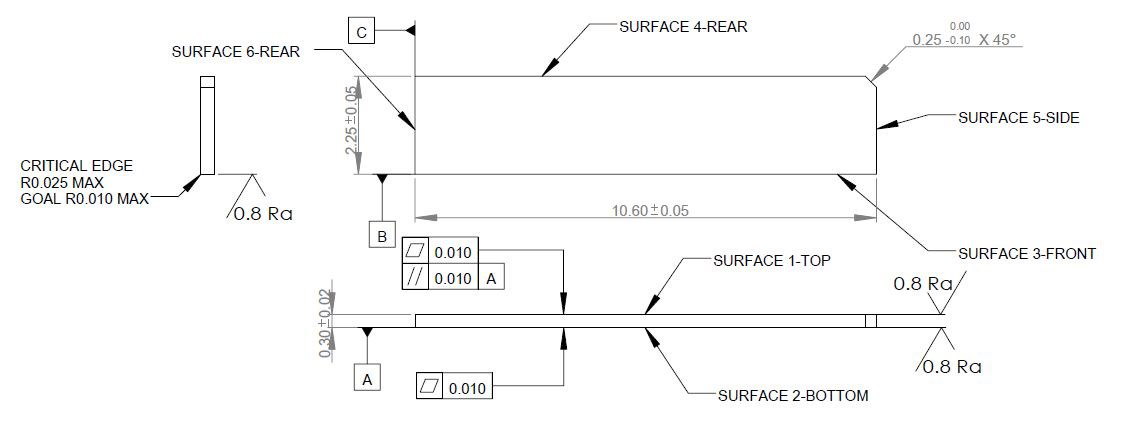

| Length(mm) FL-AMM-10622503 | 10.6mm |
| Width(mm) FL-AMM-10622503 | 2.25mm |
| Thickness(mm) FL-AMM-10622503 | 0.30mm |
| Ni Thickness(μm) FL-AMM-10622503 | ≥1.0μm |
| Au Thickness(μm) FL-AMM-10622503 | ≥0.25μm |
| AuSn Thickness(μm) FL-AMM-10622503 | 6.0±1.0μm |
| AuSn Coating Surface FL-AMM-10622503 | Single sided |

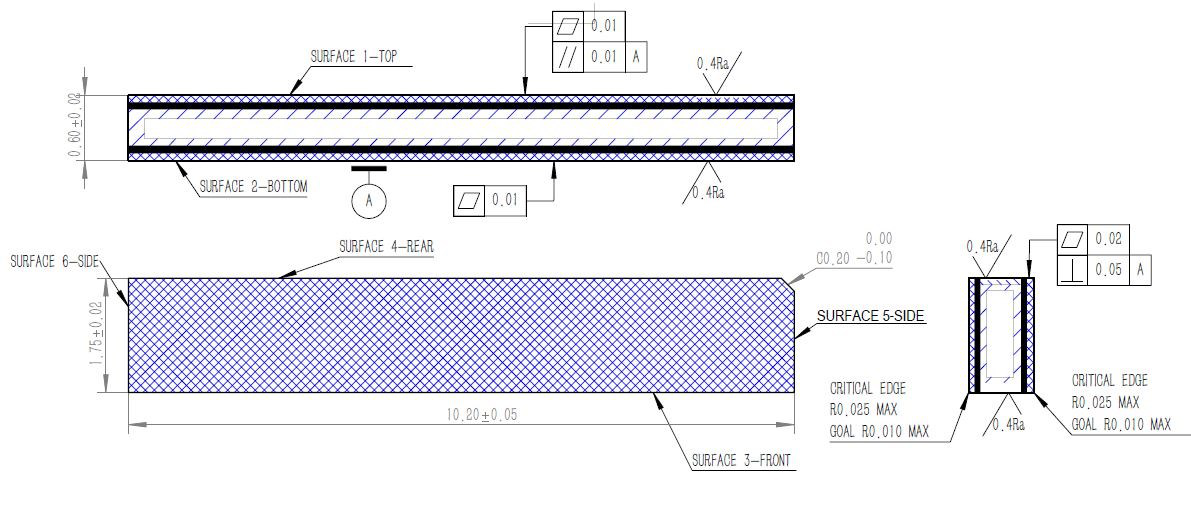

| Length(mm) FL-AMM-10217506 | 10.2mm |
| Width(mm) FL-AMM-10217506 | 1.75mm |
| Thickness(mm) FL-AMM-10217506 | 0.60mm |
| Ni Thickness(μm) FL-AMM-10217506 | ≥1.0μm |
| Au Thickness(μm) FL-AMM-10217506 | ≥0.25μm |
| AuSn Thickness(μm) FL-AMM-10217506 | 6.0±1.0μm |
| AuSn Coating Surface FL-AMM-10217506 | Double sided |
| Melting Point(°C) | 280-320°C |
| Roughness(μm) | ≤0.4μm |
| Warpage(μm) | ≤10μm |
| Thermal Resistance(%) | 90% |
| Storage Environment | Nitrogen Environment |
| Environment Temperature(°C) | 22±3°C |
| Warranty(month) | 12 |
