PoG Diffuser 125x110
The PoG (Polymer on Glass) diffuser combines a micro-structured polymer layer on a glass substrate, offering wide wavelength coverage (450–2000nm), high transmission (>90%), customizable divergence angles (10°–130°) with various beam shapes, and excellent thermal stability (-40°C to 125°C, reflow soldering up to 260°C). It is a cost-effective, reliable, and scalable solution for VCSEL-based applications such as 3D sensing, LiDAR, in-cabin monitoring, robotics, and machine vision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Code | 120206000557 |

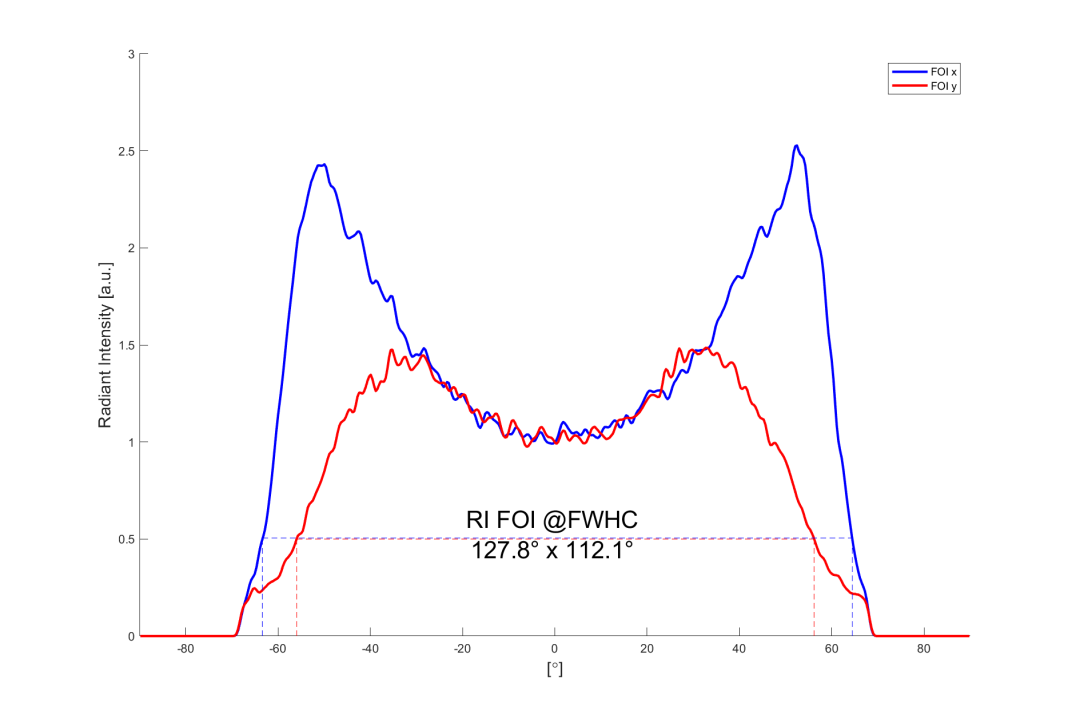

| Typical FOI Angle (FWHM) Horizontal | 128° |
| Typical FOI Angle (FWHM) Vertical | 112° |

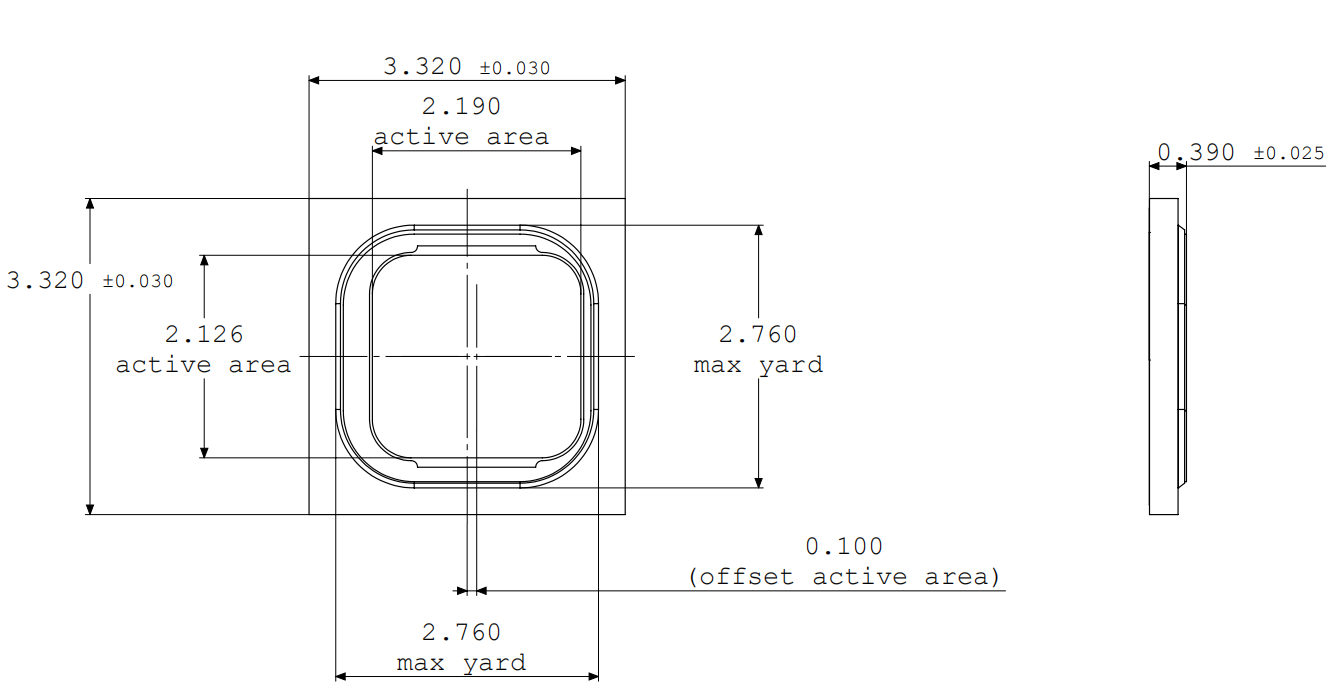

| Length (L) | 3.32±0.03mm |
| Width (W) | 3.32±0.03mm |
| Thickness (T) | 0.39±0.02mm |
| Clear Aperture (AI x Aw) | 2.190x2.126mm² |
| Design Wavelength | 940nm/850nm |
| AR Coating | Uncoated |
| Transmission | 90% |
Applications
Key Features
Datasheet
