Cylindrical Lens Array Pitch 0.5

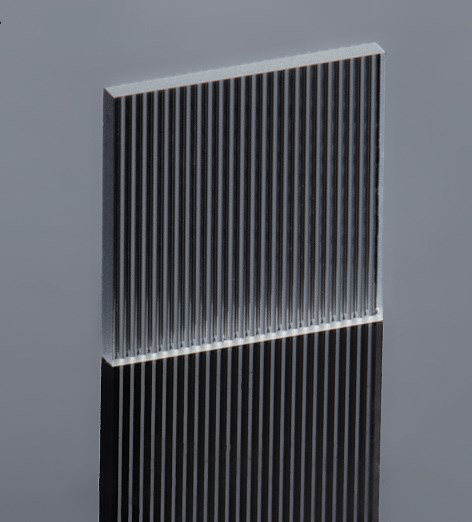

Cylindrical lens array with lenses on one side, designed to generate top hat profiles with high homogeneity in one dimension.
Save to Favorites
Overview
Specifications

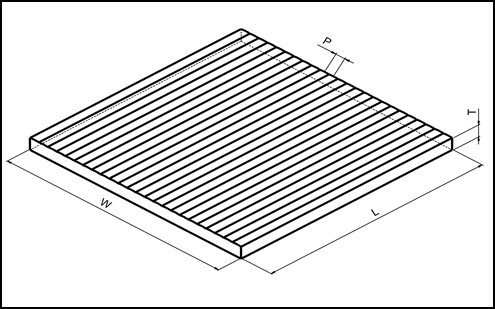

| Parameter | Value |
|---|---|
| Length (L) | 12.0±0.1mm |
| Width (W) | 12.0±0.1mm |
| Thickness (T) | 2.0±0.1mm |
| Clear Aperture | 10.0×10.0mm² |
| Refractive Index @248nm | 1.509 |
| Refractive Index @532nm | 1.461 |
| Refractive Index @1064nm | 1.449 |
| Transmission (without coating) | ＞90% |
| Protective Chamfer | mm×45° |
| Surface Imperfections (DIN ISO 10110-7) | 5/2×0.1; L×0.25; E1.0 |
| Radius (ZLA000233) | 2.15±0.06mm |
| EFL (ZLA000233) @248nm | 6.3±0.15mm |
| EFL (ZLA000233) @532nm | 6.88±0.21mm |
| EFL (ZLA000233) @1064nm | 7.08±0.32mm |
| Numerical Aperture (ZLA000233) @248nm | 0.0591 |
| Numerical Aperture (ZLA000233) @532nm | 0.0533 |
| Numerical Aperture (ZLA000233) @1064nm | 0.0525 |
| Radius (ZLA000479) | 3.50±0.11mm |
| EFL (ZLA000479) @248nm | 8.0±0.21mm |
| EFL (ZLA000479) @532nm | 8.6±0.28mm |
| EFL (ZLA000479) @1064nm | 9.2±0.32mm |
| Numerical Aperture (ZLA000479) @248nm | 0.0363 |
| Numerical Aperture (ZLA000479) @532nm | 0.0321 |
| Numerical Aperture (ZLA000479) @1064nm | 0.0305 |
| Radius (ZLA000239) | 5.50±0.17mm |
| EFL (ZLA000239) @248nm | 10.8±0.32mm |
| EFL (ZLA000239) @532nm | 11.9±0.32mm |
| EFL (ZLA000239) @1064nm | 13.2±0.32mm |
| Numerical Aperture (ZLA000239) @248nm | 0.0251 |
| Numerical Aperture (ZLA000239) @532nm | 0.0221 |
| Numerical Aperture (ZLA000239) @1064nm | 0.0204 |
| Radius (ZLA000601) | 14.0±0.42mm |
| EFL (ZLA000601) @248nm | 27.5±0.83mm |
| EFL (ZLA000601) @532nm | 30.8±0.83mm |
| EFL (ZLA000601) @1064nm | 34.5±0.83mm |
| Numerical Aperture (ZLA000601) @248nm | 0.0115 |
| Numerical Aperture (ZLA000601) @532nm | 0.0100 |
| Numerical Aperture (ZLA000601) @1064nm | 0.0090 |
| Radius (ZLA001110) | 21.0±0.65mm |
| EFL (ZLA001110) @248nm | 45.6±1.14mm |
| EFL (ZLA001110) @532nm | 50.8±1.14mm |
| EFL (ZLA001110) @1064nm | 56.8±1.14mm |
| Numerical Aperture (ZLA001110) @248nm | 0.0070 |
| Numerical Aperture (ZLA001110) @532nm | 0.0063 |
| Numerical Aperture (ZLA001110) @1064nm | 0.0056 |
| Radius (ZLA001111) | 31.3±0.94mm |
| EFL (ZLA001111) @248nm | 68.0±1.71mm |
| EFL (ZLA001111) @532nm | 75.8±1.71mm |
| EFL (ZLA001111) @1064nm | 84.8±1.71mm |
| Numerical Aperture (ZLA001111) @248nm | 0.0048 |
| Numerical Aperture (ZLA001111) @532nm | 0.0041 |
| Numerical Aperture (ZLA001111) @1064nm | 0.0036 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

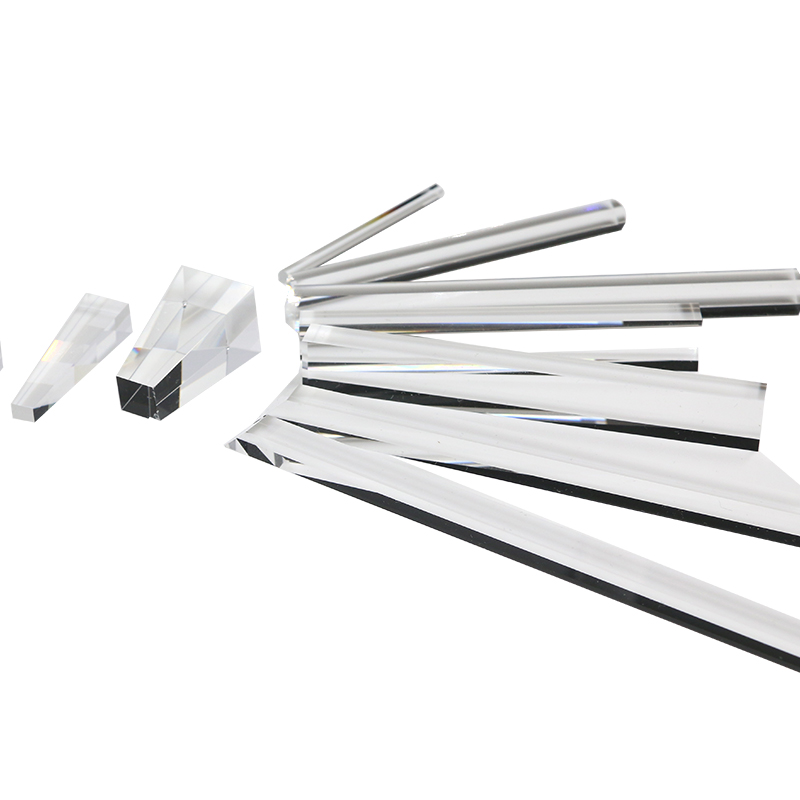

Optical Integrator Rod with Custom Precision for Advanced Projection
