Compact Beam Shaper IOS000316

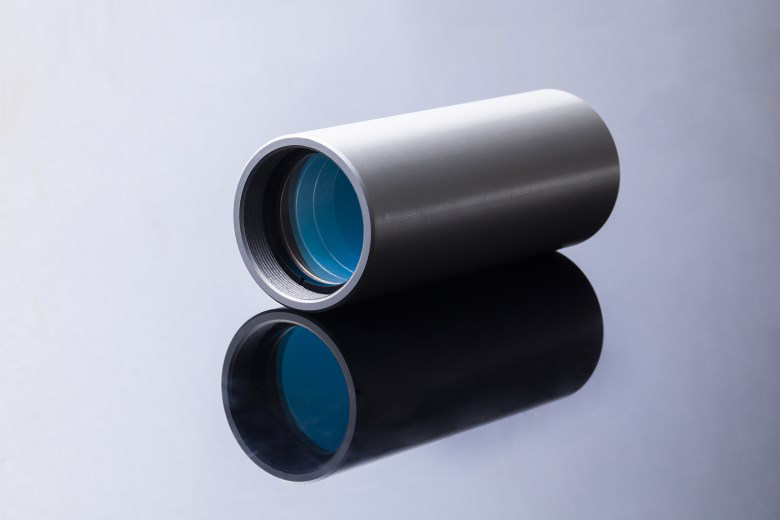

This compact beam shaper is designed for a fiber-coupled diode laser to generate a homogeneous field of 6×6mm² at a working distance of approximately 150mm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | ≤120W |
| Fiber Core Diameter | 400μm |
| NA | 0.22 |
| Fiber Connector | SMA905 |
| Transmission | >95% |
| Efficiency | >60% |

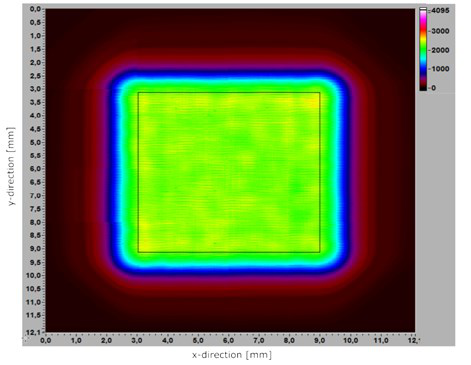

| Generated Field Size | 6×6±0.5mm² |
| Inhomogeneity | ≤7.5% |
| Housing Material | Anodized Aluminium |

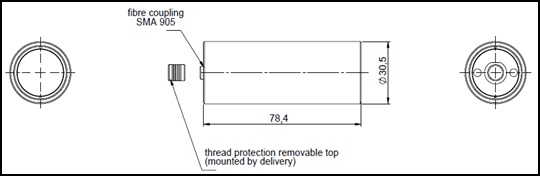

| Dimensions of the Housing | See drawing |
