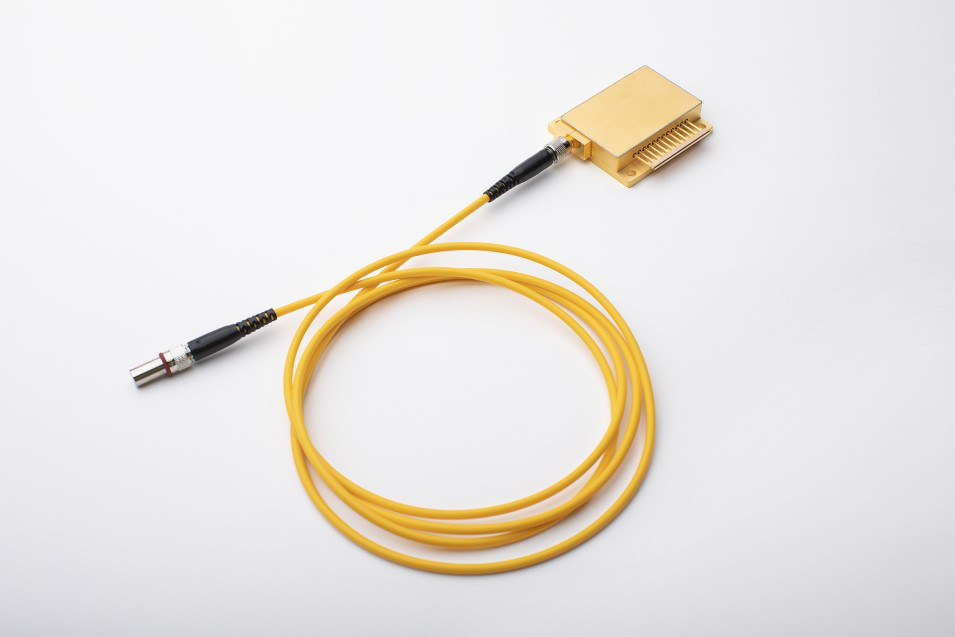

High Power Fiber Coupled Diode Laser - FCMSE58 Series
The FCMSE58 Series is a high-power fiber-coupled diode laser designed for advanced manufacturing, health, information technology, and scientific research applications. It features high brightness, compact housing, hermetically sealed housing, and conduction cooling.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CW-nominal output power (W) FCE000018 | 25W |
| CW-nominal output power (W) FCE000013 | 8/15 |
| CW-nominal output power (W) FCE000023 | 30W |
| CW-nominal output power (W) FCE000035 | 16W |
| Centroid wavelength (nm) FCE000018 | 808nm |
| Centroid wavelength (nm) FCE000013 | 808/1064 |
| Centroid wavelength (nm) FCE000023 | 976nm |
| Centroid wavelength (nm) FCE000035 | 980nm |
| Wavelength tolerance (±nm) FCE000018 | 3 |
| Wavelength tolerance (±nm) FCE000013 | 3/10 |
| Wavelength tolerance (±nm) FCE000023 | 5 |
| Wavelength tolerance (±nm) FCE000035 | 15 |
| Spectral width (FWHM nm) FCE000018 | ≤4 |
| Spectral width (FWHM nm) FCE000013 | ≤5/— |
| Spectral width (FWHM nm) FCE000023 | ≤6 |
| Spectral width (FWHM nm) FCE000035 | — |
| Wavelength Temp. drift (nm/°C) FCE000018 | ~0.28 |
| Wavelength Temp. drift (nm/°C) FCE000013 | ~0.34/~0.28 |
| Wavelength Temp. drift (nm/°C) FCE000023 | ~0.34 |
| Wavelength Temp. drift (nm/°C) FCE000035 | ~0.34 |
| Feedback Protection (1040nm-1100nm dB) FCE000018 | — |
| Feedback Protection (1040nm-1100nm dB) FCE000013 | — |
| Feedback Protection (1040nm-1100nm dB) FCE000023 | — |
| Feedback Protection (1040nm-1100nm dB) FCE000035 | — |
| Fiber included FCE000018 | Yes(FP03) |
| Fiber included FCE000013 | Yes(FP03) |
| Fiber included FCE000023 | Yes(FP03) |
| Fiber included FCE000035 | Yes(FP03) |
| Fiber core diameter (μm) FCE000018 | 200μm |
| Fiber core diameter (μm) FCE000013 | 200μm |
| Fiber core diameter (μm) FCE000023 | 200μm |
| Fiber core diameter (μm) FCE000035 | 200μm |
| Numerical aperture FCE000018 | 0.22 |
| Numerical aperture FCE000013 | 0.22 |
| Numerical aperture FCE000023 | 0.22 |
| Numerical aperture FCE000035 | 0.22 |
| Fiber optic connector FCE000018 | SMA905(SH/SF) |
| Fiber optic connector FCE000013 | SMA905(SH/SF) |
| Fiber optic connector FCE000023 | SMA905(SH/SF) |
| Fiber optic connector FCE000035 | SMA905(SH/SF) |
| Fiber length (m) FCE000018 | 1.5±0.1m |
| Fiber length (m) FCE000013 | 1.5±0.1m |
| Fiber length (m) FCE000023 | 1.5±0.1m |
| Fiber length (m) FCE000035 | 1.5±0.1m |
| Fixed fiber/Detachable fiber FCE000018 | Detachable fiber |
| Fixed fiber/Detachable fiber FCE000013 | Detachable fiber |
| Fixed fiber/Detachable fiber FCE000023 | Detachable fiber |
| Fixed fiber/Detachable fiber FCE000035 | Detachable fiber |
| Nominal diode heat sink Temp. (°C) FCE000018 | 25°C |
| Nominal diode heat sink Temp. (°C) FCE000013 | 25°C |
| Nominal diode heat sink Temp. (°C) FCE000023 | 25°C |
| Nominal diode heat sink Temp. (°C) FCE000035 | 25°C |
| Diode heat sink operation Temp. (°C) FCE000018 | +20...+30 |
| Diode heat sink operation Temp. (°C) FCE000013 | +20...+30 |
| Diode heat sink operation Temp. (°C) FCE000023 | +20...+30 |
| Diode heat sink operation Temp. (°C) FCE000035 | +20...+30 |
| Minimum heat sink capacity (W) FCE000018 | 75W |
| Minimum heat sink capacity (W) FCE000013 | 75W |
| Minimum heat sink capacity (W) FCE000023 | 75W |
| Minimum heat sink capacity (W) FCE000035 | 75W |
| Max. operation current start of life (A) FCE000018 | ≤9.2A |
| Max. operation current start of life (A) FCE000013 | ≤10/≤13.5 |
| Max. operation current start of life (A) FCE000023 | ≤9.5A |
| Max. operation current start of life (A) FCE000035 | ≤10A |
| Typical threshold current (A) FCE000018 | ≤1.8A |
| Typical threshold current (A) FCE000013 | ≤1.8A |
| Typical threshold current (A) FCE000023 | ≤0.7A |
| Typical threshold current (A) FCE000035 | ≤0.7A |
| Typical operation voltage (V) FCE000018 | ≤8V |
| Typical operation voltage (V) FCE000013 | ≤8/≤2.1 |
| Typical operation voltage (V) FCE000023 | ≤8V |
| Typical operation voltage (V) FCE000035 | ≤4V |
| Typical slope (W/A) FCE000018 | ≥3.3W/A |
| Typical slope (W/A) FCE000013 | ≥3.3/≥2.5 |
| Typical slope (W/A) FCE000023 | ≥3.3W/A |
| Typical slope (W/A) FCE000035 | ≥2.5W/A |
| Typical E/O efficiency (%) FCE000018 | ≥40% |
| Typical E/O efficiency (%) FCE000013 | ≥35/≥28 |
| Typical E/O efficiency (%) FCE000023 | ≥47% |
| Typical E/O efficiency (%) FCE000035 | ≥45% |

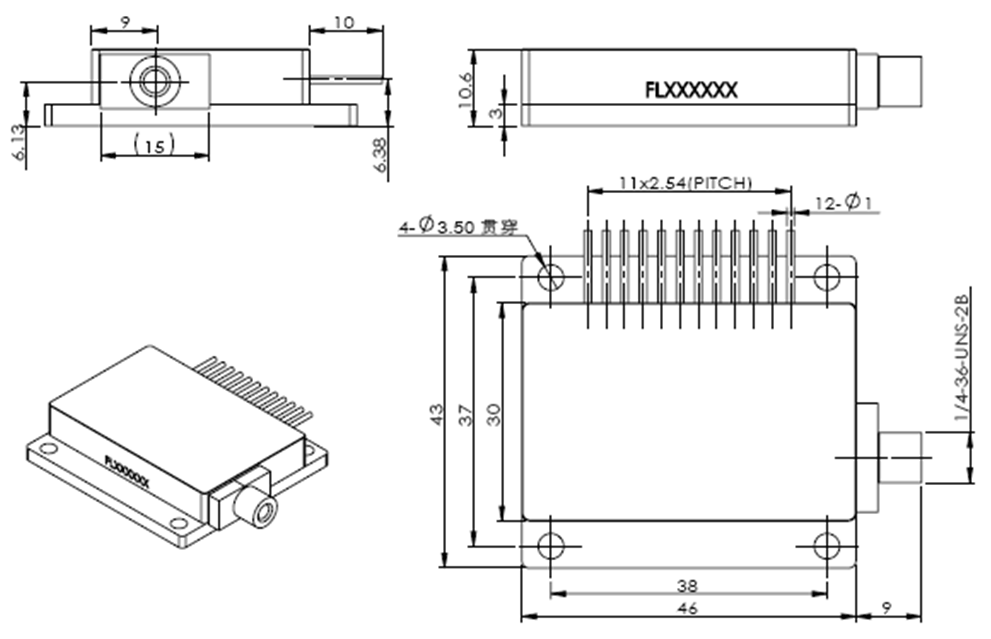

| Dimensions (mm³) FCE000018 | 55×43×10.6 |
| Dimensions (mm³) FCE000013 | 55×43×10.6 |
| Dimensions (mm³) FCE000023 | 55×43×10.6 |
| Dimensions (mm³) FCE000035 | 55×43×10.6 |
| Weight basic package (g) FCE000018 | 110g |
| Weight basic package (g) FCE000013 | 110g |
| Weight basic package (g) FCE000023 | 110g |
| Weight basic package (g) FCE000035 | 110g |
| Storage Temp. (°C) FCE000018 | -20...+80 |
| Storage Temp. (°C) FCE000013 | -20...+80 |
| Storage Temp. (°C) FCE000023 | -20...+80 |
| Storage Temp. (°C) FCE000035 | -20...+80 |
| Temp. sensors FCE000018 | NTC(10kΩ@25°C) |
| Temp. sensors FCE000013 | NTC(10kΩ@25°C) |
| Temp. sensors FCE000023 | NTC(10kΩ@25°C) |
| Temp. sensors FCE000035 | NTC(10kΩ@25°C) |
| Monitor diode (driver: 9V mA) FCE000013 | — |
| Pilot beam (driver: 5V,<30mA) FCE000018 | — |
| Pilot beam (driver: 5V,<30mA) FCE000013 | >2mW,670±20nm |
| Pilot beam (driver: 5V,<30mA) FCE000023 | >2mW,670±20nm |
| Pilot beam (driver: 5V,<30mA) FCE000035 | >2mW,670±20nm |
| Fiber detection sensor FCE000018 | — |
| Fiber detection sensor FCE000013 | Yes |
| Fiber detection sensor FCE000023 | Yes |
| Fiber detection sensor FCE000035 | Yes |
| Fiber FCE000018 | AR coated,200μm |
| Fiber FCE000013 | AR coated,200μm |
| Fiber FCE000023 | AR coated,200μm |
| Fiber FCE000035 | AR coated,200μm |
| Diode heat sink Temp. (°C) FCE000018 | 25°C |
| Diode heat sink Temp. (°C) FCE000013 | 25°C |
| Diode heat sink Temp. (°C) FCE000023 | 25°C |
| Diode heat sink Temp. (°C) FCE000035 | 25°C |
