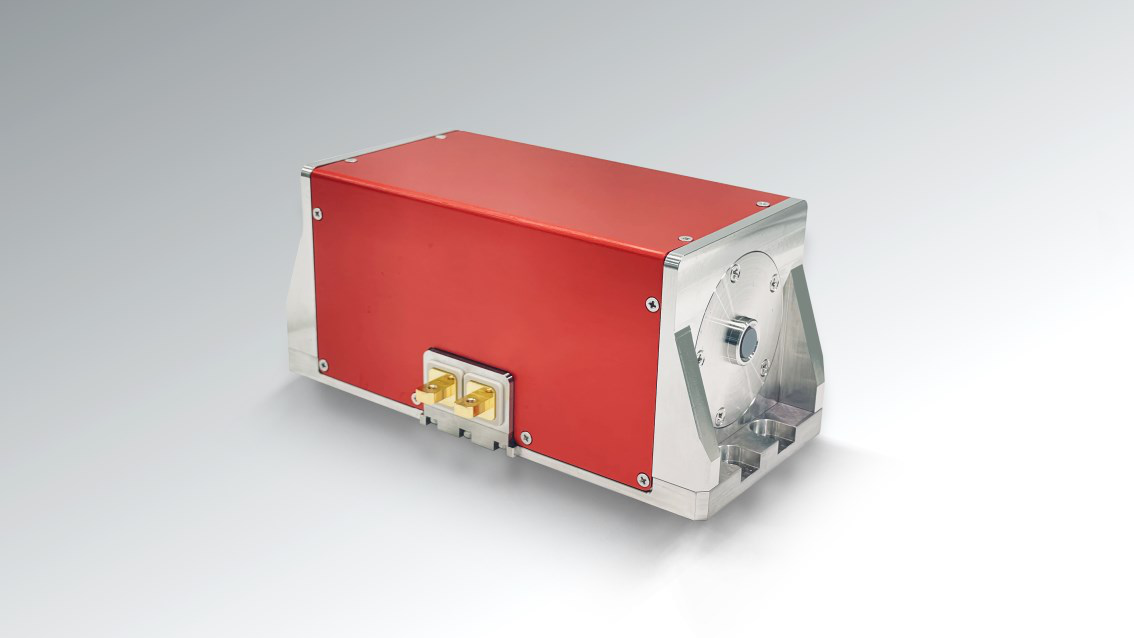

Water Cooled QCW Side Pumped Module
The Water Cooled QCW Side Pumped Module from Focuslight Technologies is a high-performance laser module designed for applications requiring high peak power, long lifetime, and compact size. It is ideal for pumping, medical, industrial, and research purposes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Number of Bars | 150 |
| Rod Type | Nd:YAG, 0.6% doped |
| Rod Diameter | 10mm |
| Rod Length | 167mm |

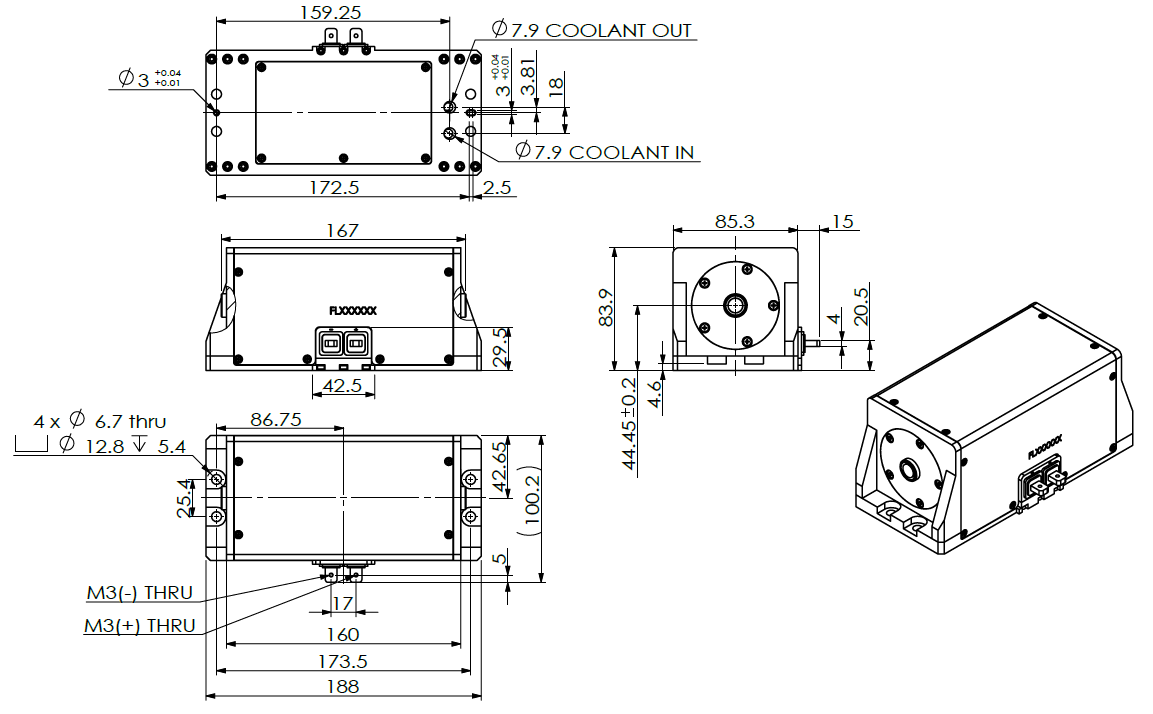

| Product Size (length×width×height) | 188×100.2×83.9mm |
| Product Weight | 3.94Kg |
| Operation Type | QCW |
| Peak Power per Bar | ≤200W |
| Pumping Wavelength | 808±2nm |
| Pumping Length | 100mm |
| Output Power | ＞600@1064nm |
| Stored Energy | ＞2@1064nm |
| Small Signal Gain (Amplification Factor) | ＞55@1064nm |
| Operating Current | ≤200A |
| Operating Voltage | ≤300V |
| Pulse Duration | ≤240μs |
| Repetition Rate | 200Hz |
| Operating Temperature | 25°C |
| Water Pressure | ≤0.5MPa |
| Water Flow | ≥10L/min |
| Storage Temperature | -55~85°C |
