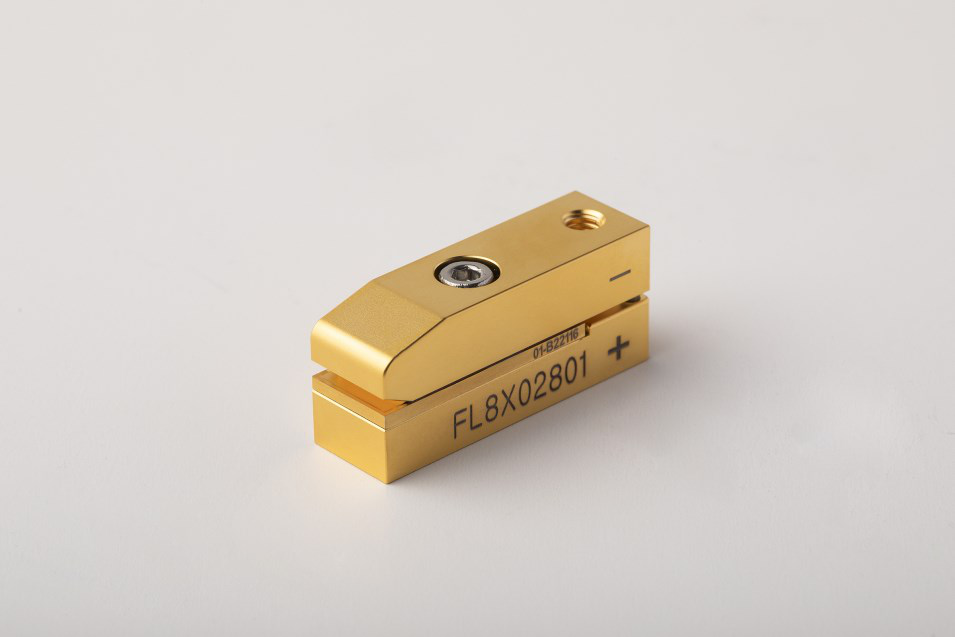

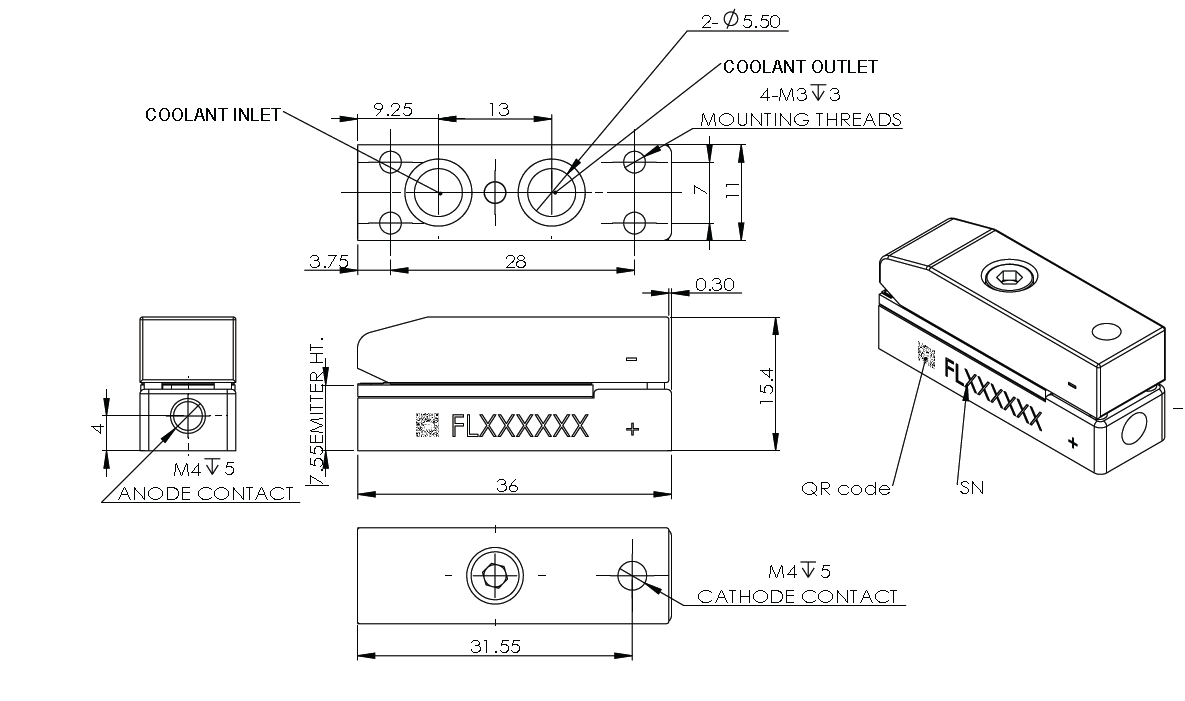

Micro-Channel Water Cooled Single Bar Diode Laser
The MCC09 series is a high-performance micro-channel water-cooled single bar diode laser designed for applications requiring high power, narrow spectrum, and long lifetime.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operation Mode FL-MCC09-100-808 | CW |
| Operation Mode FL-MCC09-120-940 | CW |
| Operation Mode FL-MCC09-500-808(Q) | QCW |
| Operation Mode FL-MCC09-500-940(Q) | QCW |
| Centroid Wavelength FL-MCC09-100-808 | 808nm |
| Centroid Wavelength FL-MCC09-120-940 | 940nm |
| Centroid Wavelength FL-MCC09-500-808(Q) | 808nm |
| Centroid Wavelength FL-MCC09-500-940(Q) | 940nm |
| Wavelength Tolerance FL-MCC09-100-808 | ±3nm |
| Wavelength Tolerance FL-MCC09-120-940 | ±3nm |
| Wavelength Tolerance FL-MCC09-500-808(Q) | ±5nm |
| Wavelength Tolerance FL-MCC09-500-940(Q) | ±5nm |
| Output Power FL-MCC09-100-808 | 100W |
| Output Power FL-MCC09-120-940 | 120W |
| Output Power FL-MCC09-500-808(Q) | 500W |
| Output Power FL-MCC09-500-940(Q) | 500W |
| Spectral Width FWHM FL-MCC09-100-808 | ≤3nm |
| Spectral Width FWHM FL-MCC09-120-940 | ≤3nm |
| Spectral Width FWHM FL-MCC09-500-808(Q) | ≤4nm |
| Spectral Width FWHM FL-MCC09-500-940(Q) | ≤5nm |
| Spectral Width 90% Energy FL-MCC09-100-808 | ≤6nm |
| Spectral Width 90% Energy FL-MCC09-120-940 | ≤6nm |
| Spectral Width 90% Energy FL-MCC09-500-808(Q) | ≤6nm |
| Spectral Width 90% Energy FL-MCC09-500-940(Q) | ≤6nm |
| Pulse Width FL-MCC09-500-808(Q) | 200μs |
| Pulse Width FL-MCC09-500-940(Q) | 600μs |
| Duty Cycle FL-MCC09-500-808(Q) | ≤8% |
| Duty Cycle FL-MCC09-500-940(Q) | ≤8% |
| Fast Axis Divergence (FWHM) FL-MCC09-100-808 | 35°(typical) |
| Fast Axis Divergence (FWHM) FL-MCC09-120-940 | 45°(typical) |
| Fast Axis Divergence (FWHM) FL-MCC09-500-808(Q) | 45°(typical) |
| Fast Axis Divergence (FWHM) FL-MCC09-500-940(Q) | 45°(typical) |
| Slow Axis Divergence (FWHM) FL-MCC09-100-808 | 8°(typical) |
| Slow Axis Divergence (FWHM) FL-MCC09-120-940 | 10°(typical) |
| Slow Axis Divergence (FWHM) FL-MCC09-500-808(Q) | 10°(typical) |
| Slow Axis Divergence (FWHM) FL-MCC09-500-940(Q) | 10°(typical) |
| Polarization Mode FL-MCC09-100-808 | TE |
| Polarization Mode FL-MCC09-120-940 | TE |
| Polarization Mode FL-MCC09-500-808(Q) | TE |
| Polarization Mode FL-MCC09-500-940(Q) | TE |
| Wavelength Temp. Coefficient FL-MCC09-100-808 | ~0.28nm/°C |
| Wavelength Temp. Coefficient FL-MCC09-120-940 | ~0.34nm/°C |
| Wavelength Temp. Coefficient FL-MCC09-500-808(Q) | ~0.28nm/°C |
| Wavelength Temp. Coefficient FL-MCC09-500-940(Q) | ~0.34nm/°C |
| Operation Current FL-MCC09-100-808 | ≤100A |
| Operation Current FL-MCC09-120-940 | ≤120A |
| Operation Current FL-MCC09-500-808(Q) | ≤450A |
| Operation Current FL-MCC09-500-940(Q) | ≤450A |
| Threshold Current FL-MCC09-100-808 | ≤30A |
| Threshold Current FL-MCC09-120-940 | ≤35A |
| Threshold Current FL-MCC09-500-808(Q) | ≤35A |
| Threshold Current FL-MCC09-500-940(Q) | ≤35A |
| Operating Voltage per Bar FL-MCC09-100-808 | ≤2V |
| Operating Voltage per Bar FL-MCC09-120-940 | ≤2V |
| Operating Voltage per Bar FL-MCC09-500-808(Q) | ≤2.2V |
| Operating Voltage per Bar FL-MCC09-500-940(Q) | ≤2.2V |
| Slope Efficiency per Bar FL-MCC09-100-808 | ≥1.1W/A |
| Slope Efficiency per Bar FL-MCC09-120-940 | ≥1.1W/A |
| Slope Efficiency per Bar FL-MCC09-500-808(Q) | ≥1.1W/A |
| Slope Efficiency per Bar FL-MCC09-500-940(Q) | ≥1.1W/A |
| Power Conversion Efficiency FL-MCC09-100-808 | ≥50% |
| Power Conversion Efficiency FL-MCC09-120-940 | ≥55% |
| Power Conversion Efficiency FL-MCC09-500-808(Q) | ≥50% |
| Power Conversion Efficiency FL-MCC09-500-940(Q) | ≥55% |
| Operating Temperature FL-MCC09-100-808 | 20–30°C |
| Operating Temperature FL-MCC09-120-940 | 20–30°C |
| Operating Temperature FL-MCC09-500-808(Q) | 20–30°C |
| Operating Temperature FL-MCC09-500-940(Q) | 20–30°C |
