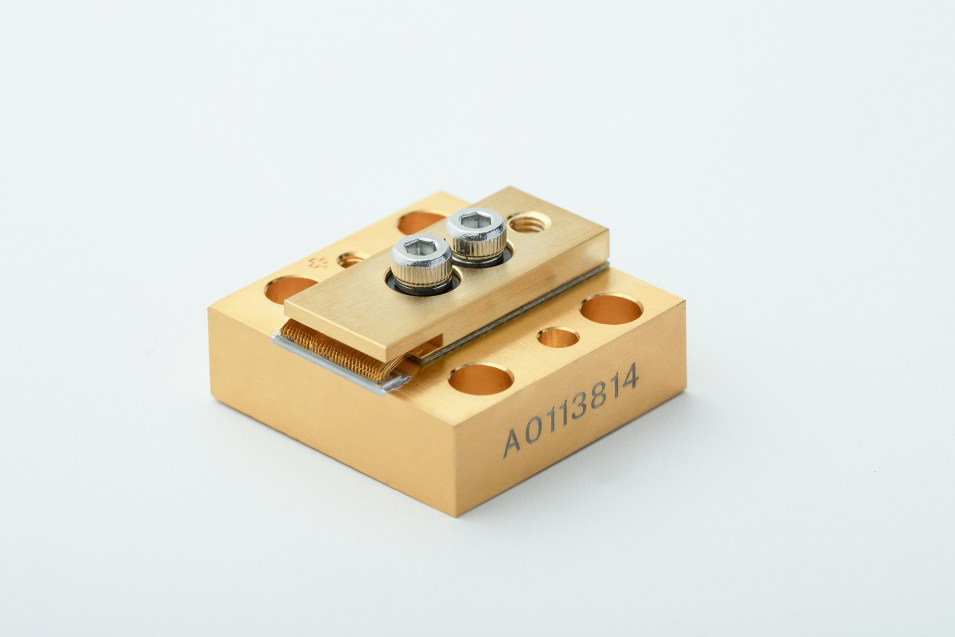

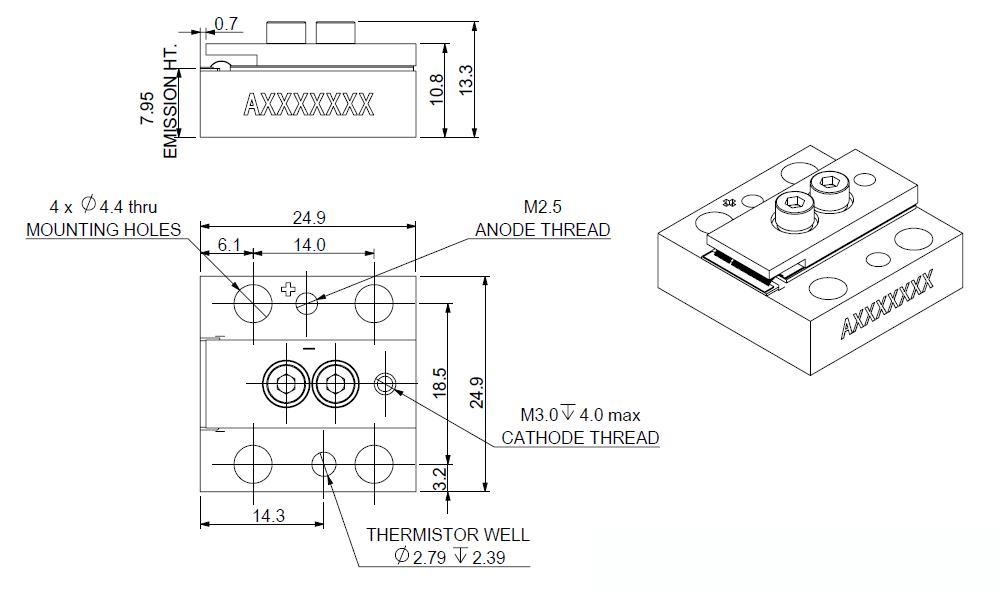

Conduction Cooled Single Bar Diode Laser (CW) HCS02
The HCS02 is a conduction-cooled single bar diode laser designed for high performance in harsh environments. It features AuSn bonding and low smile, ensuring reliability and precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Centroid Wavelength 808nmModel | 808 |
| Centroid Wavelength 940nmModel | 940 |
| Centroid Wavelength 976nmModel | 976 |
| Centroid Wavelength 1060nmModel | 1060 |
| Wavelength Tolerance 808nmModel | ±3 |
| Wavelength Tolerance 940nmModel | ±15 |
| Wavelength Tolerance 976nmModel | ±15 |
| Wavelength Tolerance 1060nmModel | / |
| Output Power 808nmModel | 60W |
| Output Power 940nmModel | 80W |
| Output Power 976nmModel | 80W |
| Output Power 1060nmModel | 60W |
| Emitter Size 808nmModel | 100μm |
| Emitter Size 940nmModel | 100μm |
| Emitter Size 976nmModel | 100μm |
| Emitter Size 1060nmModel | 200μm |
| Fill Factor 808nmModel | 20% |
| Fill Factor 940nmModel | 20% |
| Fill Factor 976nmModel | 20% |
| Fill Factor 1060nmModel | 50% |
| Spectral Width FWHM 808nmModel | ≤4nm |
| Spectral Width FWHM 940nmModel | ≤4.5nm |
| Spectral Width FWHM 976nmModel | ≤4.5nm |
| Spectral Width FWHM 1060nmModel | / |
| Spectral Width 90% Energy 808nmModel | ≤8° |
| Spectral Width 90% Energy 940nmModel | ≤8° |
| Spectral Width 90% Energy 976nmModel | ≤8° |
| Spectral Width 90% Energy 1060nmModel | ≤8° |
| Fast Axis Divergence 808nmModel | <0.5° |
| Fast Axis Divergence 940nmModel | <0.5° |
| Fast Axis Divergence 976nmModel | <0.5° |
| Fast Axis Divergence 1060nmModel | <0.5° |
| Slow Axis Divergence FWHM 808nmModel | ≤8° |
| Slow Axis Divergence FWHM 940nmModel | ≤8° |
| Slow Axis Divergence FWHM 976nmModel | ≤8° |
| Slow Axis Divergence FWHM 1060nmModel | ≤8° |
| Polarization Mode 808nmModel | TE |
| Polarization Mode 940nmModel | TE |
| Polarization Mode 976nmModel | TE |
| Polarization Mode 1060nmModel | TE |
| Wavelength Temp. Coefficient 808nmModel | ~0.28nm/°C |
| Wavelength Temp. Coefficient 940nmModel | ~0.33nm/°C |
| Wavelength Temp. Coefficient 976nmModel | ~0.34nm/°C |
| Wavelength Temp. Coefficient 1060nmModel | ~0.4nm/°C |
| Operation Current 808nmModel | ≤70A |
| Operation Current 940nmModel | ≤90A |
| Operation Current 976nmModel | ≤90A |
| Operation Current 1060nmModel | ≤75A |
| Threshold Current 808nmModel | ≤10A |
| Threshold Current 940nmModel | ≤12A |
| Threshold Current 976nmModel | ≤12A |
| Threshold Current 1060nmModel | ≤12A |
| Operating Voltage/Bar 808nmModel | ≤2V |
| Operating Voltage/Bar 940nmModel | ≤2V |
| Operating Voltage/Bar 976nmModel | ≤2V |
| Operating Voltage/Bar 1060nmModel | ≤2V |
| Slope Efficiency/Bar 808nmModel | ≥1W/A |
| Slope Efficiency/Bar 940nmModel | ≥1.1W/A |
| Slope Efficiency/Bar 976nmModel | ≥1.1W/A |
| Slope Efficiency/Bar 1060nmModel | ≥0.9W/A |
| Power Conversion Efficiency 808nmModel | ≥50% |
| Power Conversion Efficiency 940nmModel | ≥50% |
| Power Conversion Efficiency 976nmModel | ≥50% |
| Power Conversion Efficiency 1060nmModel | ≥50% |
| Operating Temperature 808nmModel | 15–35°C |
| Operating Temperature 940nmModel | 15–35°C |
| Operating Temperature 976nmModel | 15–35°C |
| Operating Temperature 1060nmModel | 15–35°C |
| Storage Temperature 808nmModel | -40–55°C |
| Storage Temperature 940nmModel | -40–55°C |
| Storage Temperature 976nmModel | -40–55°C |
| Storage Temperature 1060nmModel | -40–55°C |
| Recommended Heatsink Capacity 808nmModel | ≥120W |
| Recommended Heatsink Capacity 940nmModel | ≥160W |
| Recommended Heatsink Capacity 976nmModel | ≥160W |
| Recommended Heatsink Capacity 1060nmModel | ≥120W |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
MF2-980F-40C-40022
Laser Diodes
Bwt
CW Output Power: 40W Center Wavelength: 980±10nm Spectral Width (FWHM): <6nm
The MF2-980F-40C-40022 is a conduction-cooled, single-bar fiber-coupled diode laser module from BWT. It delivers 40W CW output power at a center wavelength of 980±10nm through a detachable 400μm/0.22NA multimode fiber with an HP-SMA905 connector (free standing fiber tips). With high electro-optical conversion efficiency (>45%), a compact sealed and electrically insulated housing, and rich monitoring options such as red aiming beam, PD monitoring, fiber/housing temperature sensors and fiber interlock monitoring, the module is an ideal high-brightness laser source for medical and scientific research applications.
-
