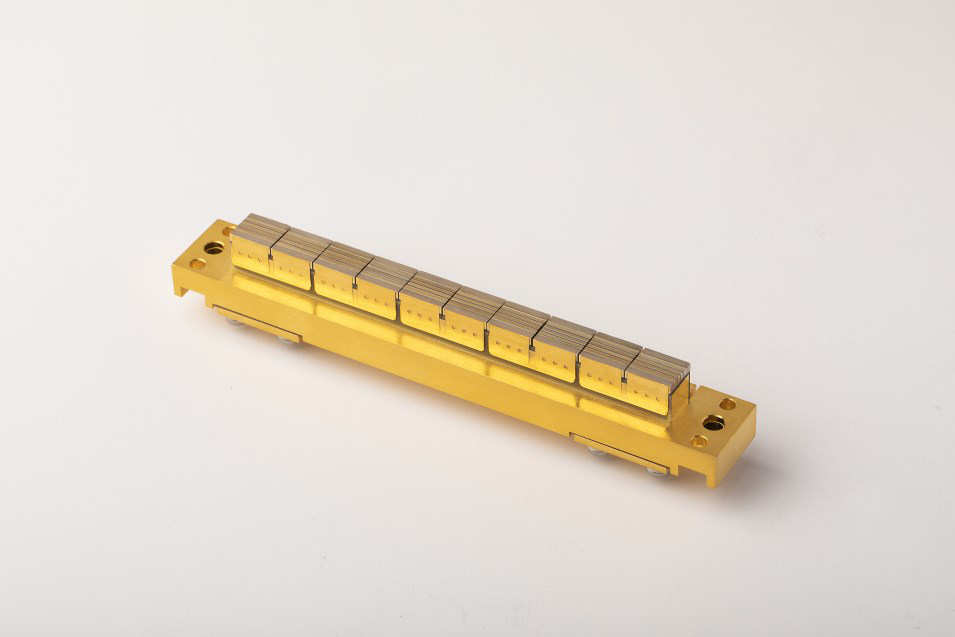

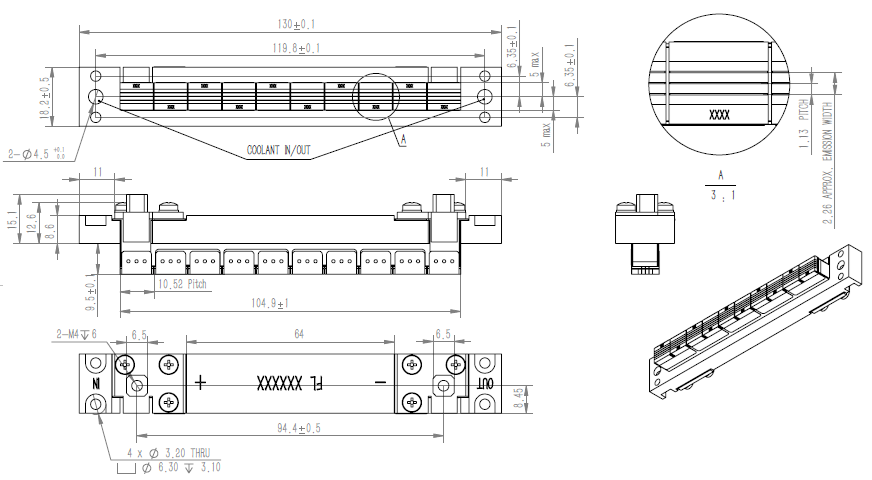

Conduction Cooled QCW Vertical Stack Diode Laser AA05 Series
The AA05 Series is a conduction-cooled QCW vertical stack diode laser designed for high reliability and compact size, suitable for demanding applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operation Mode | QCW |
| Pulse Width (μs) GST000002 | 330 |
| Pulse Width (μs) GST000003 | 250 |
| Duty Cycle (%) GST000002 | 6.6% |
| Duty Cycle (%) GST000003 | 6.6% |
| Bar Pitch (mm) | 1.13mm |
| Centroid Wavelength (nm) GST000002 | 807nm |
| Centroid Wavelength (nm) GST000003 | 808nm |
| Wavelength Tolerance (nm) GST000002 | ±2nm |
| Wavelength Tolerance (nm) GST000003 | ±3nm |
| Output Power per Bar (W) GST000002 | 200W |
| Output Power per Bar (W) GST000003 | 200W |
| Number of Bars GST000002 | 30 |
| Number of Bars GST000003 | 24 |
| Spectral Width FWHM (nm) GST000002 | ≤4nm |
| Spectral Width FWHM (nm) GST000003 | ≤5nm |
| Spectral Width 90% Energy (nm) GST000002 | ≤7nm |
| Spectral Width 90% Energy (nm) GST000003 | ≤7nm |
| Fast Axis Divergence (FWHM) (°) | 35 (typical)° |
| Slow Axis Divergence (FWHM) (°) | 8 (typical)° |
| Wavelength Temp. Coefficient (nm/°C) | ~0.28 |
| Operation Current (A) | ≤230A |
| Threshold Current (A) | ≤40A |
| Operating Voltage per Bar (V) | ≤2V |
| Slope Efficiency per Bar (W/A) | ≥1W/A |
| Operating Temperature (°C) | 18–25 |
| Storage Temperature (°C) | -55–85°C |
