0603 Green Light LED
Compact and eco-friendly LED with dimensions of 1.6×0.8×0.6mm, suitable for various applications such as backlighting, indicator lighting, and infrared systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Appearance Dimensions | 1.6×0.8×0.6mm |
| Luminous Color | Green Light |

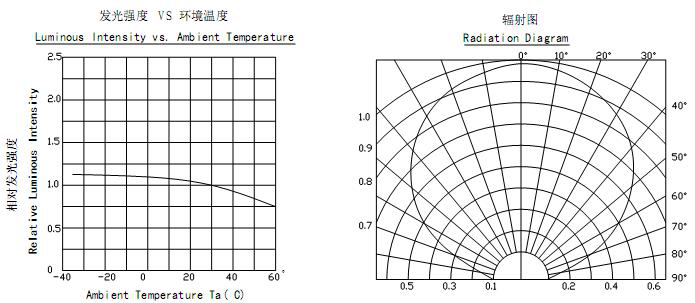

| Half Power View | 120° |
| Power Dissipation | 90mW |
| Max Pulse Current | 100mA |
| DC Forward Current | 30mA |
| Reverse breakdown Voltage | 5V |
| Electrostatic Discharge Threshold (HBM) | 2000V |
| Operating Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |

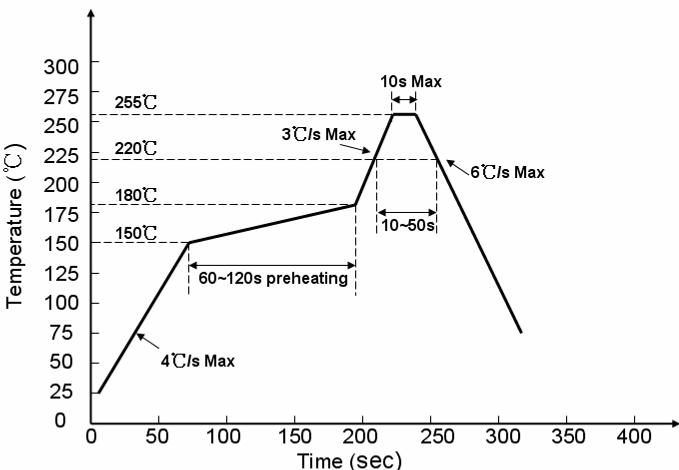

| Soldering Temperature | Reflow soldering: 260℃/10s, Hands soldering: 320℃/3s |
| Luminous Intensity | 900-1500mcd |
| Dominant wavelength | 520-525nm |
| Forward Voltage | 2.8-3.4V |
| Peak Wavelength | 518nm |
| Spectrum Radiation Bandwidth | 29nm |
| Reverse Current | 10uA |
