Photonics Source provides 27 products. Download datasheets, request quotes, and compare function, price, and availability.
-
Optical Lens
Diameter: 25mm Thickness: 5mm Material: Optical glass Surface Quality: 40/20 Focal Length: 50mm -
Infrared Lens
Outer Diameter: 44mm Object Distance: 27~30mm Total Length: 50.1~54.1mm Back Focal Length: 16.5mm Thread Interface: M34×0.5-6g -
Optical Lens
Material: Optical glass Diameter: Customizable Focal Length: Customizable Surface Quality: 40/20 Coating Type: AR coating -

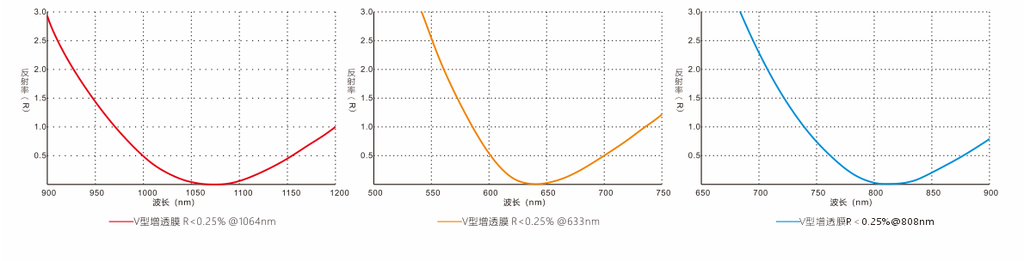

V型增透膜
Reflectance at 1064nm: <0.25% Reflectance at 633nm: <0.25% Reflectance at 808nm: <0.25% -
Optical Collimator
Outer Diameter: Φ46±0.1 Length: 102 Thread Specification: M45×0.75-6g Optical Aperture: Φ31 Front Thickness: 6 -
Optical Lens Module
Mounting Base: 51.5 Reserved Adjusted Back Focal Length: 0.5 Distance from Image Plane to Rear End of Lens: 9.7±0.2 Lens Diameter: 51.5 -
Unknown
Outer Diameter: 62.5mm Total Length: 60mm Mounting Hole Spacing: 45mm Mounting Hole Diameter: 4mm Flange Thickness: 2.5mm -
Optical Lens
Outer Diameter: Φ72±0.1 Length: 80±0.1 Interface Thread: M31×0.75-6g Rear End Diameter: Φ36 Rear End Length: 14.5 -
Unknown
Outer Diameter: 70±0.1mm Length: 66.6±0.1mm Interface Thread: M34×0.5-6g Rear Diameter: 37mm Rear Length: 17mm -
Optical Lens
Outer Diameter: 90±0.1 Inner Diameter: 52±0.1 Length: 90±0.1 Front End Diameter: 21.6±0.7 Rear End Diameter: 30.1±0.2 -
Infrared Lens
Outer Diameter: 73mm Back Working Distance: 11mm Focal Plane Array (FPA) Position: 46±0.08mm Total Length: 81.5mm Back Focal Length (BFL): 28.75mm -
Unknown
Outer Diameter: 69±0.1mm Mounting Hole Diameter: 74mm Total Length: 78mm Distance from Optical Axis to Mounting Surface: 10.5mm Number of Mounting Holes: 4 -
Infrared Lens
Outer Diameter: 60-0.1mm Total Length: 60.3mm Front End Diameter: 60mm Rear End Diameter: 14.5mm Rear End Thread Size: M34×0.75-6g -
Infrared Lens
Outer Diameter: 48mm Total Length: 47.7mm Optical Focal Position: 27.2mm Thread Specification: M35×0.75 Back Focal Length: 11.2mm -
Unknown
Outer Diameter: 46±0.1mm Total Length: 39.2±0.1mm Thread Interface: M32×0.75-6g Optical Center: 9.5±0.3mm Back Focal Length: 23.6±0.3mm -
Wide-Angle Lens
Outer Diameter: 57mm Total Length: 41.15mm Thread Specification: M36×0.5-6g Front Lens Diameter: 36mm Front Lens Thickness: 3mm -
Unknown
Outer Diameter: Φ48 Total Length: 36.2±0.2 Thread Specification: M34×0.75 Mirror Surface Position: 9.6±0.2 Mirror Surface Position 2: 14.6±0.2 -
Infrared Lens
Outer Diameter: 30±0.1mm Total Length: 22.53mm Front Lens Diameter: 18.8±0.05mm Thread Size: M25×0.5-6g Back Focal Length: 8.9mm -
Unknown
Outer Diameter: Ø156±0.10 Mounting Hole Diameter: Ø5.5 Number of Mounting Holes: 6 Flange Outer Diameter: Ø60±0.10 Total Length: 150.8 -
Infrared Lens
Outer Diameter: 36-0.1 Total Length: 22.05-0.1 Front Length: 13.5±0.2 Rear Length: 9±0.2 Thread Specification: M34×0.75-6g
