1060nm Broadband High Power Polarization Insensiitive Isolator
Save to Favorites

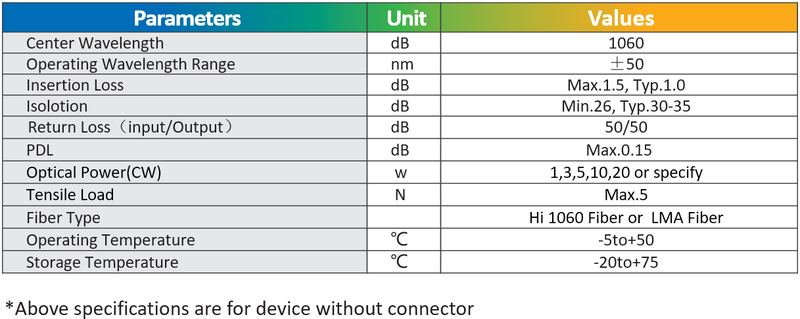

Specifications
| Parameter | Value |
|---|---|
| Center Wavelength [Above specifications are for device without connector] | 1060 |
| Operating Wavelength Range [Above specifications are for device without connector] | ±50 nm |
| Insertion Loss [Above specifications are for device without connector] | typical:1.0 dB；max:1.5 dB |
| Isolation [Above specifications are for device without connector] | min:26 dB；typical:30-35 dB |
| Return Loss(input/Output) [Above specifications are for device without connector] | 50/50 |
| PDL [Above specifications are for device without connector] | max:0.15 dB |
| Optical Power(CW) [Above specifications are for device without connector / CW; rating options do not generate models] | 1,3,5,10,20 or specify |
| Tensile Load [Above specifications are for device without connector] | max:5 N |
| Fiber Type [Above specifications are for device without connector] | Hi1060 Fiber or LMA Fiber |
| Operating Temperature [Above specifications are for device without connector] | -5to+50 °C |
| Storage Temperature [Above specifications are for device without connector] | -20to+75 °C |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Collimated-Output Isolator BEISO-P300-F01-1064-6-3
Fiber Optic Isolators
Iloptik
Product specifications - Operating wavelength: 1050-1080 nm Product specifications - Average Power: ≤300 W Product Specifications-M2 Degradation: ＜10%
Jingzhi provides beam-expanded-output fiber-laser isolators for 20W-1000W. Suitable for industry, defense and new energy, they help address critical domestic high-power-laser-system bottlenecks and support upgrades in laser-equipment manufacturing.
-

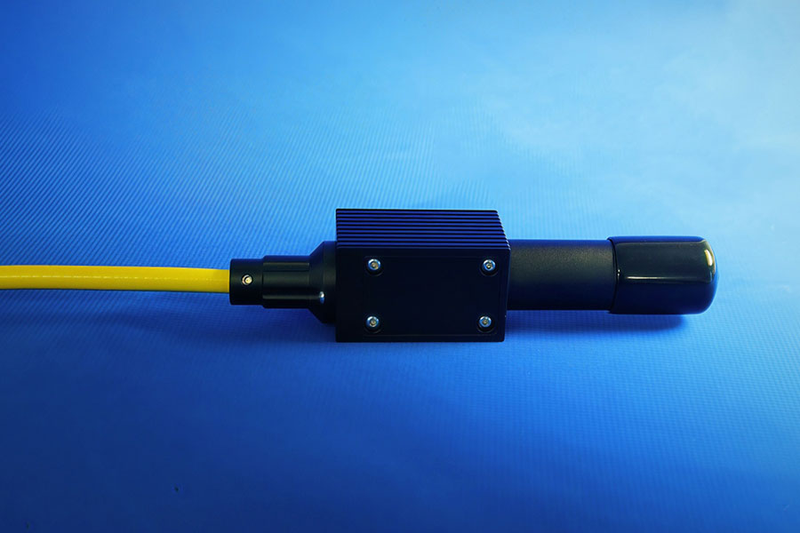

Collimated-Output Isolator BEISO-P1000-F01-1064-6-3
Fiber Optic Isolators
Iloptik
Product specifications - Operating wavelength: 1050-1080 nm Product specifications - Average Power: ≤1000 W Product Specifications-M2 Degradation: ＜10%
Jingzhi provides beam-expanded-output fiber-laser isolators for 20W-1000W. Suitable for industry, defense and new energy, they help address critical domestic high-power-laser-system bottlenecks and support upgrades in laser-equipment manufacturing.
-
In-Line Isolator ILISO-P2-F01-1064-NF-L-1（YIG）
Fiber Optic Isolators
Iloptik
Operating wavelength: 1060-1070 nm Average Power: ≤2 W Insertion loss (dB)@23°C: ≤1.6-3 dB
Low insertion loss, high isolation and high return loss ensure signal stability. The operating wavelengths cover common bands and support high power (specific figures may be added). Fiber ends support bare fiber and common connectors such as FC/APC and SC/PC for easy integration across applications.
-

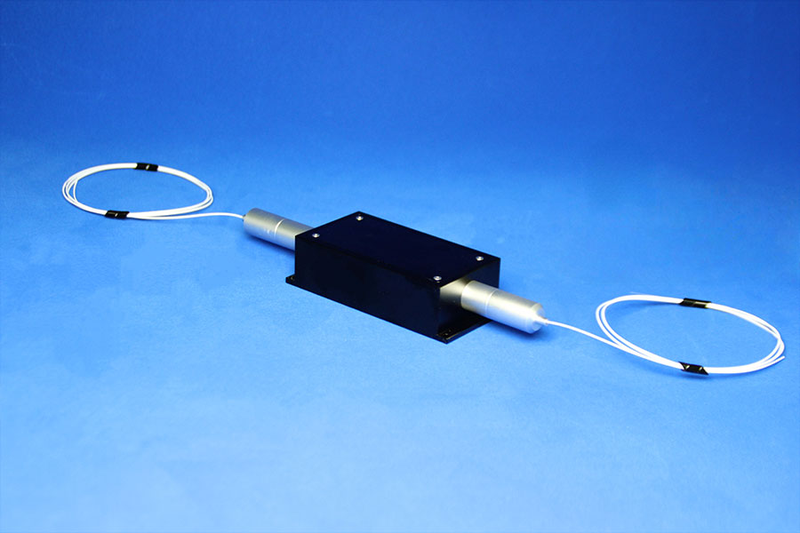

In-Line Isolator ILISO-P2-F01-1064-NF-L-1（TGG）
Fiber Optic Isolators
Iloptik
Operating wavelength: 1060-1070 nm Average Power: ≤2 W Insertion loss (dB)@23°C: ≤1.0 dB
Low insertion loss, high isolation and high return loss ensure signal stability. The operating wavelengths cover common bands and support high power (specific figures may be added). Fiber ends support bare fiber and common connectors such as FC/APC and SC/PC for easy integration across applications.
-

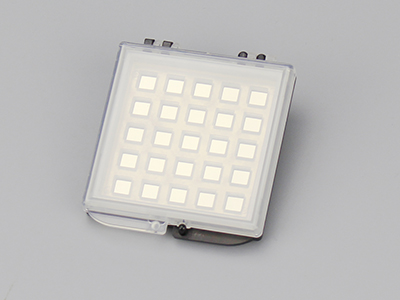

GLQ25---2
