Fused biconical taper splitting coupler
Agilecom's fused-biconical-taper splitter couplers use distinctive materials and manufacturing processes to precisely control fiber positioning, tapering and packaging. They provide low insertion loss, low wavelength-dependent loss and low polarization-dependent loss, with good consistency and environmental stability. Split ratios, operating wavelengths, connector types and packages can be configured for different product designs and projects.
Save to Favorites
Overview
Specifications

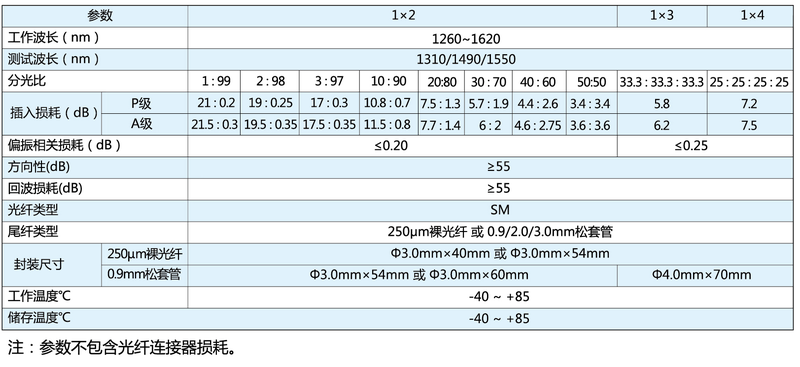

| Parameter | Value |
|---|---|
| Split Ratio [Configuration ：1×2] | 1:99 |
| Split Ratio [Configuration ：1×2] | 2:98 |
| Split Ratio [Configuration ：1×2] | 3:97 |
| Split Ratio [Configuration ：1×2] | 10:90 |
| Split Ratio [Configuration ：1×2] | 20:80 |
| Split Ratio [Configuration ：1×2] | 30:70 |
| Split Ratio [Configuration ：1×2] | 40:60 |
| Split Ratio [Configuration ：1×2] | 50:50 |
| Split Ratio [Configuration ：1×3] | 33.3:33.3:33.3 |
| Split Ratio [Configuration ：1×4] | 25:25:25:25 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:1:99 / Grade P / Specifications exclude fiber connector loss.] | 21:0.2 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:2:98 / Grade P / Specifications exclude fiber connector loss.] | 19:0.25 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:3:97 / Grade P / Specifications exclude fiber connector loss.] | 17:0.3 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:10:90 / Grade P / Specifications exclude fiber connector loss.] | 10.8:0.7 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:20:80 / Grade P / Specifications exclude fiber connector loss.] | 7.5:1.3 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:30:70 / Grade P / Specifications exclude fiber connector loss.] | 5.7:1.9 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:40:60 / Grade P / Specifications exclude fiber connector loss.] | 4.4:2.6 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:50:50 / Grade P / Specifications exclude fiber connector loss.] | 3.4:3.4 |
| Insertion Loss [Configuration:1×3 / Splitting ratio:33.3:33.3:33.3 / Grade P / Specifications exclude fiber connector loss.] | 5.8 dB |
| Insertion Loss [Configuration:1×4 / Splitting ratio:25:25:25:25 / Grade P / Specifications exclude fiber connector loss.] | 7.2 dB |
| Insertion Loss [Configuration:1×2 / Splitting ratio:1:99 / Grade A / Specifications exclude fiber connector loss.] | 21.5:0.3 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:2:98 / Grade A / Specifications exclude fiber connector loss.] | 19.5:0.35 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:3:97 / Grade A / Specifications exclude fiber connector loss.] | 17.5:0.35 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:10:90 / Grade A / Specifications exclude fiber connector loss.] | 11.5:0.8 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:20:80 / Grade A / Specifications exclude fiber connector loss.] | 7.7:1.4 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:30:70 / Grade A / Specifications exclude fiber connector loss.] | 6:2 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:40:60 / Grade A / Specifications exclude fiber connector loss.] | 4.6:2.75 |
| Insertion Loss [Configuration:1×2 / Splitting ratio:50:50 / Grade A / Specifications exclude fiber connector loss.] | 3.6:3.6 |
| Insertion Loss [Configuration:1×3 / Splitting ratio:33.3:33.3:33.3 / Grade A / Specifications exclude fiber connector loss.] | 6.2 dB |
| Insertion Loss [Configuration:1×4 / Splitting ratio:25:25:25:25 / Grade A / Specifications exclude fiber connector loss.] | 7.5 dB |
| Polarization Dependent Loss [Configuration ：1×2 / Specifications exclude fiber connector loss.] | ≤0.20 dB |
| Polarization Dependent Loss [Configuration ：1×3 / 1×4 / Specifications exclude fiber connector loss.] | ≤0.25 dB |
| Operating Wavelength [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | 1260~1620 nm |
| Test wavelength [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | 1310/1490/1550 |
| Directivity [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | ≥55 dB |
| Return Loss [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | ≥55 dB |
| Fiber Type [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | SM |
| Pigtail type [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | 250μm Bare fiber or 0.9/2.0/3.0mm Loose tube |
| Operating Temperature [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | -40~+85 °C |
| Storage Temperature [Configuration ：1×2 / 1×3 / 1×4 / Specifications exclude fiber connector loss.] | -40~+85 °C |
| Package dimensions [Pigtail ：250μm Bare fiber / Configuration ：1×2 / 1×3 / 1×4] | Φ3.0mm×40mm or Φ3.0mm×54mm |
| Package dimensions [Pigtail:0.9mm Loose tube / Configuration:1×2] | Φ3.0mm×54mm or Φ3.0mm×60mm |
| Package dimensions [Pigtail:0.9mm Loose tube / Configuration:1×3 / 1×4] | Φ4.0mm×70mm |
