VDS30-BX03-C VDS30 series (5-megapixel) monochrome vision sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Smart vision sensor |
| Housing Style | Square Type |
| Detection distance | Depends on lens |
| Field of view | Depends on lens |
| Focal Length | Depends on lens |
| Focusing method | C-mount |
| Frame rate | 30fps |
| Imaging color | Monochrome |
| Shutter | Global |
| Indicator light | 5 status LEDs and buzzer |
| Algorithms and tools | Positioning: Position correction Presence: Pattern presence/Spot presence/Edge presence/Circle presence Counting: Pattern counting/Spot counting/Edge counting Recognition: Character recognition/Code reading/Registration Classification Geometry: Circle finding/Line finding/Corner finding Detection: Width detection/Spot detection/Pattern detection/Grayscale area Measurement: Point-to-point distance, point-to-line distance, line-to-line distance, line-to-line angle Calibration: Checkerboard calibration/Hand-eye calibration Logic: Logic judgment/Numerical ranking |
| Pixel size | 2.74 μm × 2.74 μm |
| Sensor size | 1/8" |
| Exposure time | 20μs~1s |
| Operating voltage | 24V DC |
| Power consumption | 5W |
| Output Mode | Two-channel input control; optocoupler isolated input; supports NPN/PNP type; three-channel non-isolated output |
| Communication Protocol | TCP Server/TCP Client/Modbus TCP/Modbus RTU/ProfiNet/Ethernet/IP/MELSEC/SLMP/Serial |
| Communication Interface | RS232/RJ45 |
| Operating Temperature | 0~45℃ (No Freezing) |
| Storage Temperature | -20℃~70℃ (non-freezing) |
| Working Humidity | 5%~95% RH (no condensation) |
| Storage humidity | 5%~95% RH (no condensation) |
| Protection Rating | IP67 |
| Connection Method | M12/8-pin connector + M12/12-pin connector |

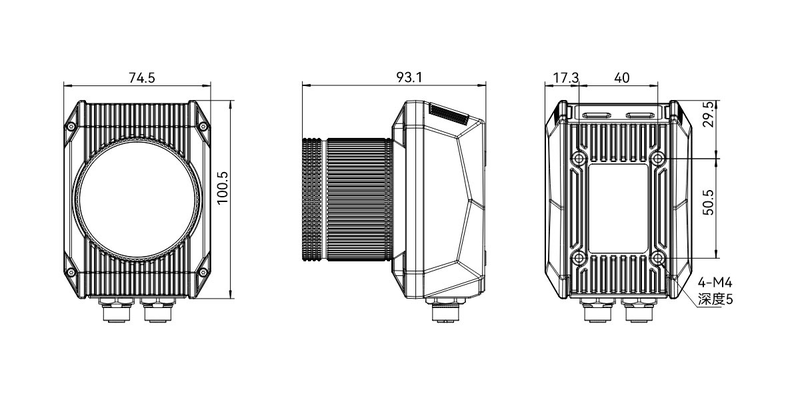

| Dimensions | 100.5x74.5x93.1mm (including lens protection cover) |
| Weight | Approx. 450g |
| Accessories | M12-8PIN-3M (high-flex), M12-12PIN-3M (high-flex), L-shaped bracket, 24V power adapter (optional), screw kit |
