RCD-AI100-F06R RCD series fixed-mount code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Square Type |
| Detection distance | Standard: 180mm; Code 39 (5mil): 85~220mm; Code 128 (10mil): 51~415mm; QR Code (15mil): 42~313mm; Data Matrix (10mil): 60~150mm |
| Focusing method | Fixed focus |
| Frame rate | 60fps |
| Light source | Non-polarized red light |
| Imaging color | Monochrome |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC/Pharmacode; 2D codes: QR code/DataMatrix |
| Shutter | Global |
| Indicator light | 2 green light dots indicate the center area of the code scanning position; 2 status LEDs (code reading status, power status) and a buzzer |
| Pixel size | 3 μm × 3 μm |
| Exposure time | 20μs~100000μs |
| Gain | 0~255dB |
| Operating voltage | 24V DC；USB：5V DC |
| Power consumption | 5W |
| Output Mode | Two non-isolated inputs; two non-isolated outputs |
| Communication Protocol | TCP Server/TCP Client/Modbus TCP/Modbus RTU/ProfiNet/Ethernet/IP/MELSEC/SLMP/Fins/Serial |
| Communication Interface | RS232/RJ45/USB |
| Operating Temperature | 0~45℃ (No Freezing) |
| Storage Temperature | -20℃~70℃ (non-freezing) |
| Working Humidity | 5%~95% RH (no condensation) |
| Storage humidity | 5%~95% RH (no condensation) |
| Protection Rating | IP54 |
| Connection Method | D-Sub/15-pin connector (30cm) |

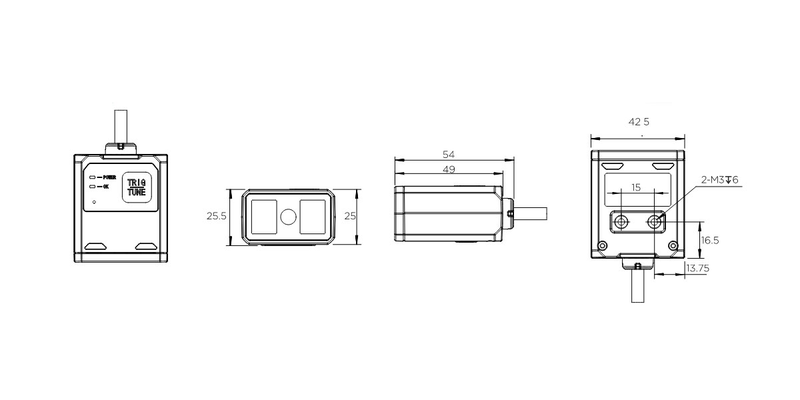

| Dimensions | 49 mm × 25.5 mm × 42.5 mm |
| Weight | Approx. 80g |
| Accessories | HDB15P-M-ETH-3M (Ethernet port, standard flexible) or HDB15P-1M-USB-3M (USB port, standard flexible); L-shaped bracket; screw kit |
