RCD25-AI120-HF5120BB2 RCD25 series fixed-mount code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Square Type |
| Detection distance | 60~120mm |
| Field of view | Horizontal: 41°; Vertical: 30.8° |
| Focal Length | 4.8mm |
| Focusing method | Fixed focal length |
| Frame rate | 120fps |
| Illumination system | Polarized |
| Light source | Blue LED |
| Imaging color | Monochrome |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC; 2D codes: QR code/DataMatrix |
| Shutter | Global |
| Aimer | 2 green LED dots |
| Indicator light | 2 green light dots indicate the center area of the code scanning position |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/5.5" |
| Exposure time | 80μs~30000μs |
| Gain | 1~8dB |
| Operating voltage | 24V DC |
| Power consumption | 5W |
| Barcode grade verification | ISO/IEC 15415，ISO/IEC 16022，ISO/IEC TR29158（AIMDPM-1-2006） |
| Output Mode | 2 non-polarized isolated IO inputs, 2 non-polarized isolated IO outputs |
| Communication Protocol | Modbus TCP，RS232 |
| Communication Interface | RS232 |
| Operating Temperature | -10℃~50℃（No Freezing） |
| Storage Temperature | -20℃~70℃ (non-freezing) |
| Working Humidity | 5%~95% RH (no condensation) |
| Storage humidity | 5%~95% RH (no condensation) |
| Protection Rating | IP42 |
| Connection Method | Cable type |

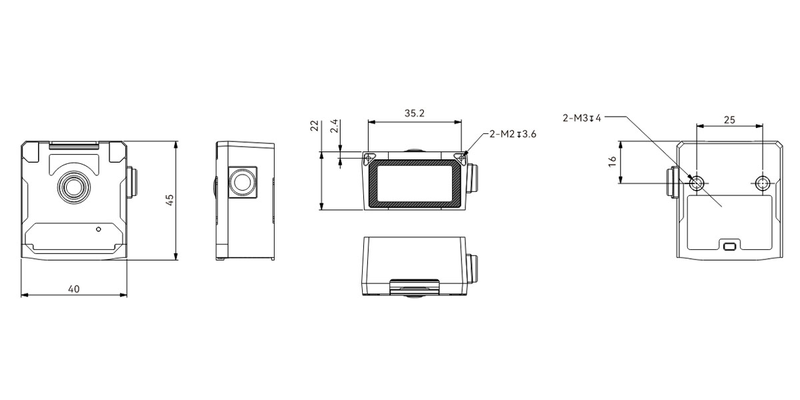

| Dimensions | 40 mm × 45 mm × 22 mm |
| Weight | Approx. 198g |
Datasheet
