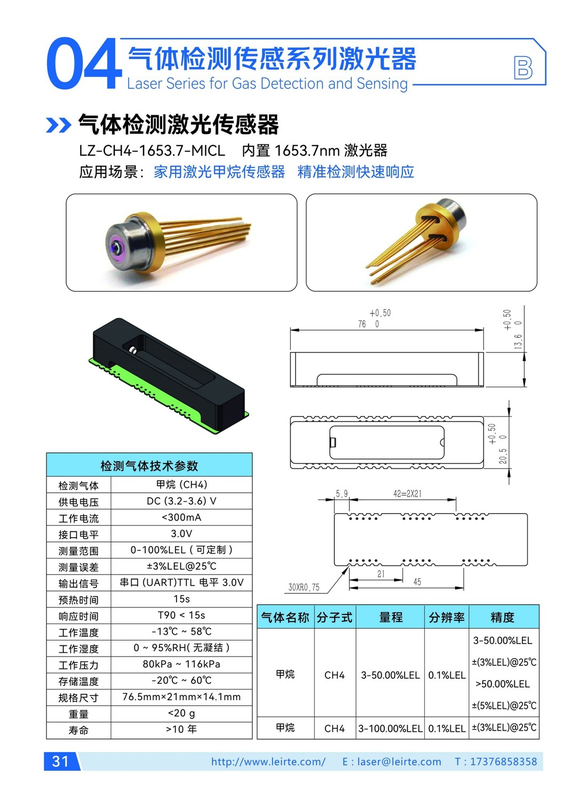

Gas detection laser sensors
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Shell temperature | min: 0; max: 70 |
| Laser's on the way | max: 100mA |
| Weld temperature | max: 260℃ |
| Welding Time | max: 10s |
| Output light power | min: 4; typ: 6; condition: CW, Iop=50mA |
| Voltage) | Iop=50mA |
| Serial resistion | Rs; Ω; CW, Iop=50mA; 15 |
| Power mutation | %; CW,Ith+5mA to 70mA; 30 |
| Central wavelength | λc; nm; CW, Tc=25℃, Iop=50mA; 1648.7; 1649.7; 1650.7 |
| Border Model Impression Ratio | SMSR; dB; CW, Iop=50mA; 35 |
| Temperature harmonization factor | Δλ; nm/℃; CW, Iop=50mA; 0.1 |
| Thermal sensitivity resistance value | max: 10.1k; condition: Tc=25℃ |
| Constants | max: 3969; condition: -K |
Datasheet
