E+S band Mixed Optical amplifier
E+S-band fibre-optic amplifiers are a broadband photo power amplifier product; they are widely used in fibre-optic communications; and have the advantage of high gain and low noise. Desktops, racks or modular seals can be made available according to client needs; parameters are accepted for customization. Work wavelength range; 1431-1521nm high gain low NF
Save to Favorites
Overview

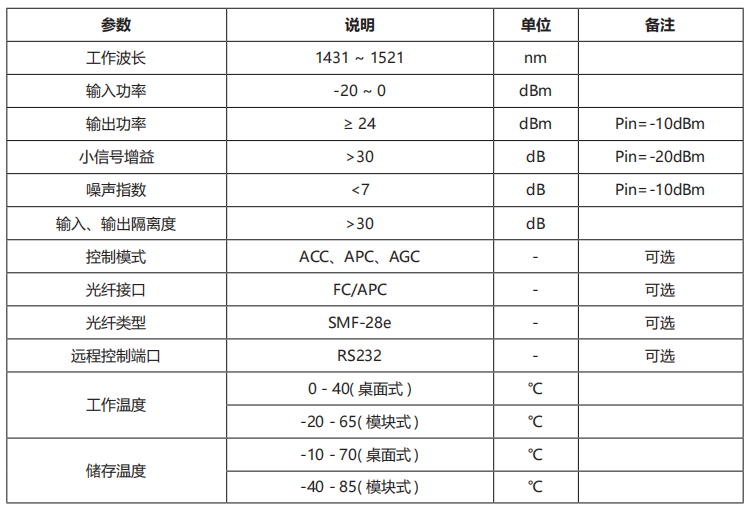

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | 1431 ~ 1521nm |
| Enter Power | -20~0dBm |
| Output Power | ≥v 24; condition: Pin=-10dBm |
| Small signal gain | >30; condition: Pin=-20dBm |
| Voice index | <7; condition: Pin=-10dBm |
| Control Mode | ACC, APC, AGC; condition: optional |
| Fibre interface | FC/APC; condition: optional |
| Fibre type | SMF-28e; condition: optional |
| Remote Control Port | RS232; condition: optional |
| Desktop formula | 0-40 (desktop)° |
| Module | 20-65 (modular)° |
| Desktop formula | -10-70 (desktop)℃ |
| Module | 40-85 (modular)℃ |
Applications
Datasheet
