PQE Series Large Energy Solid Laser
The RealShock solid laser in this series is a semiconductor pump passive Q solid laser developed on its own initiative with almonds; it has characteristics such as high energy, high value for money, low utility, etc. Semiconductor pump module and laser crystal integration design; small and compact; no water cooling. For applications such as LIBS and laser burner; special provision of miniaturized OEM control circuits; easy to install and integrate; especially suitable for handheld equipment
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1064nm |
| Repeat frequency | 10Hz |
| Single pulse energy | >10 |
| Power stability | <3% |
| Horizontal Full-Angle Divergence (1/e²) | 3 |
| Vertical Full-Angle Divergence (1/e²) | 3 |
| Refrigeration mode | It's cold |

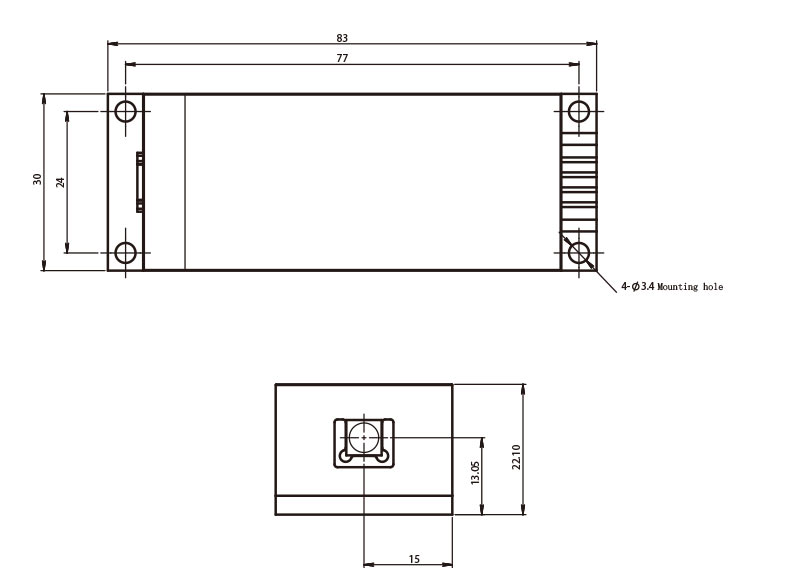

| Laser Head Size | 83×30×22.1 |
| Electricity input | 12VDC |
| System usage | 20W（MAX） |

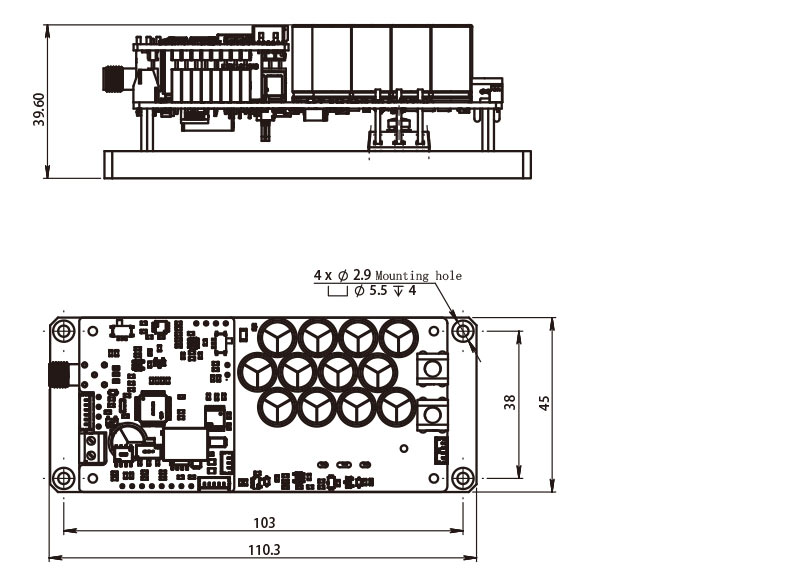

| Circuit plate size | 45×39.6×110.3 |
| Trigger Mode | Internal/external trigger |
Applications
Key Features
Datasheet
