MCO-series energy adjustable space output microfilm laser 266 nm
The MCO series RealSubns energy adjusts to subsecond space output micro-species lasers; internal energy-regulated electro-control modules; light-trigger output modules; and laser-driven circuits; small and compact structures; impregnated; space output; dispersive angles below 2 mrad
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1~200Hz |
| Space beam maximum output energy | 60; 30; 25; 15μJ |
| Energy stability@8h | <3% |
| Energy calibration step accuracy | 1% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | ≤2 |
| Vertical Full-Angle Divergence (1/e²) | ≤2 |
| Distortion | ≥100:1 |
| Wavelength | 1064; 532; 355; 266nm |
| Modem Input | TTL 0~5V, SMB interface |
| System peak effort | <30W |
| Average system power consumption | <15W |

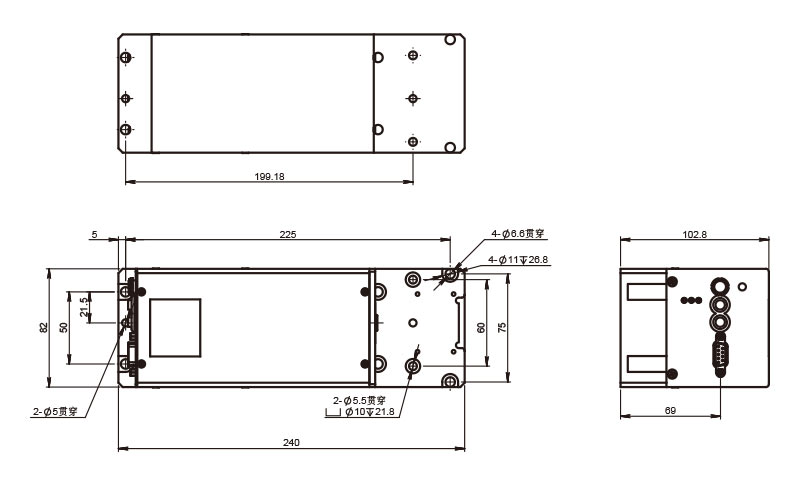

| Laser sizes | 82×102.8×240 |
