MCJ series 1ns microfilm laser 515 nm
The MCJ series RealSubns micro-film lasers are based on passive trans-Q solid lasers from semiconductor pumps; laser pulses are clean; single pulse energy is stable; and beams are of good quality. Integrated design for semiconductor pump modules and laser crystals; small compact laser heads to facilitate installation and integration; system support internal and external triggers. The products in this series consist of 1030 nm, 515 nm, 343 nm and 257 nm wavelengths; fully sealed modules inside la
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1kHz |
| Average Power | 100; 40; 20; 8mW |
| Output Energy | 100; 40; 20; 8μJ |
| Pulse width | 1000; 900; 800ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 6; 4; 3; 2 |
| Vertical Full-Angle Divergence (1/e²) | 6; 4; 3; 2 |
| Distortion | >100:1 |
| Wavelength | 1030; 515; 343; 257nm |
| System usage | ≤45W |

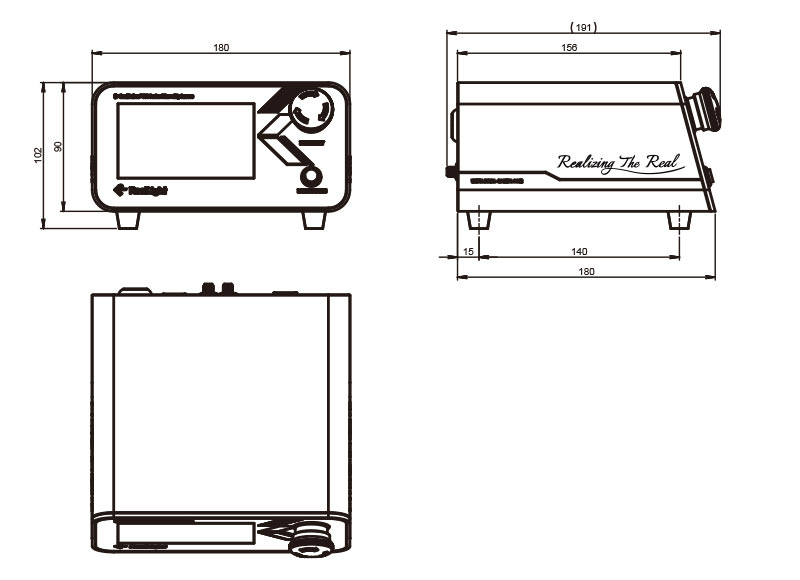

| Power size | 180×102×180 |
| Laser Head Size | 45×33×120 |
