MCJ series 1ns microfilm laser 257nm
The MCJ series RealSubns micro-film lasers are based on passive trans-Q solid lasers from semiconductor pumps; laser pulses are clean; single pulse energy is stable; and beams are of good quality. Integrated design for semiconductor pump modules and laser crystals; small compact laser heads to facilitate installation and integration; system support internal and external triggers. The products in this series consist of 1030 nm, 515 nm, 343 nm and 257 nm wavelengths; fully sealed modules inside la
Request a Quote
Download Datasheet
Overview
The MCJ series RealSubns micro-film lasers are based on passive trans-Q solid lasers from semiconductor pumps; laser pulses are clean; single pulse energy is stable; and beams are of good quality. Integrated design for semiconductor pump modules and laser crystals; small compact laser heads to facilitate installation and integration; system support internal and external triggers. The products in this series consist of 1030 nm, 515 nm, 343 nm and 257 nm wavelengths; fully sealed modules inside laser heads can be used by customers for secondary development applications
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1kHz |
| Average Power | 100; 40; 20; 8mW |
| Output Energy | 100; 40; 20; 8μJ |
| Pulse width | 1000; 900; 800ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 6; 4; 3; 2 |
| Vertical Full-Angle Divergence (1/e²) | 6; 4; 3; 2 |
| Distortion | >100:1 |
| Wavelength | 1030; 515; 343; 257nm |
| System usage | ≤45W |

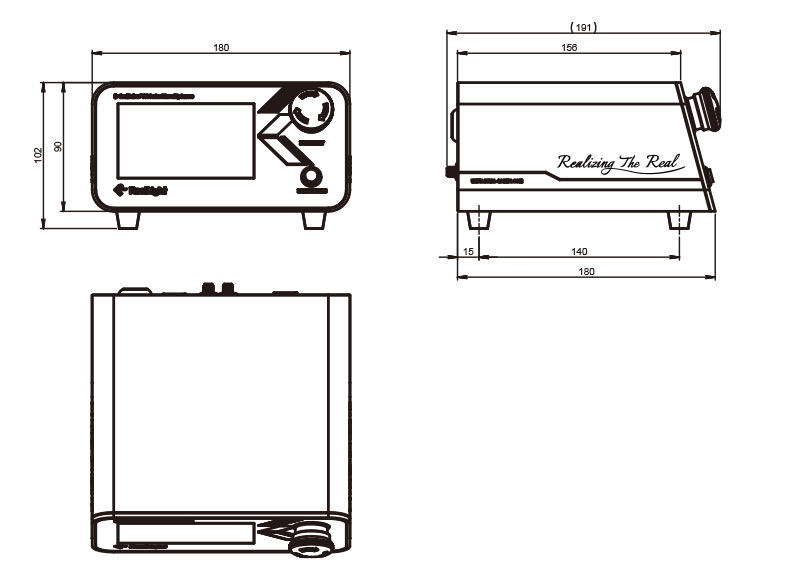

| Power size | 180×102×180 |
| Laser Head Size | 45×33×120 |
Applications
Microprocessing of materials; spectroscopy; laser radar; pump source; biomedical
Key Features
Pulse can be up to 800 ps; pulsed energy up to 100 m J; maximum repeat frequency up to 2 kHz; beam mode is TEM00
Datasheet
Product Datasheet
PDF
Supplier Information
Beijing RealLight Technology Co., Ltd. was founded in 2010 and is a high-tech enterprise specializing in the independent research and development, production, and sales of semiconductor lasers, microchip lasers, erbium glass lasers, high-power solid-state lasers, high-energy lamp-pumped lasers, and supporting components.
The company has a large and innovative engineering and technical team. After years of technical accumulation and process precipitation, RealLight has gained professional capabilities in laser design, chip packaging, device packaging, system integration, etc., and has successfully completed a number of technological innovation projects and model equipment projects, and has obtained multiple qualification certifications, patent works, and product certifications.
We have provided many innovative and competitive products to customers in various fields such as analytical instruments, biomedical, radar ranging, laser processing, etc. At the same time, we can also provide customized overall solutions and high-quality services according to customer needs.
RealLight looks forward to becoming your partner and creating value for you with laser technology!
