MCI Series 2.5 ns Microchip Laser, 473 nm
The MCI series micro-lasers are based on passive Q solid lasers based on semiconductor pumps; they consist of 946 nm and 473 nm wavelengths. The series uses integrated semiconductor pump modules and laser crystal design; small and compact laser heads; easy to install; support internal and external triggers; single pulse energy stabilization; and light beam quality. High product performance indicators make it widely used in radar ranging, spectrometry markets
Request a Quote
Download Datasheet
Overview
The MCI series micro-lasers are based on passive Q solid lasers based on semiconductor pumps; they consist of 946 nm and 473 nm wavelengths. The series uses integrated semiconductor pump modules and laser crystal design; small and compact laser heads; easy to install; support internal and external triggers; single pulse energy stabilization; and light beam quality. High product performance indicators make it widely used in radar ranging, spectrometry markets
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1kHz |
| Average Power | 4mW |
| Output Energy | 4μJ |
| Pulse width | 2000ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 7 |
| Vertical Full-Angle Divergence (1/e²) | 7 |
| Distortion | >100:1 |
| Wavelength | 473nm |
| System usage | ≤15W |

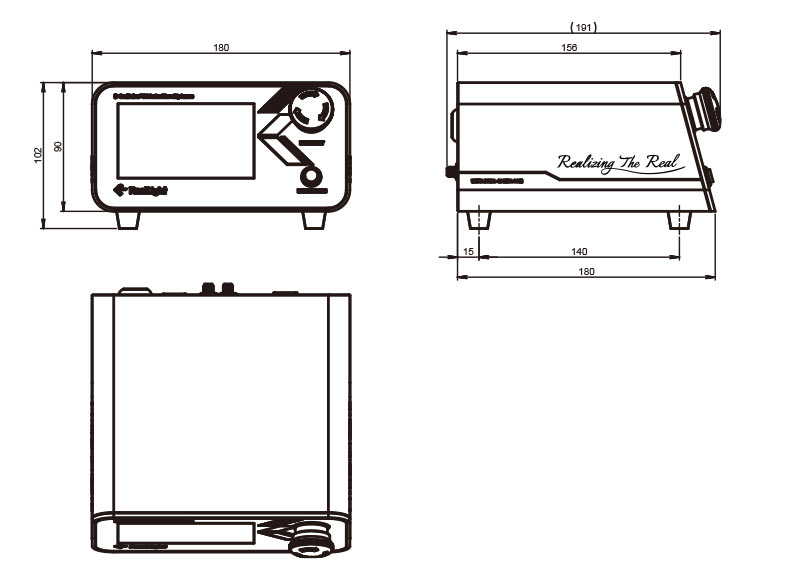

| Power size | 180×102×180 |

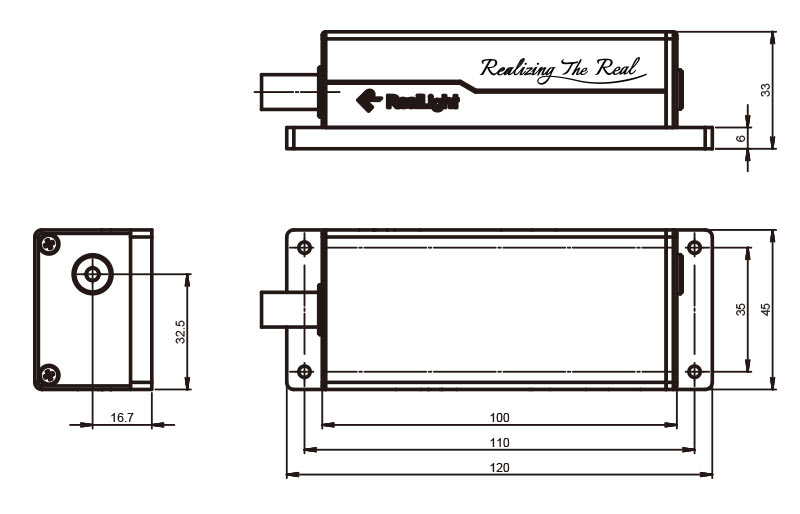

| Laser Head Size | 45×33×120 |
Applications
Laser induction fluorescent; ultrasound; radar ranging; Laman spectroscopy
Key Features
Tight structure; high stability; high oscillation orientation stability; 1 kHz repeat frequency; beam mode TEM00
Datasheet
Product Datasheet
PDF
Supplier Information
Beijing RealLight Technology Co., Ltd. was founded in 2010 and is a high-tech enterprise specializing in the independent research and development, production, and sales of semiconductor lasers, microchip lasers, erbium glass lasers, high-power solid-state lasers, high-energy lamp-pumped lasers, and supporting components.
The company has a large and innovative engineering and technical team. After years of technical accumulation and process precipitation, RealLight has gained professional capabilities in laser design, chip packaging, device packaging, system integration, etc., and has successfully completed a number of technological innovation projects and model equipment projects, and has obtained multiple qualification certifications, patent works, and product certifications.
We have provided many innovative and competitive products to customers in various fields such as analytical instruments, biomedical, radar ranging, laser processing, etc. At the same time, we can also provide customized overall solutions and high-quality services according to customer needs.
RealLight looks forward to becoming your partner and creating value for you with laser technology!
