MCH series 300ps single-horizontal microfiche laser 266nm
The MCH series RealSubns, single-dimensional micro-lasers, while ensuring a pulse width of less than 300 ps; can also achieve a higher frequency of repetition. The product is based on passive Q solid lasers based on semiconductor pumps; energy stability; good beam quality; and single-dimensional modelling. Lasers are designed to be fully sealed; they are small; they are user-friendly for integration. System support internal and external triggers; for secondary development applications
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Average Power | 60; 80; 100; 30; 40; 50; 10; 12; 15; 8mW |
| Output Energy | 3; 2; 1; 1.5; 0.5; 0.3; 0.15; 0.4; 0.2; 0.12μJ |
| Pulse width | 400; 600; 350; 500ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 22; 24; 18; 20; 16 |
| Vertical Full-Angle Divergence (1/e²) | 22; 24; 18; 20; 16 |
| Distortion | >100:1 |
| Wavelength | 1064; 532; 355; 266nm |
| Repeat frequency | 20; 40; 100kHz |
| System usage | ≤35; ≤40W |

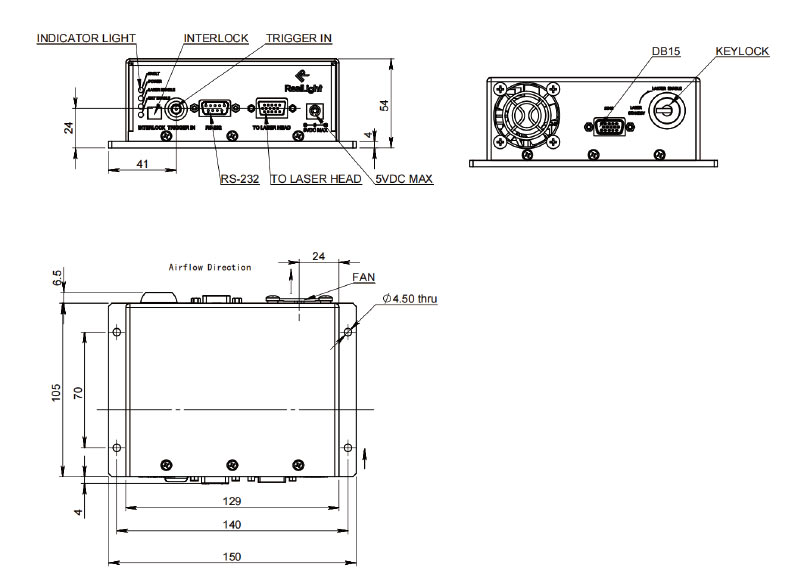

| Power size | 150×54×105 |
| Laser Head Size | 45×33×120 |
