MCD series 350 ps micro-laser 266 nm
The MCD series RealSubns microfilm lasers are based on passive trans-Q solid lasers from semiconductor pumps; laser pulses are pure and clean; single pulse energy is stable; and beams are of good quality. Integrated design for semiconductor pump modules and laser crystals; small compact laser heads to facilitate installation and integration; system support internal and external triggers. The products in this series consist of 1064 nm, 532 nm, 355 nm and 266 nm wavelengths; fully sealed modules i
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 0.1kHz |
| Average Power | 10; 3; 1.5; 0.5mW |
| Output Energy | 100; 30; 15; 5μJ |
| Pulse width | 350; 300ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 12; 10; 8 |
| Vertical Full-Angle Divergence (1/e²) | 12; 10; 8 |
| Distortion | >100:1 |
| Wavelength | 1064; 532; 355; 266nm |
| System usage | ≤25W |

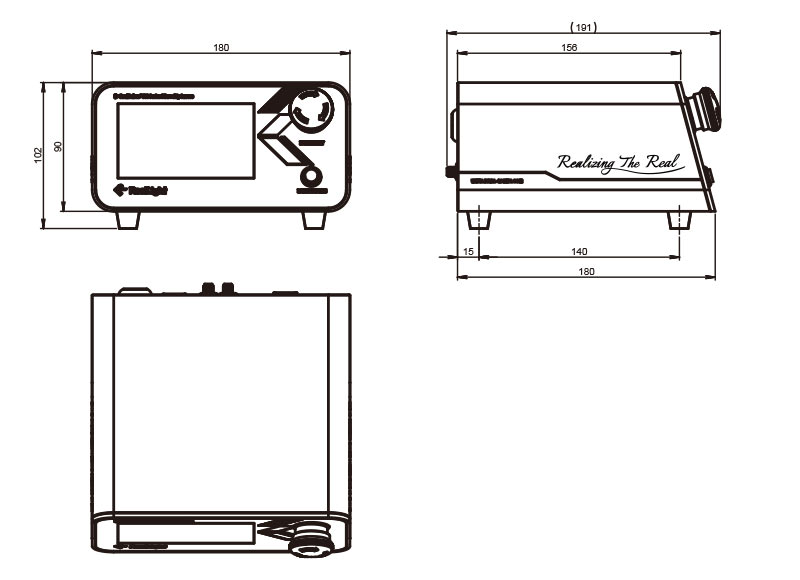

| Power size | 180×102×180 |
| Laser Head Size | 45×33×120 |
Applications
Key Features
Datasheet
