MCD series 350ps low-heavy OEM microbe laser 1064nm
The MCD series RealSubns microbe lasers are based on passive Q solid lasers for semiconductor pumps; they are accompanied by small OEM circuit boards; they have such advantages as small size, ease of integration, excellent beam mass and single pulse energy stabilization. Our Division can also provide users with wavelength-matched separators; higher energy product 1-2mJ can be customised
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 0.01kHz |
| Average Power | 2; 5mW |
| Output Energy | 200; 500μJ |
| Pulse width | 350ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 8; 6 |
| Vertical Full-Angle Divergence (1/e²) | 8; 6 |
| Distortion | P-rival, >100:1 |
| Wavelength | 1064nm |
| System usage | ≤10W |

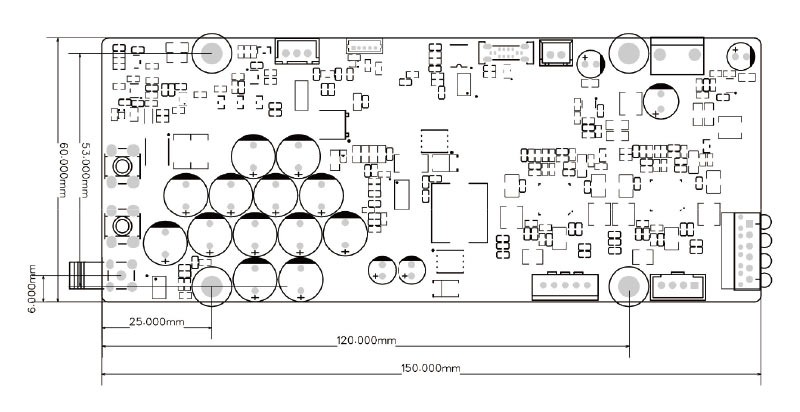

| Power size | 60×25.2×150 |

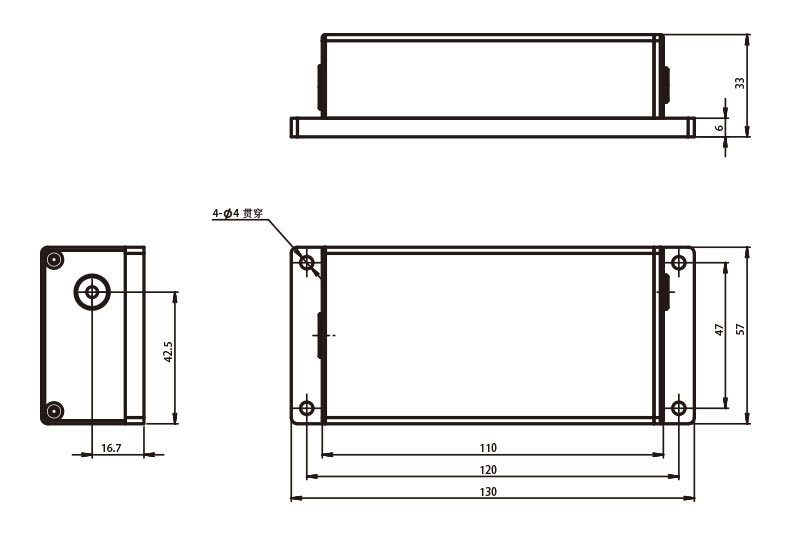

| Laser Head Size | 45×33×120; 57×33×130 |
Applications
Key Features
Datasheet
