MCC series 750ps micro-laser 1064nm
The MSC series RealSubns micro-laser products have a very desirable narrow pulse width; they also achieve a high single pulse energy; the product is a passive Q solid laser based on semiconductor pumps; the laser pulse is clean; the single pulse energy is stable; and the beam is of good quality. Integrated design for semiconductor pump modules and laser crystals; small compact laser heads to facilitate installation and integration; system support internal and external triggers. The series consis
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Average Power | 100; 300; 400; 50; 150; 200; 20; 60; 10; 40; 4mW |
| Output Energy | 100; 60; 30; 20; 50; 15; 10; 5; 3; 8; 4; 2μJ |
| Pulse width | 750; 700; 600; 650; 900ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 8; 12; 7; 10; 11; 5 |
| Vertical Full-Angle Divergence (1/e²) | 8; 12; 7; 10; 11; 5 |
| Distortion | >100:1 |
| Wavelength | 1064; 532; 355; 266; 213nm |
| Repeat frequency | 1; 5; 10; 20; 30kHz |
| System usage | ≤45W |

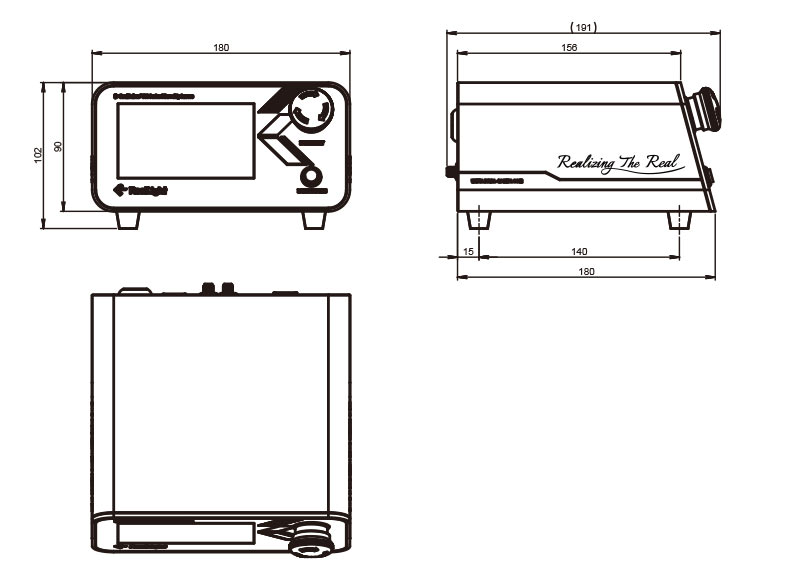

| Power size | 180×102×180 |
| Laser Head Size | 45×33×120 |
Applications
Key Features
Datasheet
