MCA-R series 2ns microfilm laser 532 nm
The MCA series RealSubns microfilm laser is a semiconductor pump passive Q solid laser developed on its own initiative; semiconductor pump module and laser crystal integration design; and small compact laser heads facilitate installation and integration. The products in this series are designed for mini-meteorological radar applications; specially for small OEM circuit boards; small size and low utility; and can be used in harsh environments such as high altitude, high temperature differentials.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 2.5kHz |
| Average Power | 275; 450; 138; 225mW |
| Output Energy | 110; 180; 55; 90μJ |
| Pulse width | 2000; 2500ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | ≤3; ≤2.5 |
| Vertical Full-Angle Divergence (1/e²) | ≤3; ≤2.5 |
| Distortion | >100:1 |
| Wavelength | 1064; 532nm |
| System usage | ≤45W |

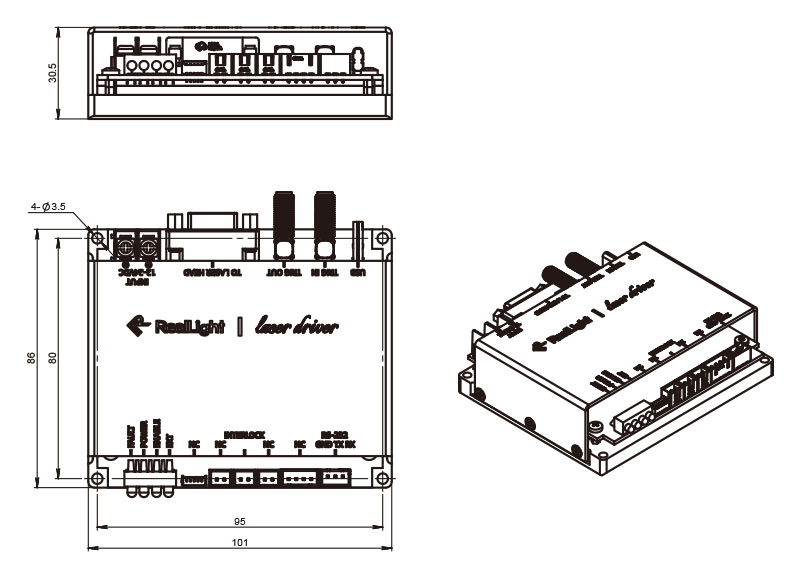

| Power size | 86×30.5×101 |
| Laser Head Size | 45×33×120 |
