AWM series semiconductor laser system
The AWM series semiconductor laser system; consists of components such as primary control units, industrial touch screens, multi-channel semiconductor laser modules, drive circuits, distillation systems; highly integrated, stable, operational multiwave semiconductor laser outputs; and is widely used in spectrometry, biomedical, material processing, lighting, etc. The system contains an on-site control software; monitors laser usage; and supports online updates of laser solids. At the same time;
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Continuous output power | 3; 5; 10W |
| Average output power ceiling | 30W |
| He's on the wavelength | ±10nm |
| spectral width | <6nm |
| Output Power | 1~5mW |
| The wavelength | 650nm |
| Connection | Fibre interpolation |
| Fibre length | 100±10 (other lengths customizable)cm |
| Numerical aperture | 0.22 |
| Connector | SMA905 |
| Working methods | Continuous/quasi-continuous, multiple-routing |
| Light frequency | 0~10kHz |
| The light's wide | 0.05~300ms |
| Dispersion mode | It's cold |
| Screen Parameters | Seven-inch electric screen |
| Program control parameters | Power, pulse spacing and width can be set independently; light time can be set |
| Full power | ≤300W |
| Electricity requirements | 100~240 VAC, 50/60 Hz |
| Working environment temperature | 10~30℃ |
| Storage temperature requirements | -25~55℃ |
| Storage Humidity Requirements | 0~80% RH |

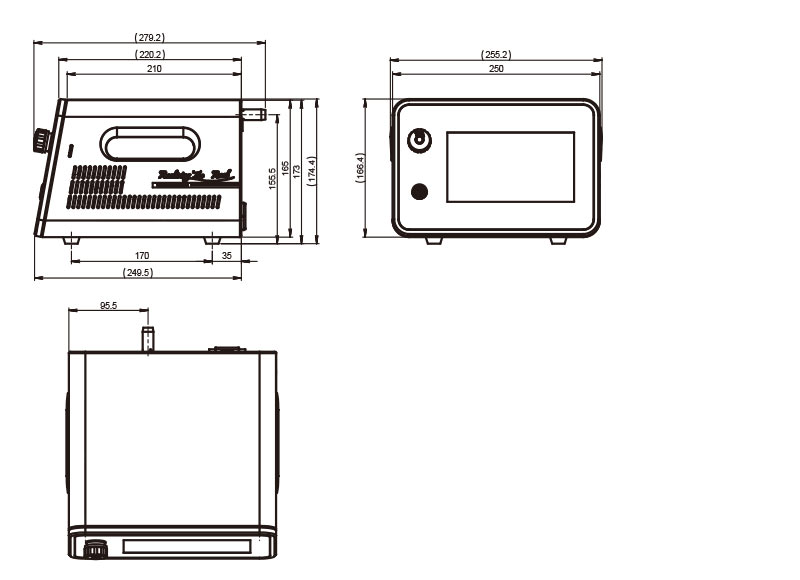

| System sizexx | 255.2×166.4×279.3 |
| Central wavelength | Wavelength options; 450; wavelength options; 635; wavelength options; 650; wavelength options; 675; wavelength options; 695; wavelength options; 755; wavelength options; 785; wavelength options; 808; Wavelength options; 830; wavelength options; 880; wavelength options; 915; wavelength options; 940; wavelength options; 980; wavelength options; 1064; wavelength options; 1320; wavelength options; 1470; wavelength options; 1550; wavelength options; 1720; wavelength options; 1940nm |
