AQE Series - 50 mJ Semiconductor Pump Pump Pump Active Q Laser
The AQE series RealShock Pumps Actively Modified Q Lasers; Equalized Pumps using self-developed miniconductor superstitions; Integrated design of laser sealed cavities with driver-controlled circuits; Actively Modified Q laser output that achieves small, peak power. Products are widely used in areas such as radar, processing, scientific research, etc
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1~20Hz |
| Power stability | ≤3% |
| Horizontal Full-Angle Divergence (1/e²) | ≤4 |
| Vertical Full-Angle Divergence (1/e²) | ≤4 |
| Luminous diameter | 33 |
| Refrigeration mode | It's cold |

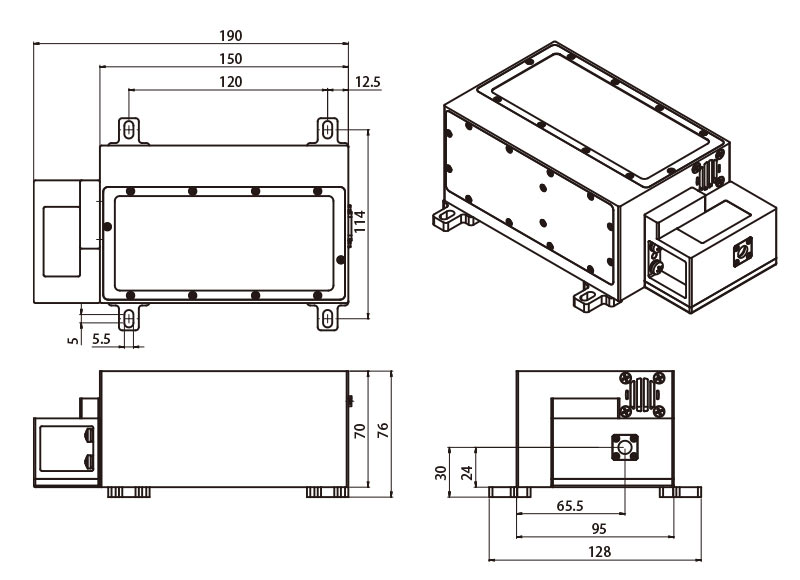

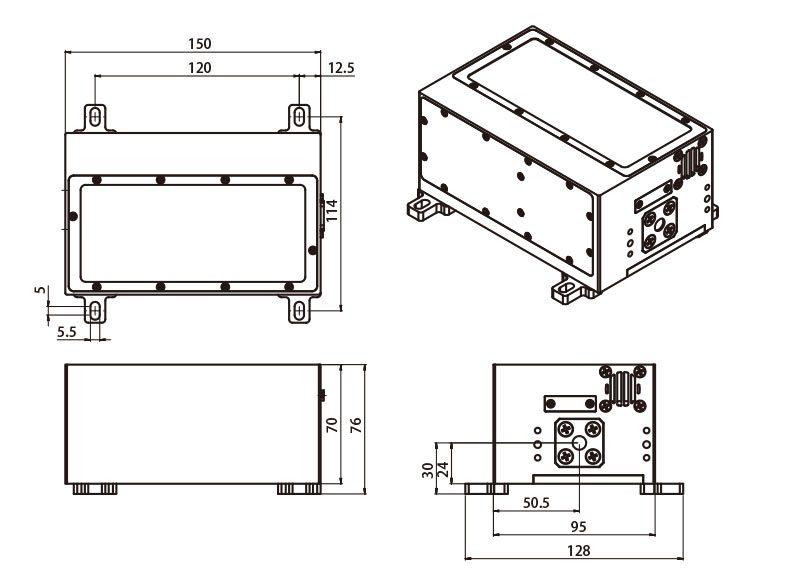

| Laser Head Size | 95×70×150; 95×70×190 |
| Wavelength | 1064; 532; 355; 266nm |
| Single pulse energy | 50; 25; 15; 5 |
| Electricity input | 24VDC |
| Peak effort | 120W |
| Trigger Mode | Internal/external trigger |
Applications
