AA-2 series conductor cooling arrays
The AA-2 series of conductor cooling arrays are devices for wide-temperature applications developed by almonds. It has high peak power and wide temperature applications
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central wavelength range | ±3nm |
| Each output power | 100; 200W |
| Number per group | 8; 6 |

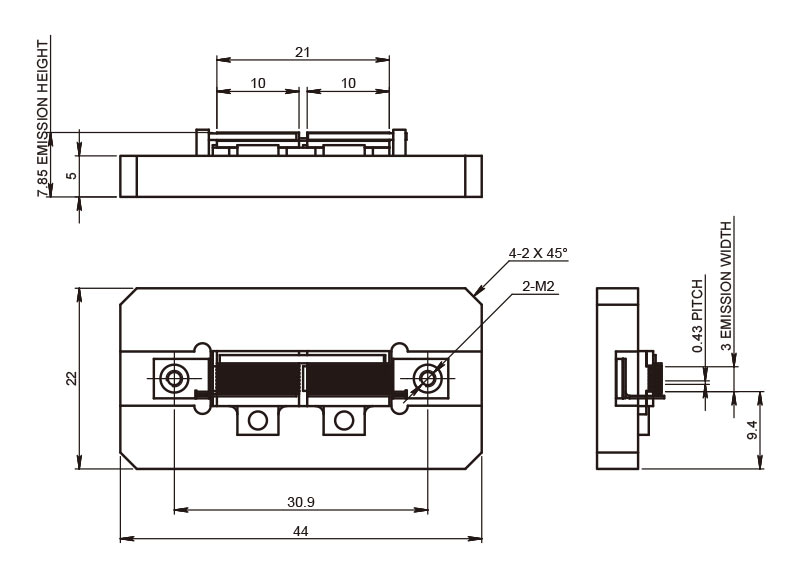

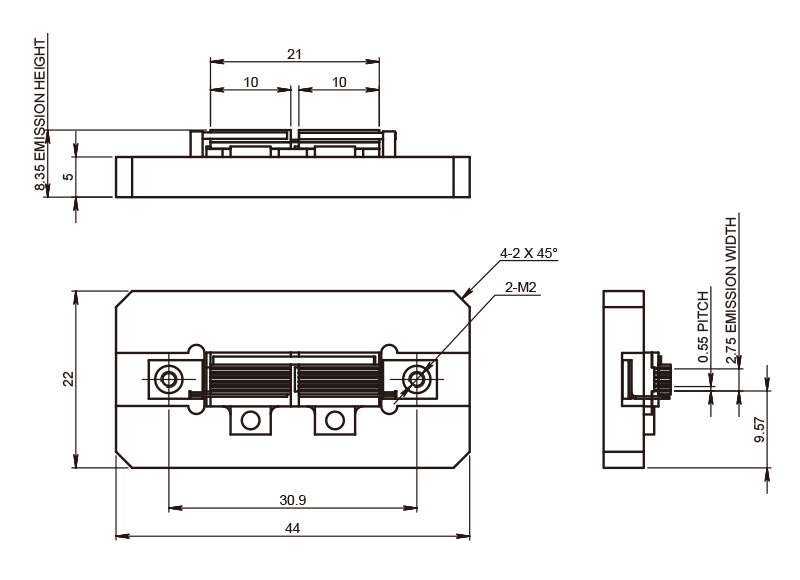

| Space | 0.43; 0.55mm |
| Light area | 3×21; 2.75×21 |
| Group spacing | 1mm |
| Number of groups | 2 |
| Quick-axis split | 40 |
| Slow-axis Shape | 10 |
| Wave temperature drift factor | ~0.3nm/°C |
| Central wavelength | 790~812nm |
| Single wavelength spectrum width | ≤6nm |
| Electricity conversion efficiency | ≥50% |
| Every working voltage | ≤2.1V |
| Percentage | ≤0.8%@1600W; ≤0.6%@2400W |
| Repeat frequency | 1~25; 1~20Hz |
| Working temperature range | -40~65℃ |
