09HHL Semiconductor laser module

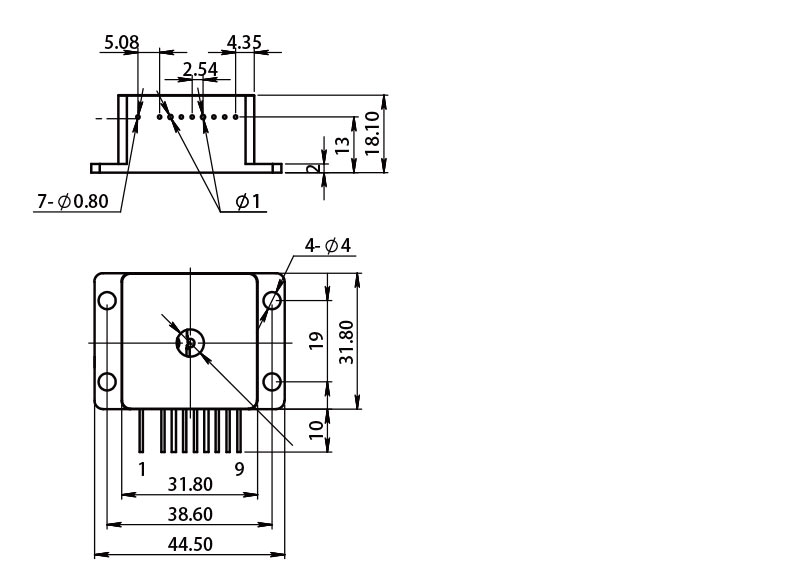

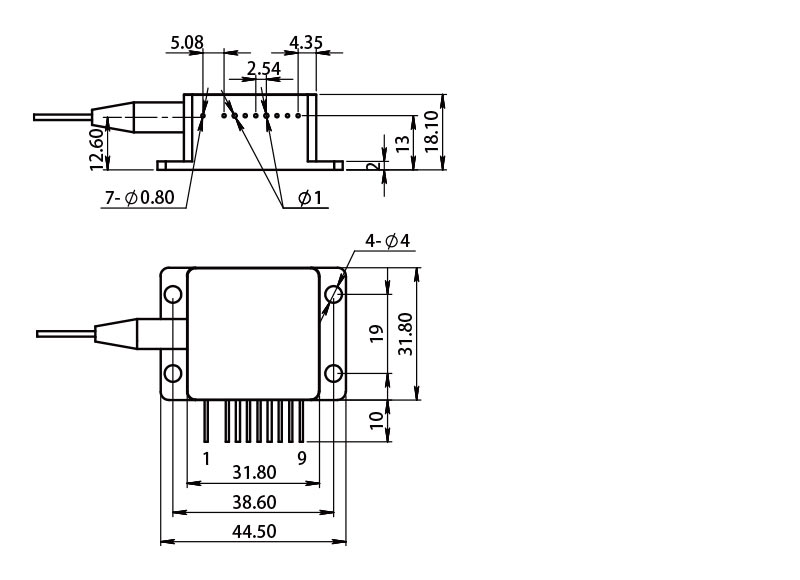

09HHL is a multifunctional AW series of multi-purpose lasers; single tube cores, fibre-optic coupling and space output. Space output light spots are stable; fibre-optic output products have the characteristics of even light, integrated efficiency, heat dispersion, small size and power stability. Configure telecoms for temperature control, RT heat-sensitive electrical resistance, PD, etc
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Continuous output power | 3; 10; 4; 1; 8.5; 8; 15W |
| He's on the wavelength | ±3, ±5, ±10nm |
| spectral width | <4nm |
| Wave length with temperature properties | 0.3nm/°C |
| Electricity | <2000μA |
| Heat-sensitive electrical resistance parameters | 10±5%/3450, 10±5%/3930 |
| Maximum voltage | 9.8V |
| Microefficiency | 1.0; 0.9; 0.8W/A |
| Central wavelength | 808; 450; 638; 783; 803; 9XX; 1064nm |
| Fibre core diameter | 105/125, 200/220μm |
| Fibre length | 100±10 (other lengths customizable)cm |
| Numerical aperture | 0.22 |
| Connector | FC/PC, SMART905, nudity needle |
Applications
Key Features
Datasheet
