Precision Direct Drive Rotary Table
The MDRT150 high-rigidity precision direct drive rotary table, with its high-performance coreless torque motor and precision-tuned angular-contact sliding-friction bearing system, provides the system with control resolution up to 0.02 arc sec. The extremely low, nearly linear sliding-friction resistance guarantees micro-step incremental motion, delivering positioning capability (steady-state error) better than ±0.08 arc sec and fast settling time (steady-state time) better than 25 ms. The MDRT150 uses a segmented coreless torque motor that reduces periodic torque ripple, with resolution up to 0.001 arc sec, ultra-smooth velocity stability and excellent low-speed performance: even at extremely low speeds below 0.01°/s (36 arc sec/s), the position following error remains better than ±0.5 arc sec. The MDRT150 uses brushless direct drive motor technology to maximize positioning performance and dynamic response, requires no brush replacement and no maintenance of gear trains or belts, and provides faster acceleration and higher response speed than gear- or belt-driven mechanisms. Using two large-diameter angular contact bearings, the unique wide-span design greatly reduces motion axis runout and improves system rigidity and repeatability; the large-diameter bearings can withstand greater payloads without affecting performance. The MDRT150 is a rotary table with an integrated T-slot for horizontal table mounting or connecting custom application-specific fixtures.
Save to Favorites
Overview
Key Features

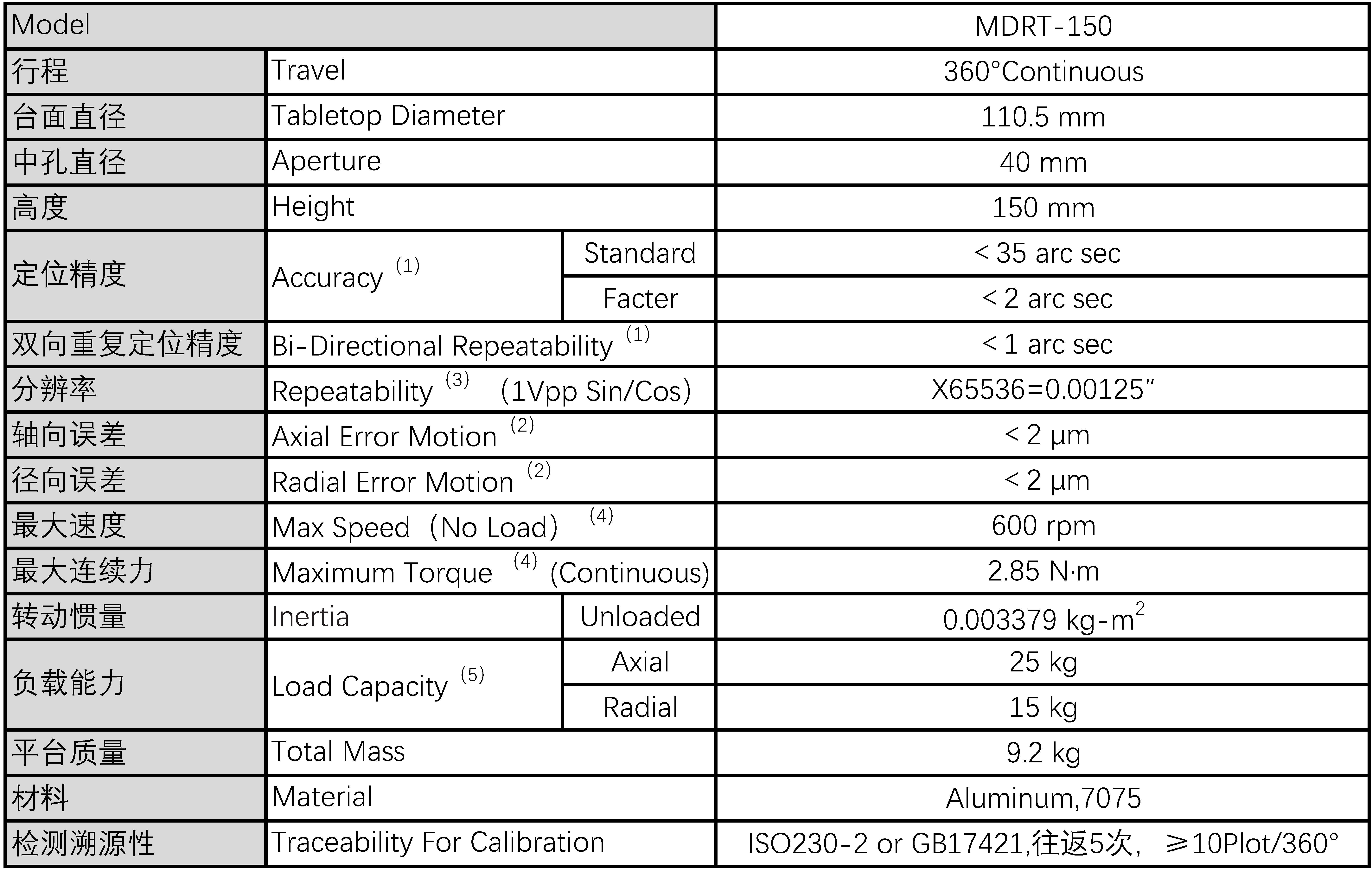

Datasheet
