MDRS100
The MDRS100 low-profile, high-precision direct drive rotary table, with its high-performance coreless torque motor and precision-tuned angular-contact sliding-friction bearing system, provides the system with control resolution up to 0.02 arc sec. The extremely low, nearly linear sliding-friction resistance guarantees micro-step incremental motion, delivering outstanding positioning capability (steady-state error) better than ±0.08 arc sec and fast settling time (steady-state time) better than 25 ms. The MDRS100 uses a segmented coreless torque motor that reduces periodic torque ripple, providing ultra-smooth velocity stability and excellent low-speed performance: even at extremely low speeds below 0.01°/s (36 arc sec/s), the position following error remains better than ±0.5 arc sec. Using brushless direct drive motor technology, it maximizes positioning performance and dynamic response, requires no brush replacement and no maintenance of gear trains or belts, and provides faster acceleration and higher response speed than gear- or belt-driven mechanisms. The MDRS100 is specially optimized for the sliding-friction bearing system and feedback system, minimizing table height and effectively reducing the Abbe errors caused by axial error and shaft runout. The MDRS series also features a standard clear aperture for beam transmission.
Save to Favorites
Overview
Specifications

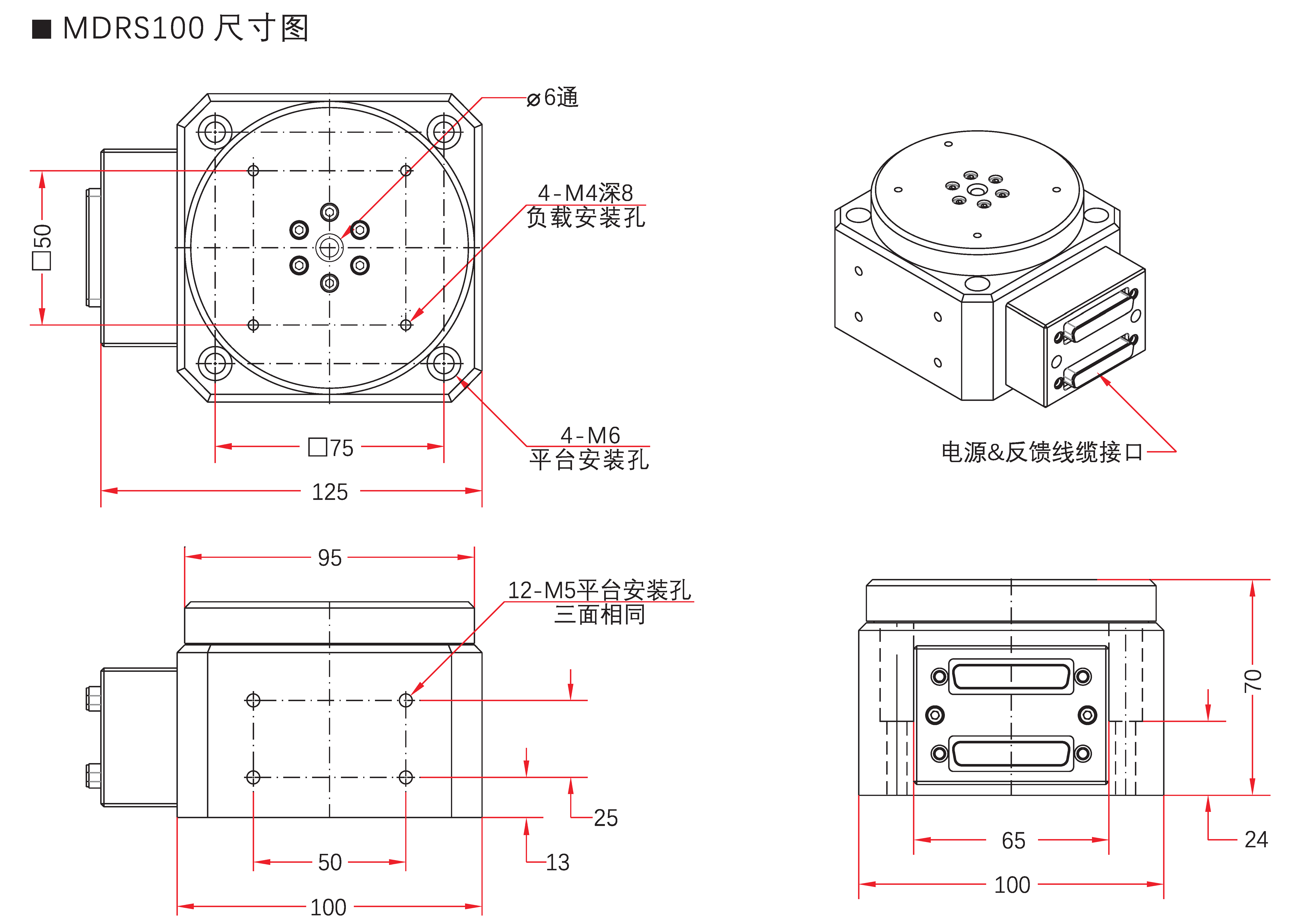

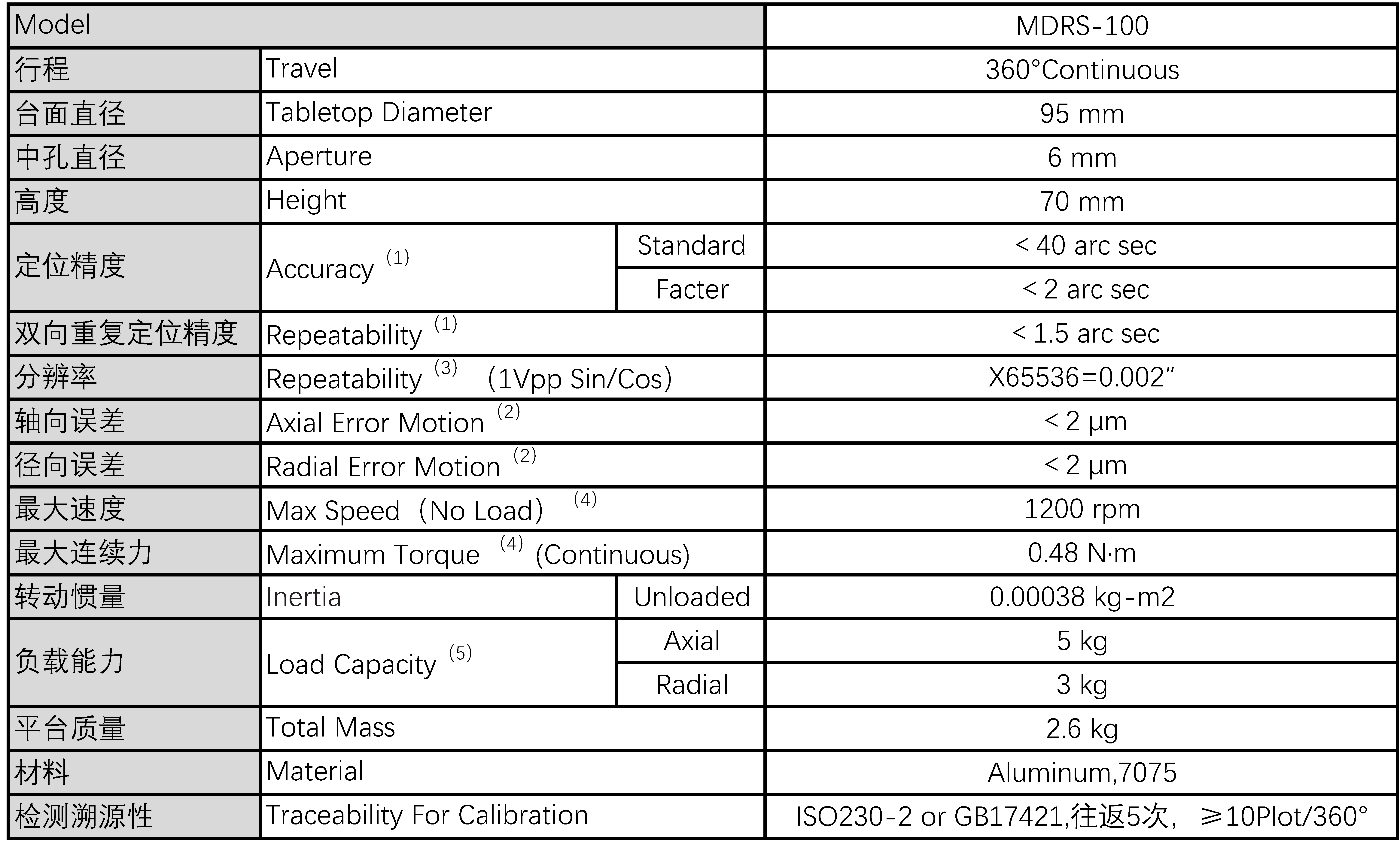

| Parameter | Value |
|---|---|
| 台面直径 | 95mm |
| 中孔直径 | 6mm |
| 高度 | 70mm |
| 定位精度(Standard) | <40 arc secarc sec |
| 定位精度(Facter) | <2 arc secarc sec |
| 双向重复定位精度 | <1.5 arc secnm |
| 轴向误差 | <2 μm |
| 径向误差 | <2 μm |
| 最大速度(空载) | 1200 rpm |
| 最大连续力矩 | 0.48 N-m |
| 转动惯量 | 0.00038kg-m2 |
| 负载能力(轴向) | 5kg |
| 负载能力(径向) | 3kg |
| Platform质量 | 2.6 kg |
| 检测溯源性 | ISO230-2 or GB17421,往返5次,≥10Plot/360° |
