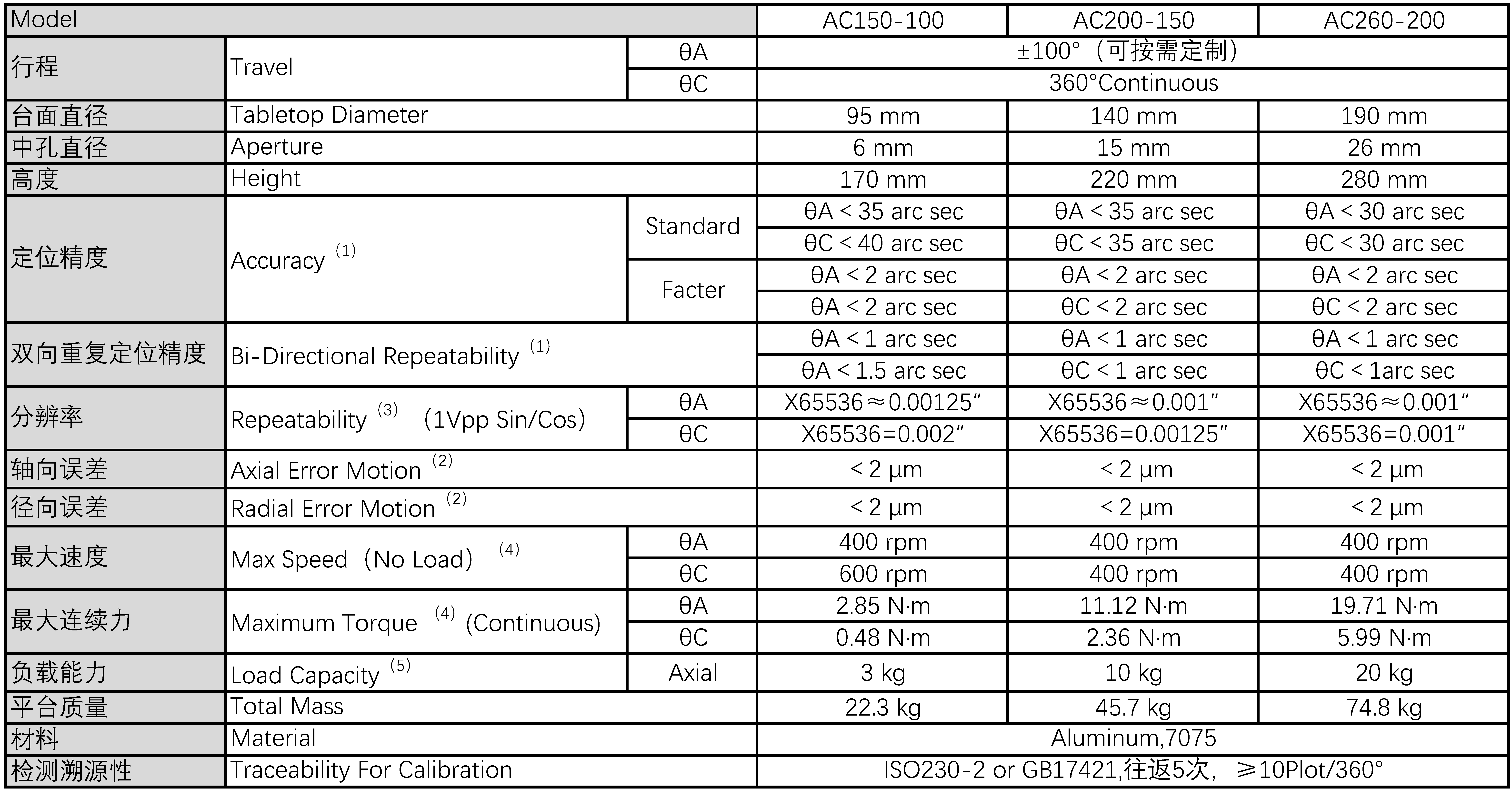

Specifications
| Parameter | Value |
|---|---|
| Travel (A-axis) | ±100°(可按需定制) |
| Travel (C-axis) | 360°Continuous° |
| Accuracy - Standard (A-axis) | AC150-100: <35 arc sec; AC200-150: <35 arc sec; AC260-200: <30 arc secarc sec |
| Accuracy - Standard (C-axis) | AC150-100: <40 arc sec; AC200-150: <35 arc sec; AC260-200: <30 arc secarc sec |
| Accuracy - Facter (A-axis) | <2 arcsecarc sec |
| Accuracy - Facter (C-axis) | <2 arcsecarc sec |
| Bi-Directional Repeatability (A-axis) | <1 arcsecarc sec |
| Bi-Directional Repeatability (C-axis) | AC150-100: <1.5 arc sec; AC200-150: <1 arc sec; AC260-200: <1 arc secarc sec |
| Resolution (A-axis) | AC150-100: X65536~0.00125"; AC200-150: X65536~0.001"; AC260-200: X65536~0.001" |
| Resolution (C-axis) | AC150-100: X65536=0.002"; AC200-150: X65536=0.00125"; AC260-200: X65536=0.001" |
| Axial Error Motion | <2 μm |
| Radial Error Motion | <2 μm |
| Max Speed (No Load) (A-axis) | 400 rpm |
| Max Speed (No Load) (C-axis) | AC150-100: 600 rpm; AC200-150: 400 rpm; AC260-200: 400 rpm |
| Maximum Torque (Continuous) (A-axis) | AC150-100: 2.85 N·m; AC200-150: 11.12 N·m; AC260-200: 19.71 N·m |
| Maximum Torque (Continuous) (C-axis) | AC150-100: 0.48 N·m; AC200-150: 2.36 N·m; AC260-200: 5.99 N·m |
| Traceability For Calibration | ISO230-2 or GB17421,往返5次,≥10Plot/360° |
