AB_MRS Precision Rotary Table

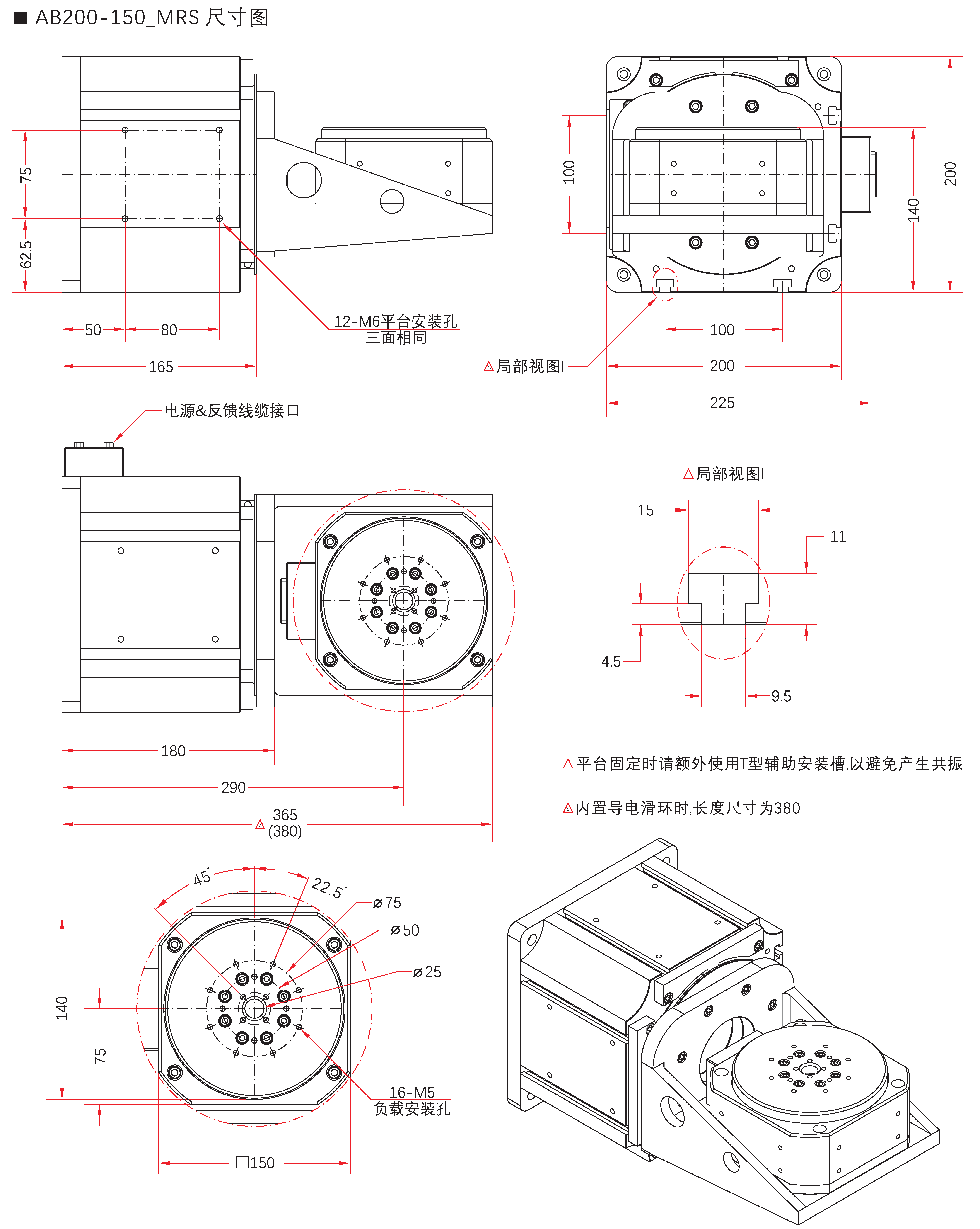

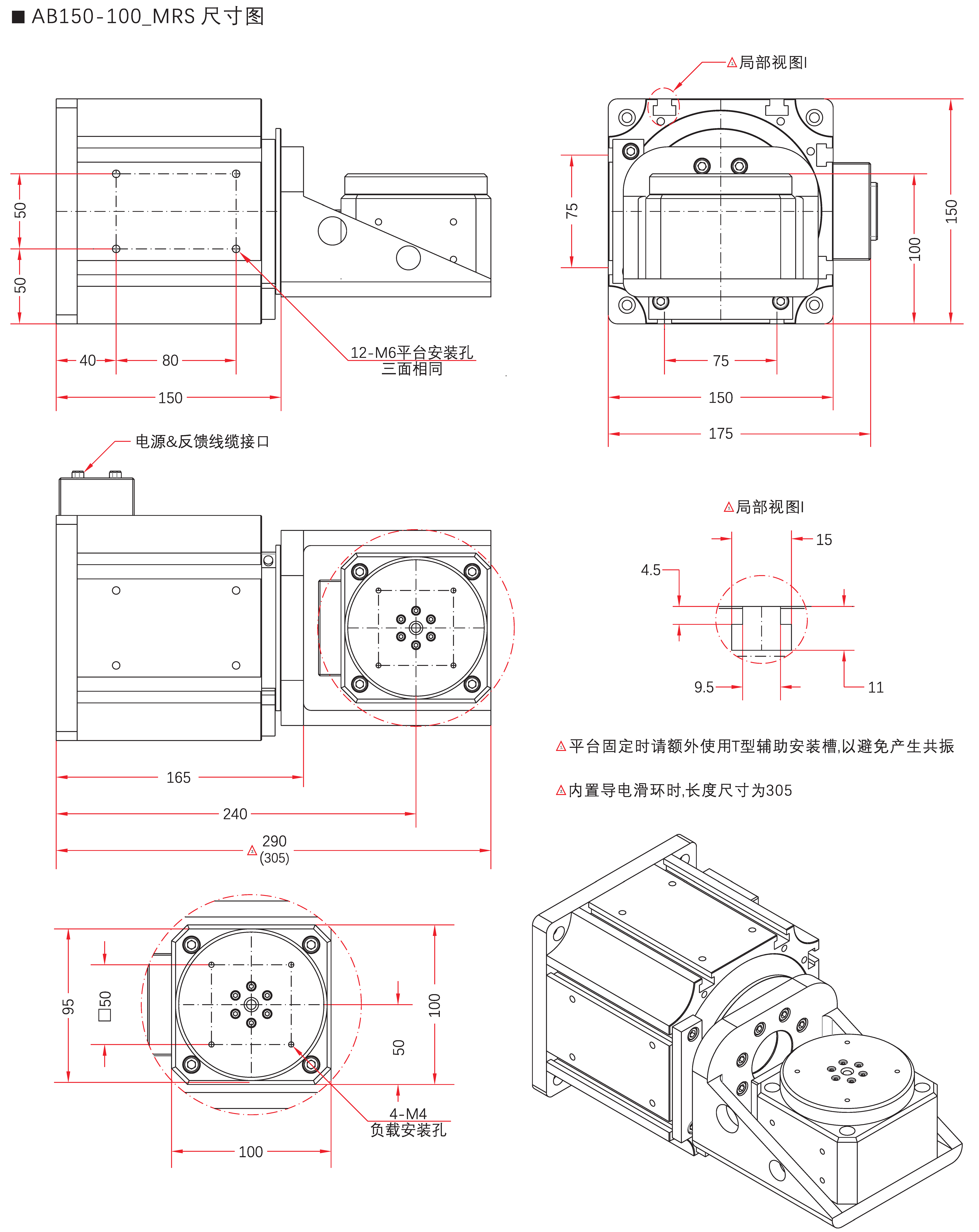

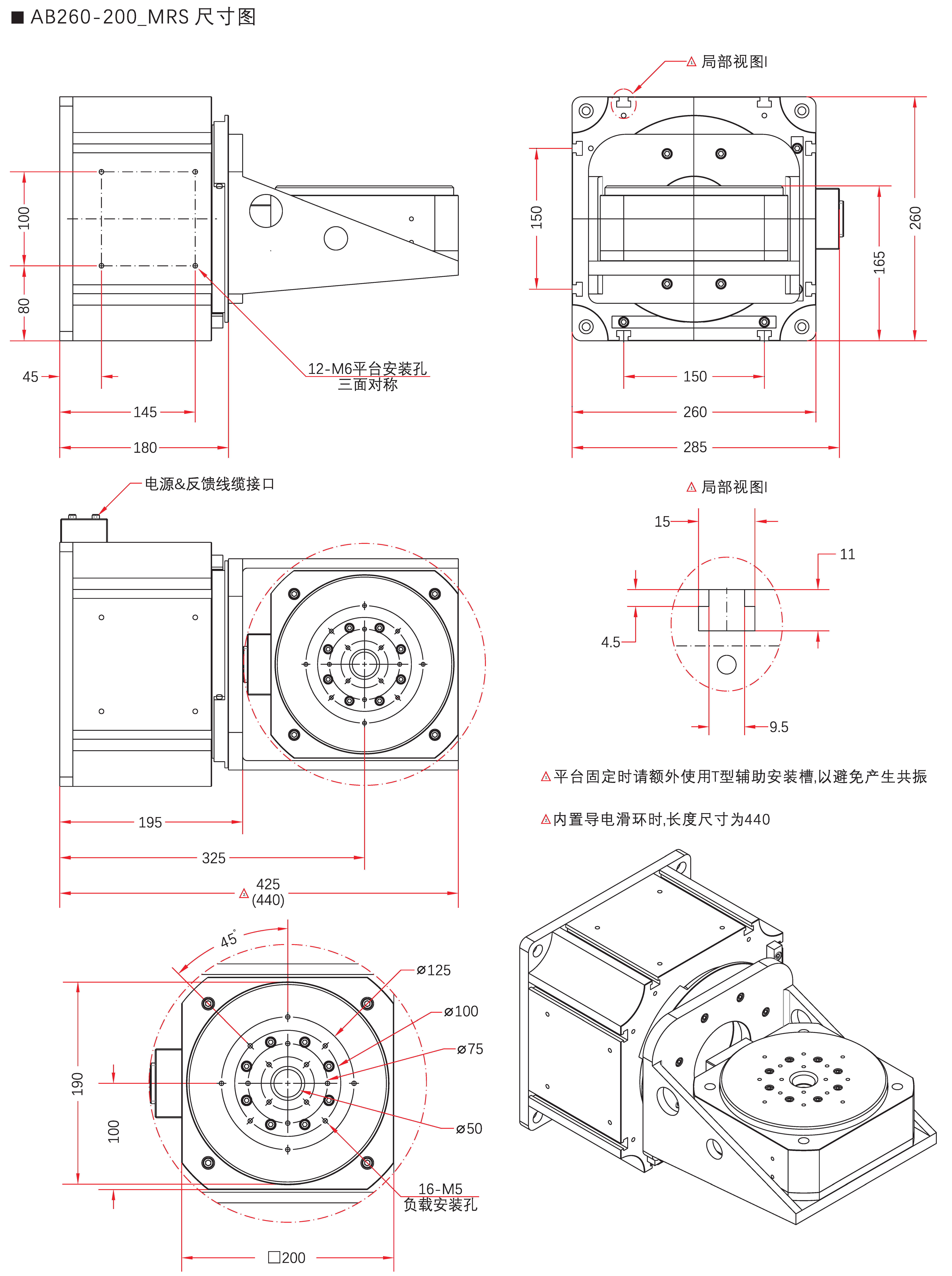

The AB_MRS precision rotary table is a CNBHC precision direct drive rotary table, available in three models: AB150-100, AB200-150 and AB260-200, offering two configurations: θA (travel ±100°, customizable on request) and θC (continuous 360° rotation). It uses coreless torque motor direct drive with an angular-contact sliding-friction bearing system; technical specifications are tested and traceable per ISO230-2 or GB17421, with 5 round trips and ≥10 plots per 360°.
Save to Favorites
Overview

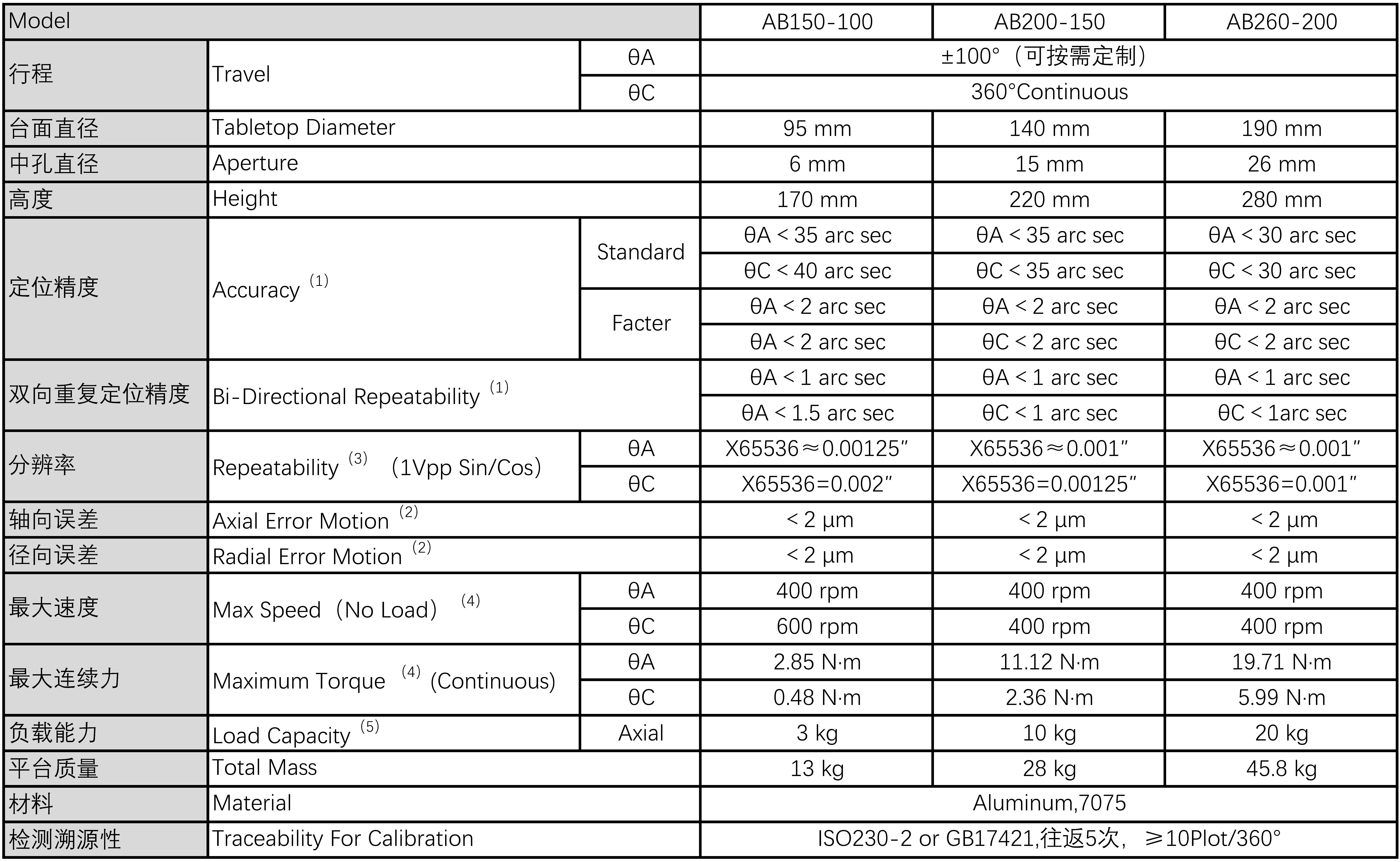

Specifications
| Parameter | Value |
|---|---|
| 轴向误差运动 | <2 μm(AB150-100/AB200-150/AB260-200) |
| 径向误差运动 | <2 μm(AB150-100/AB200-150/AB260-200) |
| 检测溯源性 | ISO230-2 or GB17421,往返5次,≥10Plot/360° |
Key Features
Datasheet
Supplier Information
