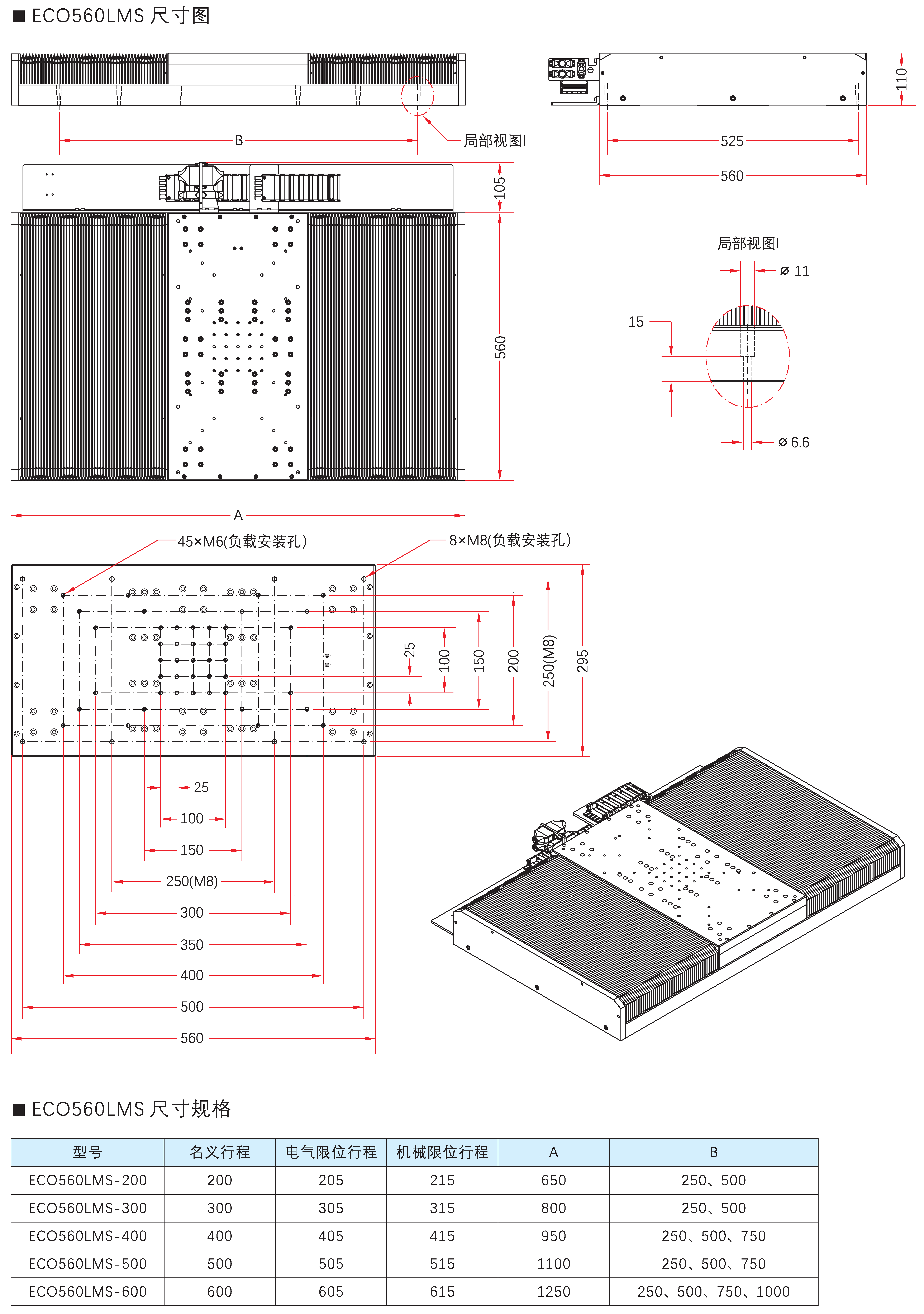

Linear Positioning Stage
The ECO560LMS series economy direct drive stage is the latest generation of economy sub-micron direct drive stages refined through continuous optimization, offering high accuracy and an integrated sealing protection design, achieving minimum incremental motion better than 50 nm and sub-micron bi-directional repeatability at low cost. The ECO560LMS series delivers better geometric accuracy than competing products, with bi-directional repeatability <1 μm and positioning accuracy of <1.5 μm after linear error compensation. The ECO560LMS direct drive stage uses a specially customized linear motor as the drive element, which features extremely low cogging and normal attractive force, high thrust and smooth motion, combining sub-micron positioning capability with outstanding high dynamic response, making it the ideal solution for applications requiring high reliability, high performance, precision positioning and low cost. The product is available in five models with standard design travels covering 200-600 mm, speeds up to 1500 mm/s, and a complete single-axis/multi-axis cable management solution. The stage uses a long-life rolling-friction bearing system with an integrated sealing protection design to prevent contamination from entering the internal structure.
Save to Favorites
Overview
Specifications

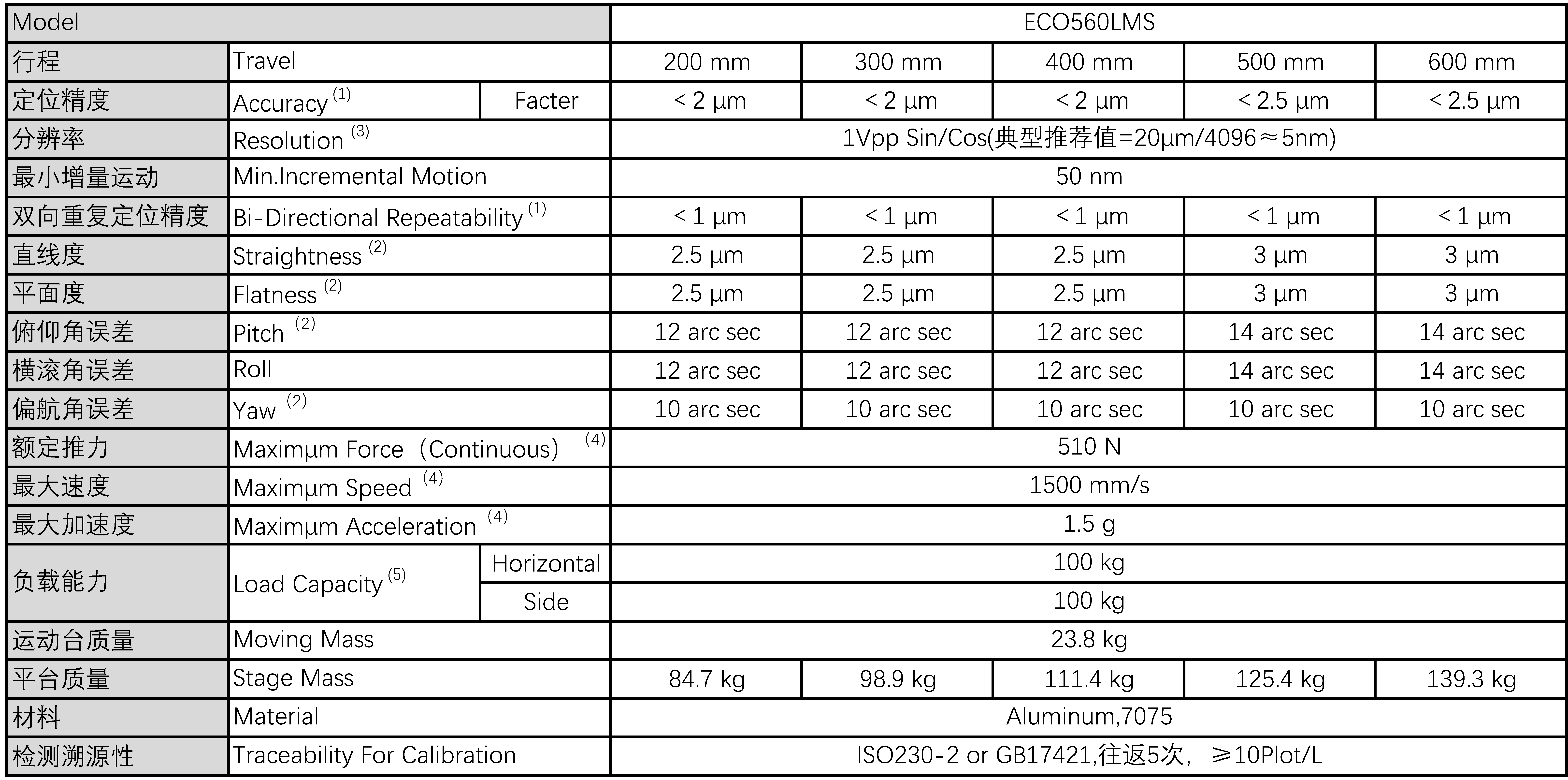

| Parameter | Value |
|---|---|
| Min. Incremental Motion | 50 nm |
| Bi-Directional Repeatability | <1μm |
| Roll | 12 arc sec (Travel 200/300/400mm); 14 arc sec (Travel 500/600mm) |
| Yaw | 10 arc secarc sec |
| Maximum Force (Continuous) | 510 N |
| Maximum Speed | 1500 mm/s |
| Maximum Acceleration | 1.5 g |
| Load Capacity - Horizontal | 100 kg |
| Load Capacity - Side | 100 kg |
| Moving Mass | 23.8 kg |
| Stage Mass | 84.7 / 98.9 / 111.4 / 125.4 / 139.3 kg (Travel 200/300/400/500/600mm) |
| Traceability For Calibration | ISO230-2 or GB17421 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
