Linear Positioning Stage
The ECO400LMS series economy direct drive stage features standard travels covering 200-600 mm. Using non-contact linear motor direct drive, it provides sub-micron positioning capability, an integrated sealing protection design and a long-life rolling-friction bearing system.
Save to Favorites
Overview

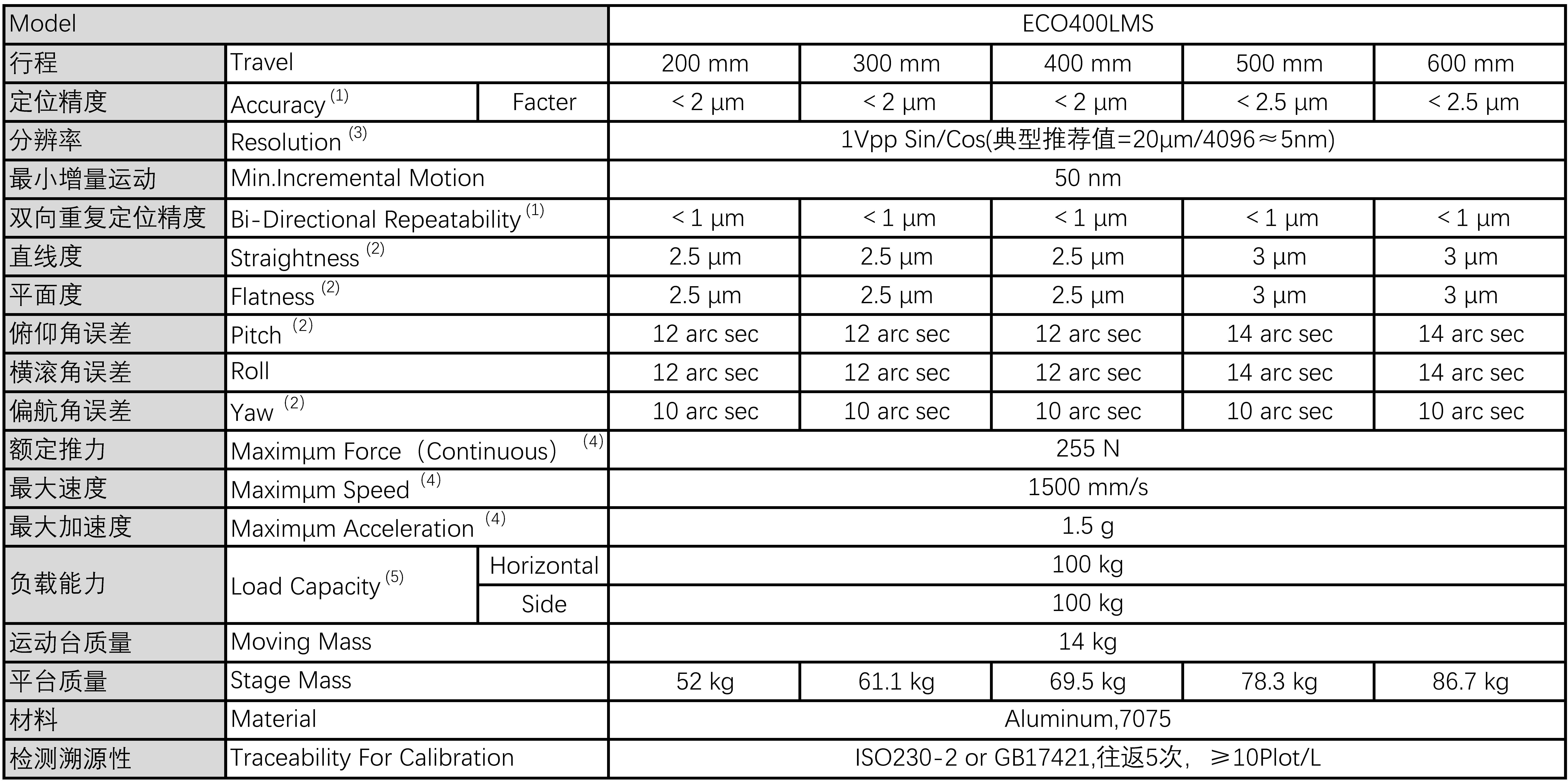

Specifications
| Parameter | Value |
|---|---|
| Min. Incremental Motion | 50nm |
| Yaw | 10 arc secarc sec |
| Maximum Force (Continuous) | 255 N |
| Maximum Speed | 1500 mm/s |
| Maximum Acceleration | 1.5g |
| Moving Mass | 14 kg |
| Traceability For Calibration | ISO230-2 or GB17421.往返5次,≥10Plot/L |
Applications
Key Features
Datasheet
Supplier Information
