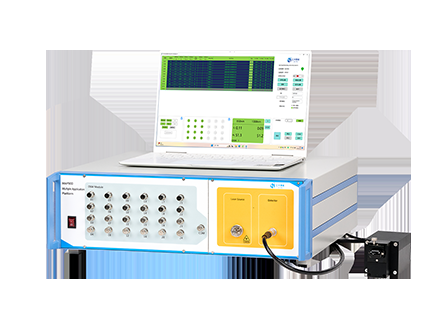

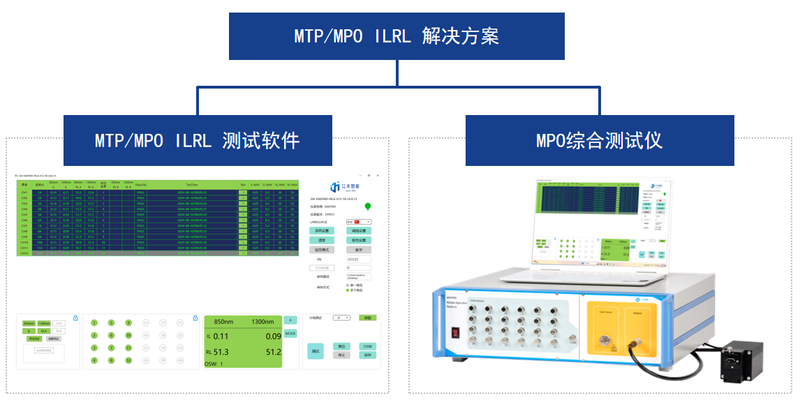

MAP900-IRL Series Multi-Channel Test System
/ Multi-Channel Device, Join-MU MAP900 Device, Tester Module, Module, Module, Multi-Channel
Save to Favorites

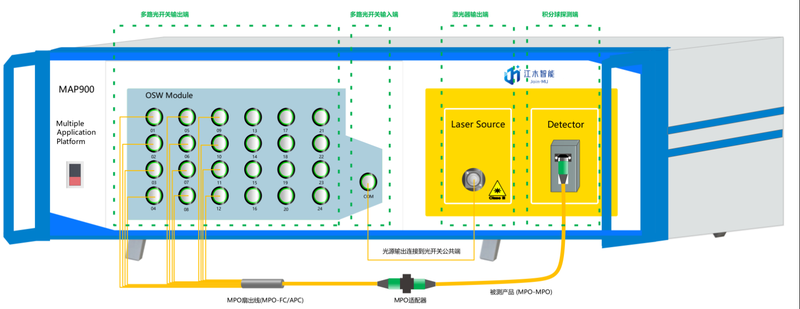

Overview
Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 24 |
| Number of Channels | 48 |
| Number of Channels | 72 |
| Fiber type | Single-Mode 9/125G 1310&1550 |
| Fiber type | Multimode 50/125G 850&1300 |
| Fiber type | Multimode 62.5/125 850&1300 |
| Fiber type | Single-Mode 9/125 1310&1550&1625 |
| Fiber type | Single-Mode 9/125 1310&1490&1550&1625 |
| Optical Power Meter | PD |
| Optical Power Meter | Integrating sphere |
| Optical Power Meter | PD |
| Optical Power Meter | Integrating sphere with an external probe |
| Detector | (InGaAs) |
| Wavelength | 850~1700 nm |
| Power | +20~-55dBm( )/+5~-75dBm(InGaAs PIN) |
| Wavelength | 1310nm &1550nm |
| Light Source | FP Laser |
| Light Source | +0.01dB /15min +0.05dB /8hour |
| Display Accuracy | 0.01dB |
| Wavelength | 850nm &1300nm |
| Light Source | LED |
| Light Source | pulsed FP Laser |
| Return Loss Test Range | 12dB ~80 dB |
| Return Loss Test Accuracy | +1dB (12~65dB) |
| Return Loss Test Range | 12dB~55dB |
| Return Loss Test Accuracy | +1dB (12~45dB) |
| Optical Output Interface | FC/APC |
| Test Efficiency | ≤1S/ ( Wavelength ) |
| Operating System | WINDOWS 10/11 |
| Power | 150W |
| Startup Stabilization Time | 15min |
| Recommended Calibration Interval | 18 |
| Dimensions | 3U450420mm |
| polarity function | none |
| polarity function | have |
| Support type | FC/SC/LC/ST/MPO/MT/FA test |
| linearity | ±0.04dB(+20~-35dBm/integrating sphere)/±0.08dB(-35~-45dBm/integrating sphere)/±0.2dB(-45~-55dBm/integrating sphere) |
| Applicable fiber types | Standard single-mode fiber and multi-mode fiber |
| Circular Flux Standard | Don't pay attention |
| Circular Flux Standard | Complies with IEC-61280-4-1 |
| Return loss standard line | 2~10 meters |
| Cable length | 2 m (end APC) 3 m (end PC) |
| Link test minimum length | 0.7m |
| Cable length | 2000 meters |
| Link testing | Supports simultaneous measurement of return loss at points A and B |
