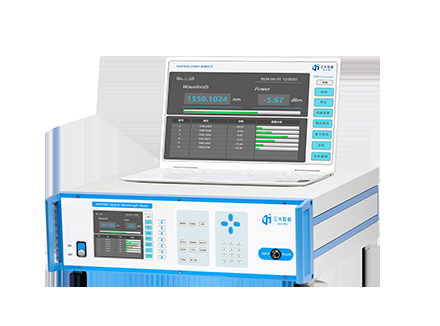

MAP900-OWM Wavelength Wavelength High-Precision
MAP900-OWM Series Wavelength FFT High-Precision, Optical Communication Device Wavelength
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1270~1650nm |
| Wavelength | 0.2ppm(1550nm ±0.3pm) |
| Power | ±0.5dB(1550nm, -10dBm) |
| Long-Range | RS232、RJ45 |
| Dimensions Weight | 425(W)×135(H)×460(D)mm, 10kg |
| Applicable fiber types | Single mode SM(ITU-T G.652) |
| Monitor the duration of transient interruption | 0.0001nm |
| linearity | ±0.3dB(1550nm, ≥-30dBm) |
| polarization dependence | ±0.5dB(1550nm) |
| Return loss | 35dB |
| Measurement time | ≤0.3S (single measurement) |
| interface | USB、RS232、RJ45 |
| Optical connector | FC/PC |
| Power requirements | 100 ~ 240V AC, 50/60Hz, about 100VA |
| environmental conditions | Performance guarantee temperature: 10 ~ 30℃; working temperature: 5 ~ 35℃; storage temperature: -10 ~ +50℃; humidity: 20~85%RH (no condensation) |
| Wavelength | min:5GHz(1550nm 40pm, Power ) |
| Wavelength | max:1024 |
| Power | min:40dBm(1270 ~ 1600nm, 1 ); -30dBm(1600 ~ 1650nm, 1 ); max:+10dBm( Power ) |
| Power | max:+18dBm( Power ) |
